AD8009

PRODUCTION

1 GHz, 5,500 V/µs Low Distortion Amplifier

Data Sheet (Rev. F) Product Selection Table

Part Models: 6
1ku List Price: Starting From $2.09

Viewing:

Overview

Ultrahigh Speed
5,500 V/µs Slew Rate, 4 V Step, G = +2
545 ps Rise Time, 2 V Step, G = +2
Large Signal Bandwidth
440 MHz, G = +2
320 MHz, G = +10
Small Signal Bandwidth (-3 dB)
1 GHz, G = +1
700 MHz, G = +2
Settling Time 10 ns to 0.1%, 2 V Step,
G = +2
High Output Drive
175 mA Output Load Drive
10 dBm with -38 dBc SFDR @ 70 MHz,
G = +10
Low Distortion over Wide Bandwidth
SFDR
-66 dBc @ 20 MHz, Second Harmonic
-75 dBc @ 20 MHz, Third Harmonic
Third Order Intercept (3IP)
26 dBm @ 70 MHz, G = +10
Good Video Specifications
Gain Flatness 0.1 dB to 75 MHz
0.01% Differential Gain Error,
R_L = 150 Ω
0.01° Differential Phase Error,
R_L = 150 Ω
Supply Operation
+5 V to ±5 V Voltage Supply
14 mA (Typ) Supply Current

The AD8009 is an ultrahigh speed current feedback amplifier with a phenomenal 5,500 V/µs slew rate that results in a rise time of 545 ps, making it ideal as a pulse amplifier.

The high slew rate reduces the effect of slew rate limiting and results in the large signal bandwidth of 440 MHz required for high resolution video graphic systems. Signal quality is maintained over a wide bandwidth with worst case distortion of -40 dBc @ 250 MHz (G = +10, 1 V p-p). For applications with multitone signals such as IF signal chains, the third order Intercept (3IP) of 12 dBm is achieved at the same frequency. This distortion performance coupled with the current feedback architecture make the AD8009 a flexible component for a gain stage amplifier in IF/RF signal chains.

The AD8009 is capable of delivering over 175 mA of load current and will drive four back terminated video loads while maintaining low differential gain and phase error of 0.02% & 0.04° respectively. The high drive capability is also reflected in the ability to deliver 10 dBm of output power @ 70 MHz with -38 dBc SFDR.

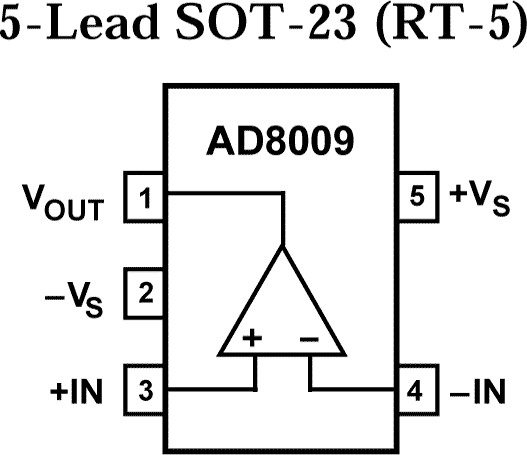

The AD8009 is available in a small SOIC package and will operate over the industrial temperature range -40° C to +85° C. The AD8009 is also available in an SOT-23-5 and will operate over the commercial temperature range of 0°C to 70°C.

An evaluation board is available for this product and may be ordered using the following product number: AD8009-EB.

Part Models: 6
1ku List Price: Starting From $2.09

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8009ACHIPS	none available	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8009ARZ	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8009ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8009ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8009JRTZ-REEL	5-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8009JRTZ-REEL7	5-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products
		Material_Report PCN10_0009_Form SOT23 Qualification Data
AD8009JRTZ-REEL	PRODUCTION
AD8009JRTZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
