AD8000

1.5 GHz, Ultrahigh Speed Op Amp

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
SPICE Model AD8000 SPICE Macro Model Download 4.65 KB
Part Models 4
1ku List Price Starting From $2.00
Features
  • High speed
    • 1.5 GHz, −3 dB bandwidth (G = +1)
    • 650 MHz, full power bandwidth (G = +2, VO = 2 V p-p)
    • Slew rate: 4100 V/μs
    • 0.1% settling time: 12 ns
  • Excellent video specifications
    • 0.1 dB flatness: 170 MHz
    • Differential gain: 0.02%
    • Differential phase: 0.01°
  • Output overdrive recovery: 22 ns
  • Low noise: 1.6 nV/√Hz input voltage noise
  • Low distortion over wide bandwidth
    • 75 dBc SFDR at 20 MHz
    • 62 dBc SFDR at 50 MHz
  • Input offset voltage: 1 mV typical
  • High output current: 100 mA
  • Wide supply voltage range: 4.5 V to 12 V
  • Supply current: 13.5 mA
  • Power-down mode
Additional Details
show more Icon

The AD8000 is an ultrahigh speed, high performance, current feedback amplifier. Using Analog Devices, Inc., proprietary eXtra Fast Complementary Bipolar (XFCB) process, the amplifier can achieve a small signal bandwidth of 1.5 GHz and a slew rate of 4100 V/μs.

The AD8000 has low spurious-free dynamic range (SFDR) of 75 dBc at 20 MHz and input voltage noise of 1.6 nV/√Hz. The AD8000 can drive over 100 mA of load current with minimal distortion. The amplifier can operate on +5 V to ±6 V. These specifications make the AD8000 ideal for a variety of applications, including high speed instrumentation.

With a differential gain of 0.02%, differential phase of 0.01°, and 0.1 dB flatness out to 170 MHz, the AD8000 has excellent video specifications, which ensure that even the most demanding video systems maintain excellent fidelity.

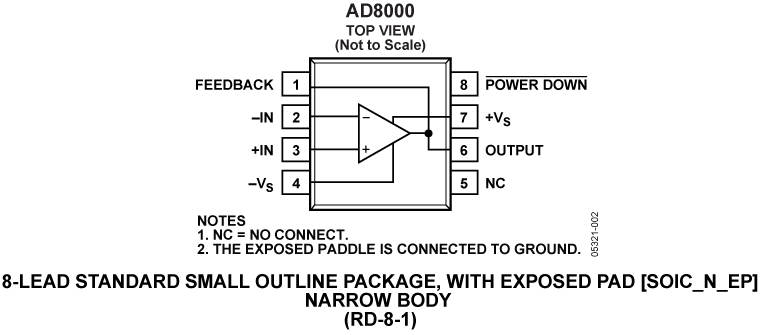

The AD8000 power-down mode reduces the supply current to 1.3 mA. The amplifier is available in a tiny 8-lead LFCSP package, as well as in an 8-lead SOIC package. The AD8000 is rated to work over the extended industrial temperature range (−40°C to +125°C). A triple version of the AD8000 (AD8003) is underdevelopment.

Applications

  • Professional video
  • High speed instrumentation
  • Video switching
  • IF/RF gain stage
  • CCD imaging
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
SPICE Model AD8000 SPICE Macro Model Download 4.65 KB
Part Models 4
1ku List Price Starting From $2.00
