Features
- 16 Bits Resolution with No Missing Codes
- On-board Low Drift Reference with Buffer and Temperature Sensor
- Differential Input Range: ±VREF (VREF up to 2.5V)
- Throughput:
3 MSPS (Wideband Warp and Warp Mode)
2 MSPS (Normal Mode)
1.25 MSPS (Impulse Mode) - INL ±2 LSB Max (±30 ppm of FS)
- SINAD: 89 dB Typ @ 100 kHz
- THD: -103 dB Typ @ 100 kHz
- Parallel (16 or 8 bits bus) and Serial 5 V/3.3 V/2.5 V Interface
- SPI®/QSPI™/MICROWIRE™/DSP Compatible
- No Pipeline Delay ( SAR architecture )
- Single 2.5 V Supply Operation
- Power Dissipation: 70 mW Typ @ 3 MSPS With REF
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

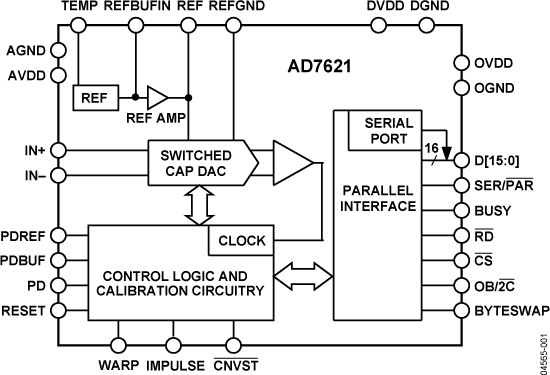

The AD7621 is a 16-bit, 3 MSPS, charge redistribution SAR, fully differential analog-to-digital converter that operates from a single 2.5 V power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports. It features a very high sampling rate mode (Wideband Warp) for undersampling applications and, for asynchronous conversion rate applications, a fast mode (Normal) and, for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput. Operation is specified from −40°C to +85°C.
It is available in a 48-lead LQFP or a 48-lead LFCSP with operation specified from –40°C to +85°C.
PRODUCT HIGHLIGHTS
- Fast Throughput.
The AD7621 is a 3 MSPS, charge redistribution, 16-bit SAR ADC. - Superior Linearity.
The AD7621 has no missing 16-bit code. - Internal Reference.
The AD7621 has a 2.048 V internal reference with a typical drift of ±7 ppm/°C. - Single-Supply Operation.
The AD7621 operates from a 2.5 V single supply and typically dissipates 65 mW. In impulse mode, its power dissipation decreases with the throughput. - Serial or Parallel Interface.
Versatile parallel (16- or 8-bit bus) or 2-wire serial interface arrangement compatible with 2.5 V, 3.3 V, or 5 V logic.
APPLICATIONS
- Medical instruments
- High speed data acquisition
- Digital signal processing
- Communications
- Instrumentation
- Spectrum analysis
- ATE
