AD7383
Dual, Simultaneous Sampling, 16-Bit, 4 MSPS, SAR ADCs, Pseudo Differential Input
Top
Overview
Features and Benefits
- Dual 16-bit/14-bit ADC family
- Dual simultaneous sampling
- Pseudo differential analog inputs
- 4 MSPS throughput conversion rate
- SNR (typical)
- 87.5 dB, VREF = 3.3 V external for 16-bit AD7383
- 83.5 dB, VREF = 3.3 V external for 14-bit AD7384
- 93.4 dB with RES = 1 and OSR = 8
- On-chip oversampling function
- Resolution boost function
- INL error (maximum)
- 2.5 LSBs for 16-bit AD7383
- 1.0 LSB for 14-bit AD7384
- 2.5 V internal reference
- High speed serial interface
- −40°C to +125°C operation
- 16-lead LFCSP, 3 mm × 3 mm
- Alert function
Product Details

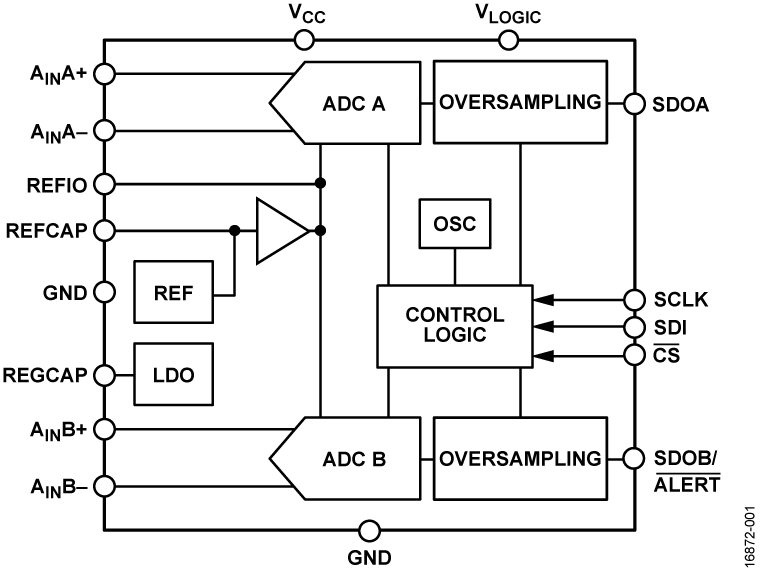

The 16-bit AD7383 and the 14-bit AD7384 are a pin-compatible family of dual simultaneous sampling, high speed, low power, successive approximation register (SAR), analog-to-digital converters (ADCs) that operate from a 3.0 V to 3.6 V power supply and feature throughput rates up to 4 MSPS. The analog input type is pseudo differential and is sampled and converted on the falling edge of CS.
Integrated on-chip oversampling blocks improve dynamic range and reduce noise at lower bandwidths. A buffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used.
The conversion process and data acquisition use standard control inputs that allow simple interfacing to microprocessors or digital signal processors (DSPs). The devices are compatible with 1.8 V, 2.5 V, and 3.3 V interfaces, using a separate logic supply.
The AD7383 and the AD7384 are available in a 16-lead lead frame chip scale package (LFCSP) with operation specified from −40°C to +125°C.
Multifunction pin names may be referenced by their relevant function only.
PRODUCT HIGHLIGHTS
- Dual simultaneous sampling and conversion with two complete ADC functions.
- Pin-compatible product family.
- High 4 MSPS throughput rate.
- Space saving 3 mm × 3 mm LFCSP.
- Integrated oversampling block to increase dynamic range, reduce noise, and reduce SCLK speed requirements.
- Pseudo differential analog inputs.
- Small sampling capacitor reduces amplifier drive burden.
APPLICATIONS
- Motor control position feedback
- Motor control current sense
- Sonar
- Power quality
- Data acquisition systems
- Erbium doped fiber amplifier (EDFA) applications
- I and Q demodulation
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
Fast Reacting, Optical Encoder Feedback System for Miniature Motor Driven Applications4/1/2020 Analog Dialogue
-
High Accuracy Resolver Simulator System with Fault Injection Function8/16/2019 Analog Dialogue
Software & Systems Requirements
Evaluation Software
WIKI
Precision Toolbox for MATLAB
The Precision Toolbox is an evaluation software, made available in MATLAB, that allows configuring and capturing data with ADI’s precision data converters. To get started evaluating with the Precision Toolbox:
Step 1: Setup the evaluation hardware as described in the hardware setup guide.
Step 2: Install the Precision Toolbox and its dependencies. Refer to the Precision Toolbox wiki.
Step 1: Setup the evaluation hardware as described in the hardware setup guide.
Step 2: Install the Precision Toolbox and its dependencies. Refer to the Precision Toolbox wiki.
Device Drivers
Tools & Simulations
Precision ADC Driver Tool
The Precision ADC Driver Tool is a web application that simulates the performance of precision ADC and driver combinations. Potential issues with driver selection, kickback settling, and distortion are flagged, and design tradeoffs can be quickly evaluated. Simulations and calculations include system noise, distortion, and settling of the ADC input
IBIS Models
IBS
AD738x IBIS Model
171.67 K
Product Recommendations
AD7383 Companion Parts
Recommended Driver Amplifiers
- For Precision low power Application: ADA4805-2, ADA4807-2.
- For Precision, low density Application: ADA4940-2.
- For high frequency, low noise, low distortion Application: ADA4896-2.
Recommended Low Dropout Regulators
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD7383BCPZ-RL | Material Declaration | Reliability Data | 16-Lead LFCSP (3mm x 3mm x 0.75mm w/ EP) | |
| AD7383BCPZ-RL7 | Material Declaration | Reliability Data | 16-Lead LFCSP (3mm x 3mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data |
