Overview

Features and Benefits

  • Very low quiescent current
    IQ = 590 nA with 0 µA load
    IQ = 890 nA with 1 µA load
  • Maintains very low quiescent current in dropout (pass through mode):
    IQ_DROP = 720 nA with 0 µA load
    IQ_DROP = 1200 nA with 1 µA load
  • Stable with 1 µF ± 30% ceramic input and output capacitors
  • Maximum load current: ILOAD_MAX: 150 mA
  • Input voltage range: 2.2 V to 5.5 V
  • Low shutdown current: 50 nA typical
  • Low dropout voltage: 120 mV at 150 mA load
  • Initial output voltage accuracy: ±1%
  • Accuracy over line, load, and temperature: ±3.5%
  • 7 fixed output voltage options: 1.2 V to 3.3 V
  • Adjustable output option can be set from 1.2 V to 4.2 V
  • See data sheet for additional features

Product Details

The ADP165 / ADP166 are very low quiescent current, low dropout, linear regulator that operate from 2.2 V to 5.5 V and provides up to 150 mA of output current. The low 120 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range.

The ADP165 / ADP166 are specifically designed for stable operation with a tiny 1 µF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.

The ADP165 / ADP166 are available in seven fixed output voltage options, ranging from 1.2 V to 3.3 V, and an adjustable output option. The ADP165 also include a switched resistor to discharge the output automatically when the LDO is disabled. The ADP166 is identical to the ADP165, but does not include the output discharge function.

Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP165 / ADP166 are available in a tiny 5-lead TSOT, a 6-lead LFCSP and a 4-ball, 0.5 mm pitch WLCSP package for the smallest footprint solution to meet a variety of portable power applications.

APPLICATIONS

  • Portable and battery-powered equipment
  • Post dc-to-dc regulation
  • Portable medical devices
  • Wireless sensor network (WSN) devices

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

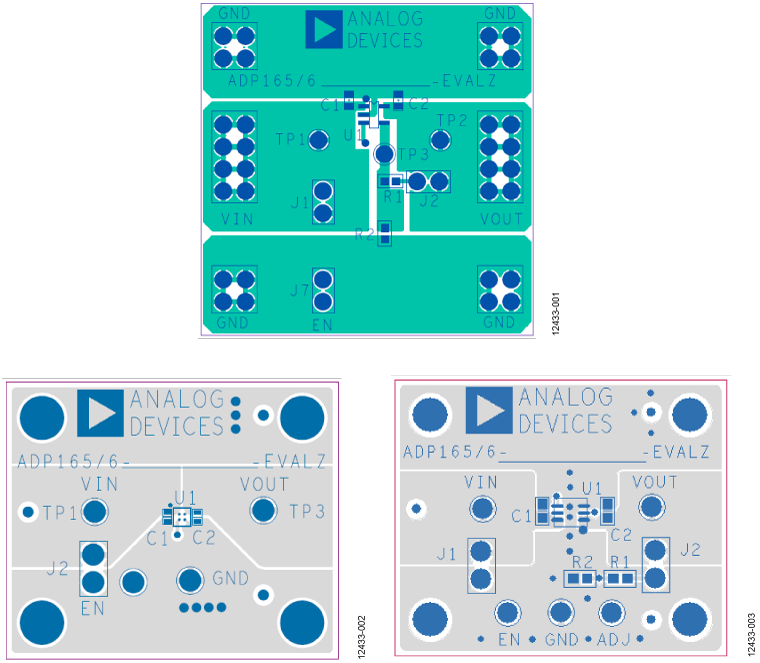

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Application Notes (1)
  • User Guides (1)
  • Solutions Bulletins & Brochures (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    ADP166-1.2
    ADP166-1.8
    ADP166-2.2
    ADP166-2.3
    ADP166-2.85
    ADP166-3.0
    ADP166-3.3
    ADP166-ADJ

    Design Tools

    ADI Linear Regulator Design Tool and Parametric Search

    Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    ADP166ACBZ-1.2-R7 Material Declaration Reliability Data 4-Ball WLCSP (0.965mm x 0.965mm)
    ADP166ACBZ-1.8-R7 Material Declaration Reliability Data 4-Ball WLCSP (0.965mm x 0.965mm)
    ADP166ACBZ-2.2-R7 Material Declaration Reliability Data 4-Ball WLCSP (0.965mm x 0.965mm)
    ADP166ACBZ-2.3-R7 Material Declaration Reliability Data 4-Ball WLCSP (0.965mm x 0.965mm)
    ADP166ACBZ-2.85-R7 Material Declaration Reliability Data 4-Ball WLCSP (0.965mm x 0.965mm)
    ADP166ACBZ-3.0-R7 Material Declaration Reliability Data 4-Ball WLCSP (0.965mm x 0.965mm)
    ADP166ACBZ-3.3-R7 Material Declaration Reliability Data 4-Ball WLCSP (0.965mm x 0.965mm)
    ADP166ACPZN-1.2-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
    ADP166ACPZN-1.8-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
    ADP166ACPZN-2.3-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
    ADP166ACPZN-3.0-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
    ADP166ACPZN-3.3-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
    ADP166ACPZN-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
    ADP166AUJZ-1.2-R7 Material Declaration Reliability Data 5-Lead TSOT
    ADP166AUJZ-1.8-R7 Material Declaration Reliability Data 5-Lead TSOT
    ADP166AUJZ-2.3-R7 Material Declaration Reliability Data 5-Lead TSOT
    ADP166AUJZ-3.0-R7 Material Declaration Reliability Data 5-Lead TSOT
    ADP166AUJZ-3.3-R7 Material Declaration Reliability Data 5-Lead TSOT
    ADP166AUJZ-R7 Material Declaration Reliability Data 5-Lead TSOT
