Features

Pin Compatible with LTC3308(4A) and LTC3309(6A)
High Efficiency: 8mΩ NMOS, 31mΩ PMOS
Programmable Frequency 1MHz to 3MHz

Tiny Inductor and Capacitors

Peak Current Mode Control

22ns Minimum On-Time
Wide Bandwidth, Fast Transient Response

Silent Switcher^® Architecture

Ultralow EMI Emissions

Low Ripple Burst Mode^® Operation with I_Q of 40µA
Safely Tolerates Inductor Saturation in Overload
V_IN Range: 2.25V to 5.5V
V_OUT Range: 0.5V to V_IN
V_OUT Accuracy: ±1% Over Temperature Range
Precision 400mV Enable Threshold, 1µA in Shutdown
Power Good, Internal Compensation and Soft Start
Thermally Enhanced 12-Lead 2mm × 2mm LQFN and 16-Pin 1.64mm × 1.64mm WLCSP Packages
AEC-Q100 Qualified for Automotive Applications

Additional Details

The LTC^®3307A is a very small, high efficiency, low noise, monolithic synchronous 3A step-down DC/DC converter operating from a 2.25V to 5.5V input supply. Using constant frequency, peak current mode control at switching frequencies 1MHz to 3MHz and minimum on-time as low as 22ns, this regulator achieves fast transient response with small external components. Silent Switcher architecture minimizes EMI emissions.

The LTC3307A operates in forced continuous or pulse skip mode for low noise, or low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. Other features include output overvoltage protection, short-circuit protection, thermal shutdown, clock synchronization, and up to 100% duty cycle operation for low dropout. The device is available in a low profile 12-lead 2mm × 2mm × 0.74mm LQFN package with exposed pad for low thermal resistance, and a 16-pin 1.64mm × 1.64mm × 0.5mm WLCSP package.

The LTC3307A operates in forced continuous or pulse skipping mode for low noise, or low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. Other features include output overvoltage protection, short-circuit protection, thermal shut down, clock synchronization, and up to 100% duty cycle operation for low dropout. The device is available in a low profile 12-lead 2mm × 2mm × 0.74mm LQFN package with exposed pad for low thermal resistance, and a 16-pin 1.64mm × 1.64mm × 0.5mm WLCSP package.

For applications that require a faster power-on and transient response, the LTC3307A-1 has reduced power-on time, soft-start time, and higher bandwidth.

Applications

Optical Networking, Servers, Telecom
Automotive, Industrial, Communications
Distributed DC Power Systems (POL)
FPGA, ASIC, µP Core Supplies
Battery Operated Systems

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 19

1ku List Price Starting From $1.08

Documentation

Technical Documents 4

LTC3307A: 5V, 3A Synchronous Step-Down Silent Switcher in 2mm x 2mm LQFN and 1.6mm x 1.6mm WLCSP Data Sheet (Rev.E) 06/20/2024

R523 Reliability Data 03/24/2021

DC2990A - Demo Manual 02/03/2020

DC3122A - Demo Manual (Rev.0) 11/07/2023

Reference Materials 5

Silent Switcher Technology 08/15/2023

Understanding Silent Switcher Technology: High Efficiency, Low EMI eBook 07/14/2023

High Power Density in a Small Form Factor 10/01/2019

Point-of-Load DC-to-DC Converters Solve Voltage Accuracy, Efficiency, and Latency Issues 07/01/2021

Improving Switch-Mode Power Supplies Using Noise Cancelling Technology 03/17/2023

Design Resources 19

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3307AACBZ-R7	CHIPS W/SOLDER BUMPS/WLCSP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AEV#TRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AEV#TRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AEV#WTRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AEV#WTRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AHV#TRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AHV#TRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AHV#WTRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AHV#WTRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AIV#TRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AIV#TRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AIV#WTRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AIV#WTRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AJV#TRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AJV#TRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AJV#WTRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AJV#WTRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AMPV#TRMPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3307AMPV#TRPBF	12-Lead LQFN (2mm x 2mm x 0.74mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC3307AACBZ-R7
Pin/Package Drawing
CHIPS W/SOLDER BUMPS/WLCSP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AEV#TRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AEV#TRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AEV#WTRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AEV#WTRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AHV#TRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AHV#TRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AHV#WTRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AHV#WTRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AIV#TRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AIV#TRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AIV#WTRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AIV#WTRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AJV#TRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AJV#TRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AJV#WTRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AJV#WTRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AMPV#TRMPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3307AMPV#TRPBF
Pin/Package Drawing
12-Lead LQFN (2mm x 2mm x 0.74mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Evaluation Kit

DC2990A

LTC3307A | 5V Input to 1.2V Output at 3A Synchronous Step‑Down Silent Switcher Demo Circuit

Download

DC2990A

LTC3307A | 5V Input to 1.2V Output at 3A Synchronous Step‑Down Silent Switcher Demo Circuit

Buy Now View Details

Product Detail

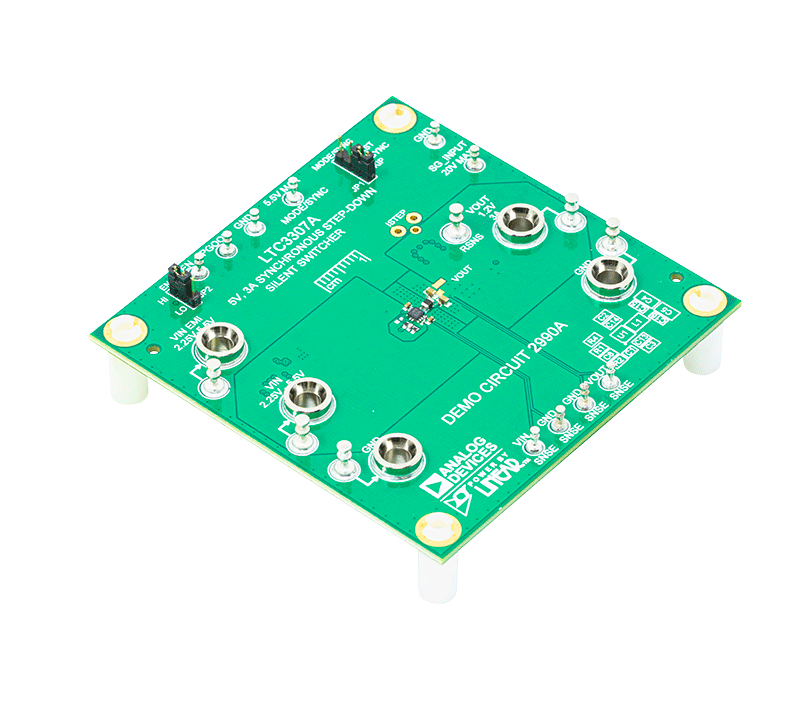

Demonstration circuit 2990A features the LTC3307A 5V, 3A synchronous step-down Silent Switcher^® operating as a 2MHz, 3.3V to 1.2V 3A buck regulator. The LTC3307A supports adjustable output voltages from 0.5V to V_IN with operating frequencies from 1MHz up to 3MHz. The LTC3307A is a compact, ultralow emission, high efficiency, and high speed synchronous monolithic step-down switching regulator. A minimum on-time of 22ns enables high V_IN to low V_OUT conversion ratios at high frequencies.

The DC2990A operating mode may be selected as Burst, Skip or forced continuous (FC) mode. Setting JP1 to the FC/SYNC position will allow the LTC3307A to sync to a clock frequency from 1MHz to 3MHz. The LTC3307A operates in forced continuous mode when syncing to an external clock. The DC2990A is set to a fixed 2MHz frequency by connecting RT to V_IN through a 0Ω resistor, R9. The frequency can be easily changed by removing R9 and setting an appropriate resistor in the R4 location to obtain the desired frequency. Refer to the LTC3307A data sheet for the proper RT value for a desired switching frequency.

The DC2990A also has an EMI filter to reduce conducted EMI. This EMI filter can be included by applying the input voltage at the V_IN EMI terminal. The EMI performance of the board is shown in the EMI Test Results section. The red lines in the EMI performance graphs illustrate the CISPR25 Class 5 peak limits for the conducted and radiated emission tests.

The LTC3307A data sheet gives a complete description of the device, operation and application information. The data sheet must be read in conjunction with this demo manual. The LTC3307A is assembled in a 2mm × 2mm LQFN package with exposed pads for low thermal resistance. The layout recommendations for low EMI operation and maximum thermal performance are available in the data sheet section Low EMI PCB Layout.

The Efficiency vs Load graph shows the efficiency and the power loss of the circuit with a 3.3V input in Burst Mode operation.

Resources

PDF

DC2990A - Demo Manual

1.75 M

ZIP

DC2990A - Design Files

3.92 M

PDF

DC2990A - Schematic

110.52 K

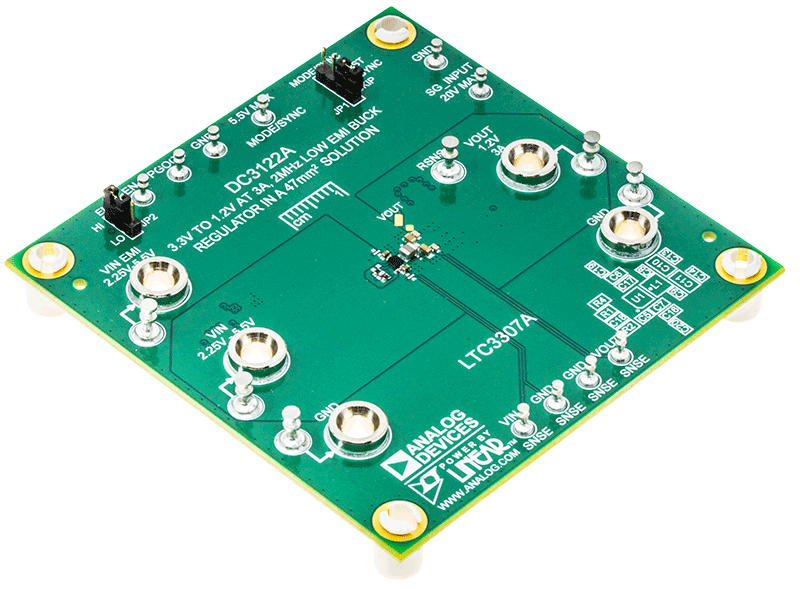

DC3122A

DC3122A

Buy Now View Details

Resources

PDF

DC3122A - Schematic

123.45 K

ZIP

DC3122A - Design Files

3.62 M

PDF

DC3122A - Demo Manual (Rev.0)

1.22 M

DC2990A

LTC3307A | 5V Input to 1.2V Output at 3A Synchronous Step‑Down Silent Switcher Demo Circuit

DC3122A

Tools & Simulations

LTspice 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Lt Spice

LTC3307A - Switching Regulators

1.75 K

LTpowerCAD 1

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

To open the project file for this circuit:

Step 1: Download and install LTpowerCAD on your computer.

Step 2: Click on the link(s) in the section below to download part-specific project files.

Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.

LTpowerCAD download and documentation

Simulation Model

LTpowerCAD

LTC3307A Project - 3-5Vin to 1.2V/3A, 2MHz

Reference Designs

knightrider-zynq-ultrascale

Automotive ASIL-D Compliant Power Delivery Board

Knightrider Zynq Ultrascale +MPSOC Automotive Power Delivery Board - Bottom View

Knightrider Zynq Ultrascale +MPSOC Power Tree

Automotive ASIL-D Compliant Power Delivery Board

Download

knightrider-zynq-ultrascale

Circuits from the lab

Automotive ASIL-D Compliant Power Delivery Board

Features and Benefits

Xilinx Zynq^® UltraScale+™ devices are the industry’s only cost-optimized FPGAs based on an advanced, production-proven 16nm architecture for best-in-class performance/watt.

Analog Devices, Inc. supports ASIL-D compliant automotive power delivery solutions for the Xilinx Zynq UltraScale+ MPSOC. The Knightrider board demonstrates the best-in-class power management supporting ASIL-D compliant solutions for functional safety.

Monolithic solutions are used to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated discrete solutions optimized for cost, efficiency and foot print.

ADI provides supporting documentation including power schematics, layout, LTpowerPlanner^® and applicable LTpowerPlay^® configuration files to enable you to validate the power solution for your application seamlessly.

For a complete list power designs and use cases, please contact your local FAE.

Key Power for full management devices are used as follows:

LT8672
LTC4365
MAX20410
MAX20478
MAX20438
LTC3307
MAX25229
MAX17510

View Detailed Reference Design

Part Used 6

LT8672

LTC4365

MAX20410

MAX20478

LTC3307A

MAX17510

Artix US+ Rail Consolidation – Minimum Rails (AU10P/15P) Power Tree

artix-ultrascale

Minimum Rails for AU10/15P and AU20/25P - Non-Hardware Verified Design

Artix US+ Rail Consolidation - Minimum Rails (AU20P/25P) Power Tree

Minimum Rails for AU10/15P and AU20/25P - Non-Hardware Verified Design

Download

artix-ultrascale

Circuits from the lab

Minimum Rails for AU10/15P and AU20/25P - Non-Hardware Verified Design

Features and Benefits

Xilinx Artix^® UltraScale+^™ devices are the industry’s only cost-optimized FPGAs based on an advanced, production-proven 16nm architecture for best-in-class performance/watt.

Analog Devices, Inc. supports power delivery solutions for the Artix Ultrascale+ low-cost designs. Monolithic solutions are used to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated discrete solutions optimized for cost, efficiency and footprint.

ADI provides supporting documentation including power schematics, layout, LTpowerPlanner^® and applicable LTpowerPlay^® configuration files to enable you to validate the power solution for your application seamlessly.
