Features
- Low noise figure: 1.7 dB typical
- Single positive supply (self biased)
- High gain: 15.5 dB typical
- High OIP3: 34 dBm typical
- 6-lead, 2 mm × 2 mm LFCSP
HMC8411TCPZ-EP Supports defense and aerospace applications (AQEC standard)
- Download the HMC8411TCPZ-EP data sheet (pdf)
- Military temperature range (−55°C to +125°C)
- Controlled manufacturing baseline
- 1 assembly/test site
- 1 fabrication site
- Product change notification
- Qualification data available on request
- V62/19617 DSCC Drawing Number
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

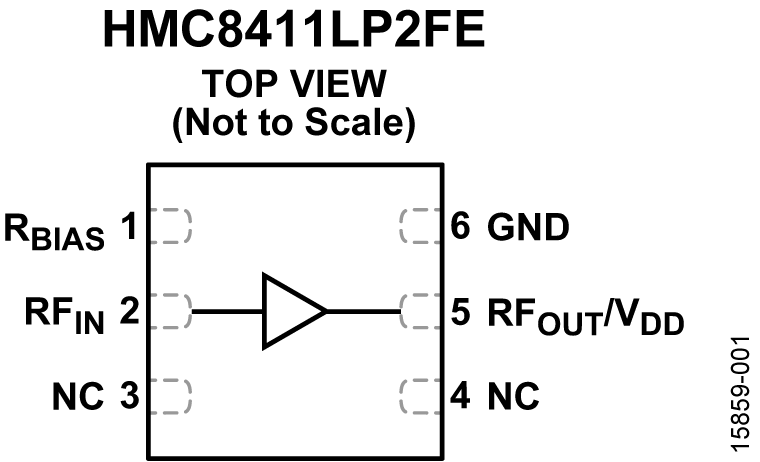

The HMC8411LP2FE is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low noise wideband amplifier that operates from 0.01 GHz to 10 GHz.
The HMC8411LP2FE provides a typical gain of 15.5 dB, a 1.7 dB typical noise figure, and a typical output third-order intercept (OIP3) of 34 dBm, requiring only 55 mA from a 5 V supply voltage. The saturated output power (PSAT) of 19.5 dBm typical enables the low noise amplifier (LNA) to function as a local oscillator (LO) driver for many of Analog Devices, Inc., balanced, in-phase/quadrature (I/Q), or image rejection mixers.
The HMC8411LP2FE also features inputs and outputs that are internally matched to 50 Ω, making the device ideal for surface-mounted technology (SMT)-based, high capacity microwave radio applications.
The HMC8411LP2FE is housed in a RoHS-compliant, 2 mm × 2 mm, 6-lead LFCSP.

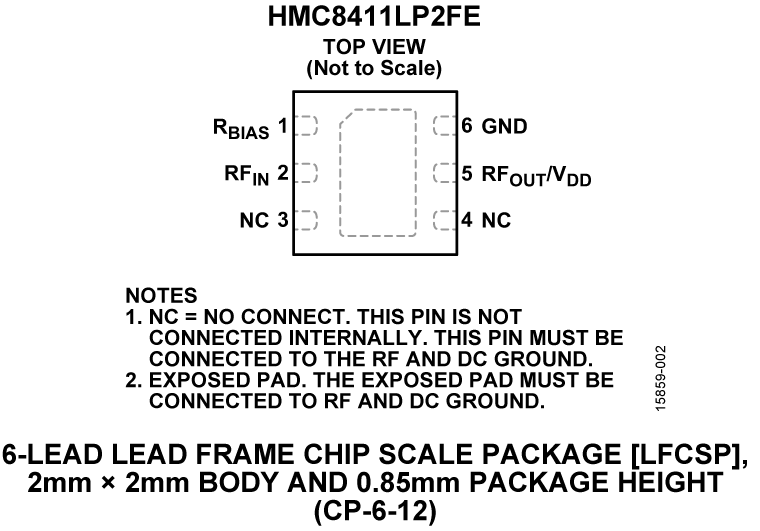

Multifunction pin names may be referenced by their relevant function only.
Applications
- Test instrumentation
- Military communications
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
HMC8411
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Application Note
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
3
Application Note
3
HTML
HTML
HTML
Documentation
Product Selection Guide 1
Webcast 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC8411LP2FE |
6-Lead LFCSP (2mm x 2mm)
|
|
|
| HMC8411LP2FETR |
6-Lead LFCSP (2mm x 2mm)
|
|
|
| HMC8411TCPZ-EP-PT |
6-Lead LFCSP (2mm x 2mm)
|
|
|
| HMC8411TCPZ-EP-R7 |
6-Lead LFCSP (2mm x 2mm)
|
|
- HMC8411LP2FE
- Pin/Package Drawing
-
6-Lead LFCSP (2mm x 2mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- HMC8411LP2FETR
- Pin/Package Drawing
-
6-Lead LFCSP (2mm x 2mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- HMC8411TCPZ-EP-PT
- Pin/Package Drawing
-
6-Lead LFCSP (2mm x 2mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- HMC8411TCPZ-EP-R7
- Pin/Package Drawing
-
6-Lead LFCSP (2mm x 2mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
HMC8411LP2FE
PRODUCTION
HMC8411LP2FETR
PRODUCTION
HMC8411TCPZ-EP-PT
PRODUCTION
HMC8411TCPZ-EP-R7
PRODUCTION
Sep 7, 2022
- 22_0214
HMC8411 Data Sheet Revision
HMC8411LP2FE
PRODUCTION
HMC8411LP2FETR
PRODUCTION
HMC8411TCPZ-EP-PT
PRODUCTION
HMC8411TCPZ-EP-R7
PRODUCTION
Feb 19, 2021
- 20_0367
HMC8410/HMC8411 Data Sheet Revision
HMC8411LP2FE
PRODUCTION
HMC8411LP2FETR
PRODUCTION
HMC8411TCPZ-EP-PT
PRODUCTION
HMC8411TCPZ-EP-R7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
HMC8411LP2FE
PRODUCTION
HMC8411LP2FETR
PRODUCTION
HMC8411TCPZ-EP-PT
PRODUCTION
HMC8411TCPZ-EP-R7
PRODUCTION
Sep 7, 2022
- 22_0214
HMC8411 Data Sheet Revision
HMC8411LP2FE
PRODUCTION
HMC8411LP2FETR
PRODUCTION
HMC8411TCPZ-EP-PT
PRODUCTION
HMC8411TCPZ-EP-R7
PRODUCTION
Feb 19, 2021
- 20_0367
HMC8410/HMC8411 Data Sheet Revision
HMC8411LP2FE
PRODUCTION
HMC8411LP2FETR
PRODUCTION
HMC8411TCPZ-EP-PT
PRODUCTION
HMC8411TCPZ-EP-R7
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 3
QUAD-MxFE Platform
16Tx/16Rx Direct L/S/C-Band Sampled Phased-Array/RADAR/EW/SATCOM Development Platform
Features and Benefits
- Multi-Channel, Wideband System Development Platform Using MxFE
- Mates With Xilinx VCU118 Evaluation Board (Not Included)
- 16x RF Receive (Rx) Channels (32x Digital Rx Channels)
- Total 16x 1.5GSPS to 4GSPS ADC
- 48x Digital Down Converters (DDCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
- 16x Programmable Finite Impulse Response Filters (pFIRs)
- 16x RF Transmit (Tx) Channels (32x Digital Tx Channels)
- Total 16x 3GSPS to 12GSPS DAC
- 48x Digital Up Converters (DUCs) , Each Including Complex Numerically-Controlled Oscillators (NCOs)
- Flexible Rx & Tx RF Front-Ends
- Rx: Filtering, Amplification, Digital Step Attenuation for Gain Control
- Tx: Filtering, Amplification
- On-Board Power Regulation from Single 12V Power Adapter (Included)
- Flexible Clock Distribution
- On-Board Clock Distribution from Single External 500MHz Reference
- Support for External Converter Clock per MxFE
- Mates to Quad-MxFE Digitizing Card & VCU118 PMOD Interface (Cable Included)
- Provides Both Individual Adjacent Channel Loopback and Combined Channel Loopback Options
- Combined Tx Channels Out Via SMA Option
- Combined Rx Channels In Via SMA Option
- On-Board Log Power Detectors With AD5592R Output To VCU118 Over PMOD
- On-Board Power Regulation from Single 12V Power Adapter (Included)
Easy Control Tools and Platform Interfaces to Simplify Software Framework Developments:
- IIO Oscilloscope GUI
- MATLAB Add-Ons & Example Scripts
- Example HDL Builds including JESD204b/JESD204c Bring-Up
- Embedded Software Solutions for Linux and Device Drivers
- MATLAB System Applications GUI
- Multi-Chip Synchronization for Power-Up Phase Determinism
- System-Level Amplitude/Phase Alignment Using NCOs
- Low-Latency ADC-to-DAC Loopback Bypassing JESD Interface
- pFIR Control for Broadband Channel-to-Channel Amplitude/Phase Alignment
- Fast-Frequency Hopping
- Calibration Board MATLAB Driver File
- FPGA Programming MATLAB Script
Product Detail
The Quad-MxFE System Development Platform contains four MxFE™ software defined, direct RF sampling transceivers, as well as associated RF front-ends, clocking, and power circuitry. The target application is phased array radars, electronic warfare, and ground-based SATCOM, specifically a 16 transmit/16 receive channel direct sampling phased array at L/S/C band (0.1 GHz to ~5GHz). The Rx & Tx RF front-end has drop-in configurations that allow for customized frequency ranges, depending on the user’s application.
The Quad-MxFE System Development Platform highlights a complete system solution. It is intended as a testbed for demonstrating multi-chip synchronization as well as the implementation of system level calibrations, beamforming algorithms, and other signal processing algorithms. The system is designed to mate with a VCU118 Evaluation Board from Xilinx®, which features the Virtex® UltraScale+™ XCVU9P FPGA, with provided reference software, HDL code, and MATLAB system-level interfacing.
In addition to the Quad-MxFE Digitizing Card, the kit also contains a 16Tx / 16Rx Calibration Board that is used to develop system-level calibration algorithms, or otherwise more easily demonstrate power-up phase determinism in situations pertinent to their own use case. The Calibration Board also allows the user to demonstrate combined-channel dynamic range, spurious, and phase noise improvements and can also be controlled via a free MATLAB add-on when connected to the PMOD interface of the VCU118.
The system can be used to enable quick time-to-market development programs for applications like:
- ADEF (Phased-Array, RADAR, EW, SATCOM)
- Communications Infrastructure (Multiband 5G and mmWave 5G)
- Electronic Test and Measurement
Resources
X-Band Phased Array Platform
Scalable 32 Element Hybrid Beamforming Phased-Array RADAR Development Platform
Features and Benefits
- 32 Channel Analog Phased Array Prototyping Platform
- 8x ADAR1000 Analog Phased Array Beamforming ICs
- 32x ADTR Transmit/Receive ICs
- RF In, RF Out Design
- Individual RFIO for each BFIC
- 10 GHz Lattice Spacing
- Stand-Alone RF Detector/ADC Combo for Calibration
- PMOD and SDP Connectors for Programming
- On-Board Power Regulation from Single 12V Power Adapter (Included)
XUD1A X/C Band Up/Down Converter
- X Band (RF) to C Band (IF) up/down converter
- 4 TX/RX RF Input/Output via SMA
- 4 TX IF Inputs via SMPM
- 4 RX IF Output via SMPM
- External LO or Internal PLL Options
- PMOD Connector for Programming
- Interposer Board via PMOD to allow SDP and FMC Connectors for Programming
- On-Board Power Regulation from Single 12V Power Adapter (Included)
MxFE Evaluation Board
- Mates with Xilinx ZCU102 Evaluation Board (Not Included)
- 4x RF Receive (Rx) Channels (8x Digital Rx Channels)
- Total 4x 12-bit 4GSPS ADC
- 8x Digital Down Converters (DDCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
- 8x Programmable Finite Impulse Response Filters (pFIRs)
- 4x RF Transmit (Tx) Channels (8x Digital Tx Channels)
- Total 4x 16-bit 12GSPS DAC
- 8x Digital Up Converters (DUCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
- Flexible Clock Distribution
- On-Board Clock Distribution from Single External 500MHz Reference
- Support for External Converter Clock
- On-Board Power Regulation Powered by ZCU102 Evaluation Board via FMC Connector
Software Features and Benefits
Easy Control Tools and Platform Interfaces to Simplify Software Framework Developments:
- MATLAB System Applications GUI
- Example HDL Builds including JESD204b/JESD204c Bring-Up
- Embedded Software Solutions for Linux and Device Drivers
Software Reference Design Examples for ADEF Applications to Reduce Prototyping Time:
- Hybrid Beamsteering Capability
- System Phase Calibration
Product Detail
The X-Band Development Platform contains one MxFE® software defined, direct RF sampling transceivers, X-Band to C-Band Up/Down Converter, and a X/Ku Band analog phased array proto-typing platform. The target application is phased array radars, electronic warfare, and ground-based SATCOM, specifically a X Band 32 transmit/32 receive channel hybrid beamforming phased array radar.
The X-Band Development Platform highlights a complete system solution. It is intended as a testbed for demonstrating hybrid beamforming phased array radar as well as the implementation of system level calibrations, beamforming algorithms, and other signal processing algorithms. The system is designed to mate with a ZCU102 Evaluation Board from Xilinx®, which features the Zynq® UltraScale+™ MPSoC FPGA, with provided reference software, HDL code, and MATLAB system-level interfacing software.
The system can be used to enable quick time-to-market development programs for applications like:
- ADEF (Phased-Array, RADAR, EW, SATCOM)
- Hybrid Beamforming
- Electronic Test and Measurement
Resources
EVAL-HMC8411
HMC8411 Evaluation Board
Product Detail

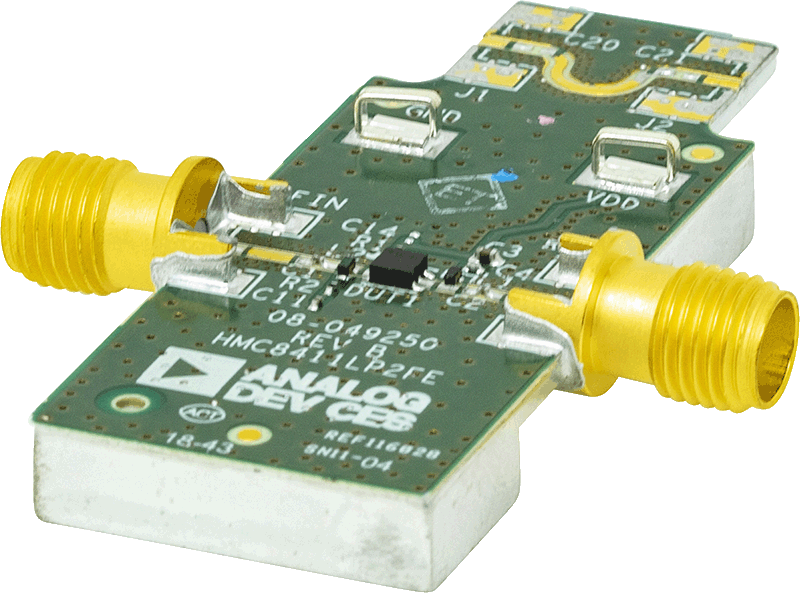

The EV1HMC8411LP2F evaluation board is a 2-layer board fabricated using Rogers 4350 and using best practices for high frequency RF design. The RF input and RF output traces have a 50 Ω characteristic impedance.
The evaluation board and populated components are designed to operate over the ambient temperature range of −40°C to +85°C. For proper bias sequence, see the Applications Information section of the data sheet.
A fully populated and tested evaluation board is available from Analog Devices, Inc., upon request.
Resources
