HMC329

Obsolete

HMC329 / HMC329LC3B / HMC329LM3

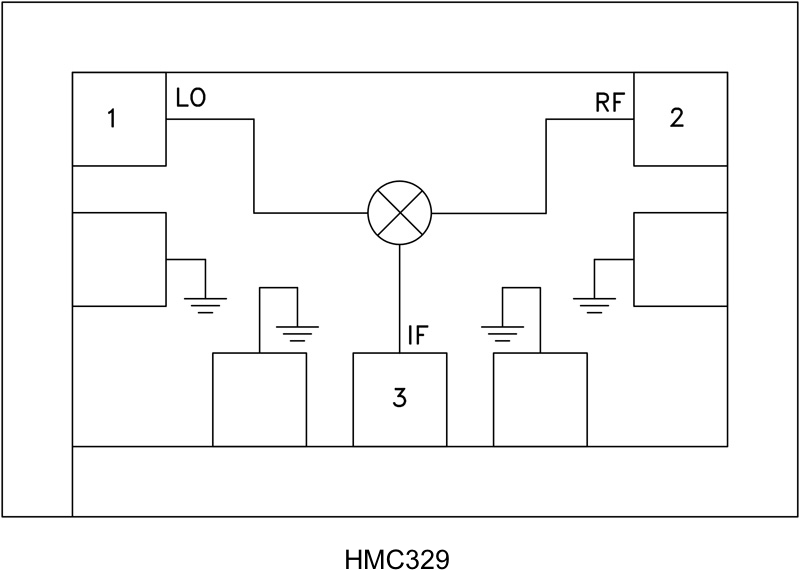

HMC329: GaAs monolithic microwave integrated circuit (MMIC) double-balanced mixer chip, 25 GHz to 40 GHz

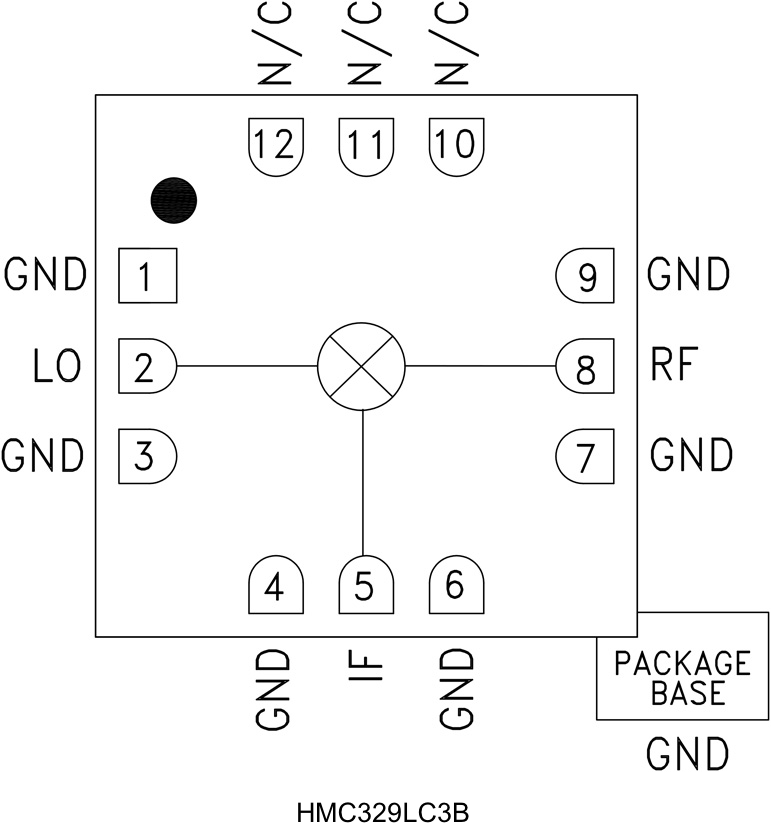

HMC329LC3B: GaAs MMIC fundamental mixer surface mount technology (SMT), 24 GHz to 32 GHz

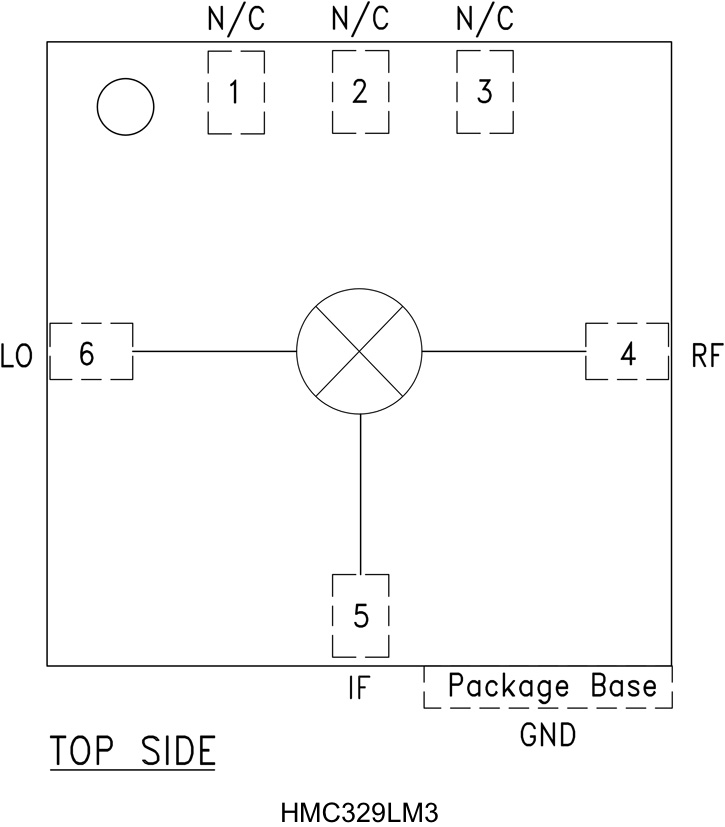

HMC329LM3: GaAs MMIC double-balanced mixer SMT, 26 GHz to 40 GHz

Data Sheet Product Selection Table

Part Models: 6
1ku List Price: price unavailable

Viewing:

Overview

Passive: no dc bias required
Input IP3
HMC329: 19 dBm
HMC329LC3B: 18 dBm
HMC329LM3: 19 dBm
Local oscillator (LO) to radio frequency (RF) isolation
HMC329: 42 dB
HMC329LC3B: 38 dBm
HMC329LM3: 35 dBm
Small size (HMC329): 0.85 mm × 0.55 mm × 0.1 mm

Wide intermediate frequency (IF) bandwidth (HMC329LC3B): dc to 8 GHz
Robust 500 V electrostatic discharge (ESD), Class 1B (HMC329LC3B)
12-Lead ceramic 3 mm × 3 mm SMT package (HMC329LC3B): 9 mm2
Leadless SMT package, 25 mm2 (HMC329LM3)

The HMC329 devices are double-balanced MMIC mixers that are available in a chip (HMC329), a leadless RoHS compliant SMT package (HMC329LC3B), and an SMT leadless chip carrier package (HMC329LM3). The HMC329 devices can be used as an upconverter or downconverter. On the HMC329, the mixer is used as an upconverter or downcnverter in a small chip area of 0.85 mm × 0.55 mm. Excellent isolations are provided by on-chip baluns, and the chip requires no external components and no dc bias. Measurements for the HMC329 were made with the chip mounted and ribbon bonded into in a 50 Ω microstrip test fixture that contains 5 mil alumina substrates between the chip and K connectors. Measured data includes the parasitic effects of the assembly. RF connections to the chip were made with 0.076 mm (3 mil) ribbon bond with minimal length less than 0.31 mm (<12 mil).

Applications

Microwave point-to-point radios
Point-to-point radios
Point-to-multipoint radios and very small aperture terminal (VSAT)
Local multipoint distribution systems (LMDS)
Satellite communications (SATCOM)
Test equipment and sensors
Military end use
RADAR

Alternative Part 3 See All

GaAs, MMIC, Double Balanced Mixer, 24 - 32 GHz

22 GHz to 38 GHz, GaAs, MMIC, Double Balanced Mixer

Part Models: 6
1ku List Price: price unavailable

Documentation

Data Sheet 3

HMC329 Die Data Sheet 04/14/2015

HMC329LM3 Data Sheet 04/14/2015

HMC329LC3B Data Sheet 04/14/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC329	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC329LC3B	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC329LC3BTR	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC329LC3BTR-R5	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC329LM3	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC329LM3TR	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 24, 2017 - 17_0100 Change in Moisture Sensitivity Level for LM1 and LM3 Packages
		PCN17_0100_Form Material_Report
HMC329LM3	Obsolete
HMC329LM3TR	Obsolete
Jan 11, 2017 - 16_0010 Discontinuance of Select RF and Microwave Products
		PDN16_0010_Form Material_Report
HMC329
HMC329LC3B
HMC329LC3BTR
HMC329LC3BTR-R5	Obsolete
HMC329LM3	Obsolete
HMC329LM3TR	Obsolete

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
HMC329ALC3B		GaAs, MMIC, Double Balanced Mixer, 24 - 32 GHz
HMC329A-Die		22 GHz to 38 GHz, GaAs, MMIC, Double Balanced Mixer
HMC1106	RECOMMENDED FOR NEW DESIGNS	GaAs MMIC Mixer, 15 - 36 GHz
