HMC329ALC3B

GaAs, MMIC, Double Balanced Mixer, 24 - 32 GHz

PRODUCTION

HMC329ALC3B Functional Block Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price

price unavailable

Features

Conversion loss (downconverter): 11 dB typical
LO to RF isolation: 36.5 dB typical for 24 GHz to 30 GHz performance
Input IP3 (downconverter): 20 dBm typical
12-terminal, RoHS compliant, 3 mm × 3 mm LCC package

Additional Details

The HMC329ALC3B is a general-purpose, double balanced mixer in a leadless, RoHS compliant, surface-mount technology (SMT) package that can be used as an upconverter or down-converter between 24 GHz and 32 GHz. This mixer is fabricated in a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC) process and requires no external components or matching circuitry. The HMC329ALC3B provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) suppression due to optimized balun preliminary structures. The mixer operates with LO amplitude above 9 dBm. The RoHS compliant HMC329ALC3B eliminates the need for wire bonding, allowing the use of surface-mount manufacturing techniques.

Applications

Microwave and very small aperture terminal (VSAT) radios
Test equipment
Military electronic warfare (EW)
Electronic countermeasure (ECM)
Command, control, communications, and intelligence (C3I)

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price

price unavailable

Technical Documents 1

HMC329ALC3B: GaAs, MMIC, Double Balanced Mixer, 24 - 32 GHz Data Sheet (Rev.0) 01/22/2016

Reference Materials 1

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Design Resources 3

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC329ALC3B	12-Lead LCC (2.9mm x 2.9mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC329ALC3BTR	12-Lead LCC (2.9mm x 2.9mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC329ALC3BTR-R5	12-Lead LCC (2.9mm x 2.9mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

HMC329ALC3B
Pin/Package Drawing
12-Lead LCC (2.9mm x 2.9mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC329ALC3BTR
Pin/Package Drawing
12-Lead LCC (2.9mm x 2.9mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC329ALC3BTR-R5
Pin/Package Drawing
12-Lead LCC (2.9mm x 2.9mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

EVAL-HMC329ALC3B

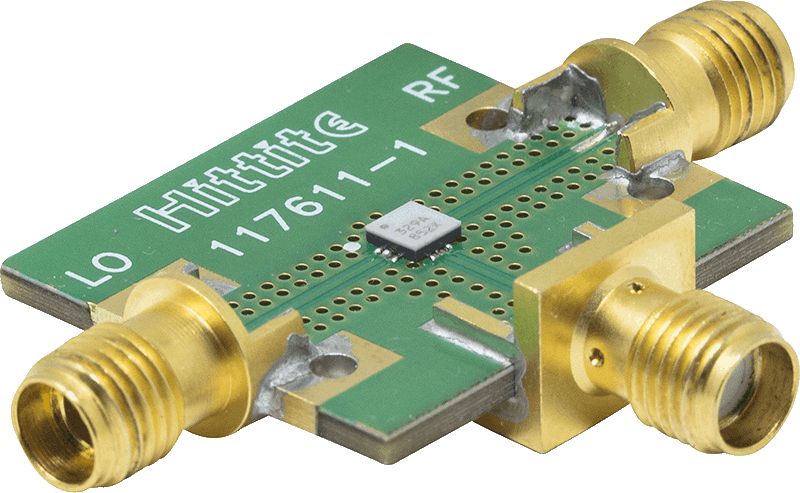

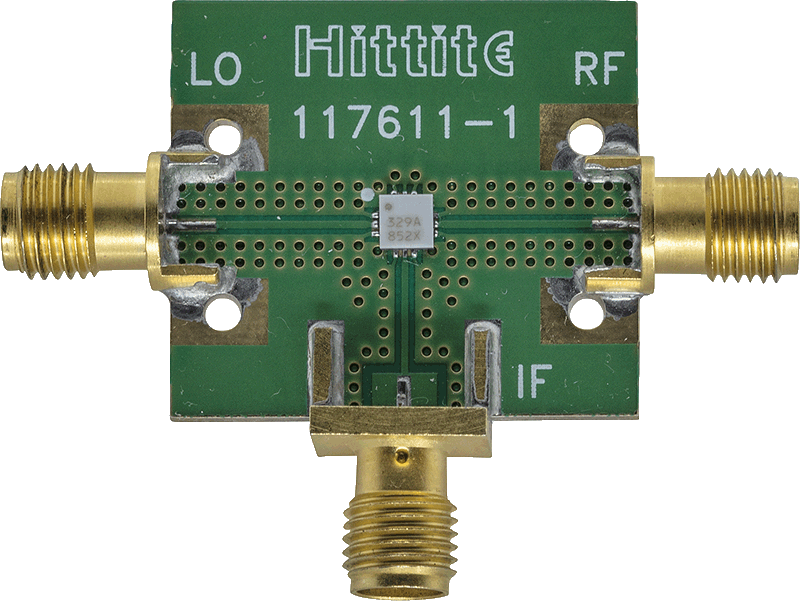

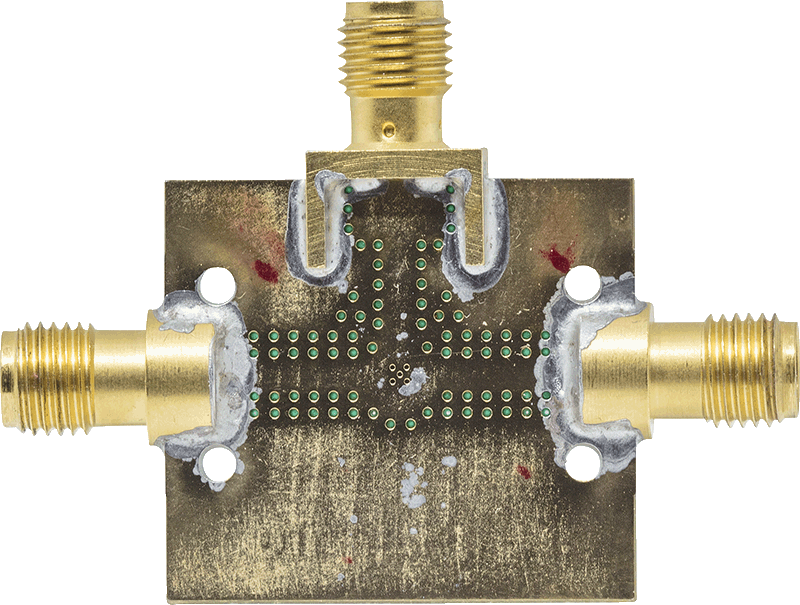

HMC329ALC3B Evaluation Board

HMC329ALC3B Evaluation Board

Download

EVAL-HMC329ALC3B

HMC329ALC3B Evaluation Board

Buy Now View Details

Product Detail

This page contains ordering information for evaluating the HMC329ALC3B.

Resources

ZIP

Land Pattern and POD

63.15 K

ZIP

Land Pattern and Solder Stencil

40.99 K

EVAL-HMC329ALC3B

HMC329ALC3B Evaluation Board

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool
