Features and Benefits

  • Downconverter
    • Conversion loss
      • 9 dB typical for 22 GHz to 29 GHz
      • 11 dB typical for 29 GHz to 38 GHz
    • LO to RF isolation
      • 37 dB typical for 22 GHz to 29 GHz
      • 36 dB typical for 29 GHz to 38 GHz
    • LO to IF isolation
      • 30 dB typical for 22 GHz to 29 GHz
      • 27 dB typical for 29 GHz to 38 GHz
    • RF to IF isolation
      • 31 dB typical for 22 GHz to 29 GHz
      • 34 dB typical for 29 GHz to 38 GHz
    • Input IP3
      • 17 dBm typical for 22 GHz to 29 GHz
      • 21 dBm typical for 29 GHz to 38 GHz
  • IF range
    • DC to 8 GHz
  • Passive, no dc bias required
  • Small size
    • 0.87 × 0.58 × 0.102 mm

Product Details

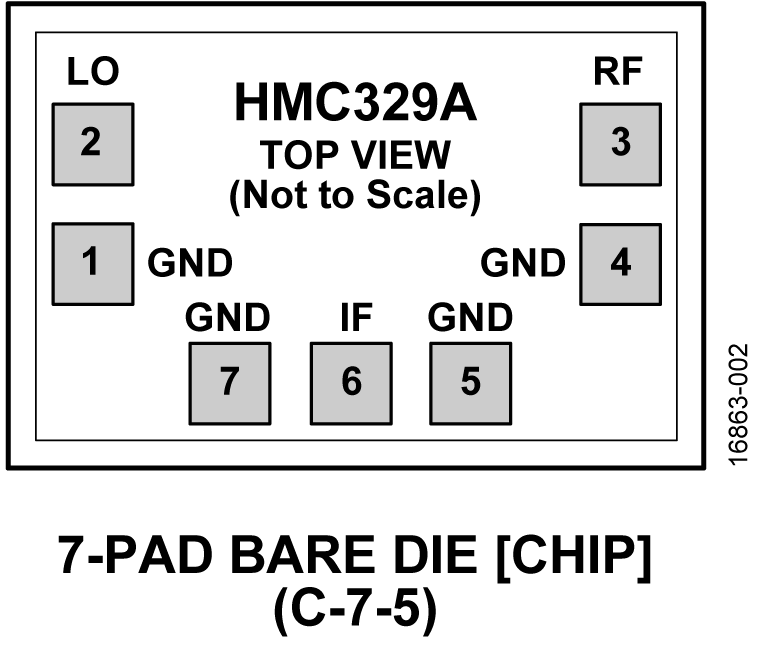

The HMC329A chip is a general-purpose, double balanced mixer that can be used as an upconverter or downconverter from 22 GHz to 38 GHz in a small chip area of 0.87 mm × 0.58 mm. This mixer requires no external component or matching circuitry. The HMC329A provides excellent local oscillation (LO) to radio frequency (RF) and LO to intermediate frequency (IF) suppression due to optimized balun structures. The mixer operates with LO drive levels at 13 dBm or above.


  • Point to point radios
  • Point to multipoint radios and very small aperture terminal (VSAT) radios
  • Test equipment and sensors
  • Military end use
