Overview
Features and Benefits
- Nonreflective 50 Ω design
- Low insertion loss
- 1.5 dB typical to 6 GHz
- 2.5 dB typical to 12 GHz
- High isolation
- 50 dB typical to 6 GHz
- 45 dB typical to 12 GHz
- High input linearity
- P0.1dB: 28 dBm typical at VCTRL = −5 V
- P1dB: 30 dBm typical at VCTRL = −5 V
- IP3: 48 dBm
- High power handling
- 30 dBm insertion loss path
- 27 dBm hot switching
- Negative control voltage: −7 V to −3 V
- ESD rating: 250 V (Class 1A) HBM
- No low frequency spurious
- 24-lead, 4 mm × 4 mm LFCSP
Product Details

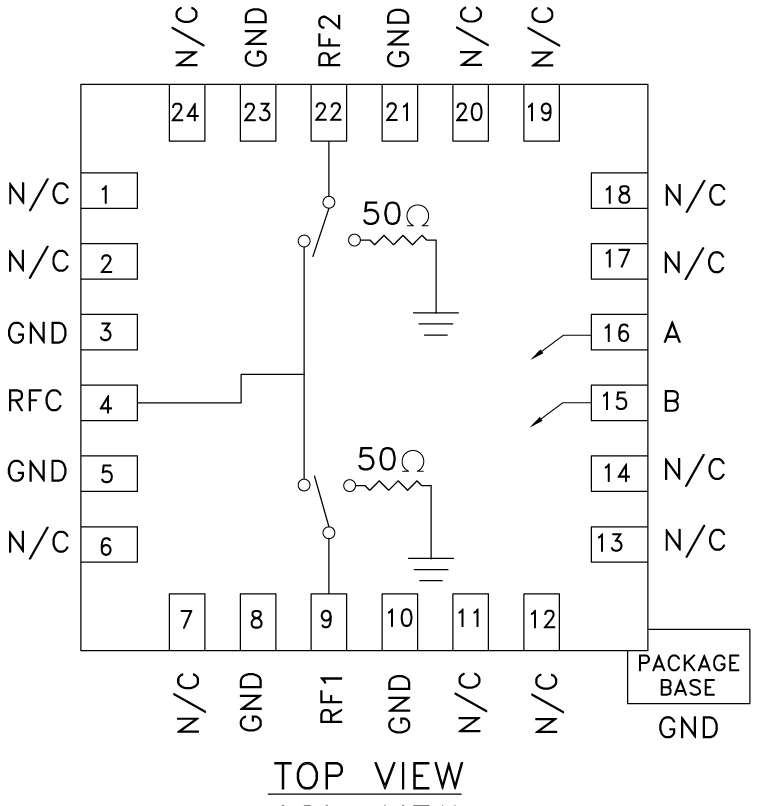

The HMC232A is a nonreflective, SPDT, RF switch manufactured in the gallium arsenide (GaAs) process.
The HMC232A operates from 100 MHz to 12 GHz with better than 1.5 dB insertion loss and 50 dB of isolation at 6 GHz and better than 2.5 dB insertion loss and 45 dB of isolation at 12 GHz. The HMC232A has a nonreflective design, and the RF ports are internally terminated to 50 Ω.
The HMC232A switch operates using complementary negative control voltage logic lines of −7 V to −3 V and requires no bias supply.
The HMC232A comes in a 24-lead, 4 mm × 4 mm LFCSP and operates from −40°C to +85°C.
APPLICATIONS
- Test instrumentation
- Microwave radios and very small aperture terminals (VSATs)
- Military radios, radars, and electronic counter measures (ECMs)
- Telecommunication infrastructure
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
