ADMV1355

RECOMMENDED FOR NEW DESIGNS

17.7GHz to 55GHz, Wideband, Microwave Upconverter

Viewing:

Overview

  • Wideband RF output frequency range: 17.7GHz to 55GHz
  • Integrated RF chain features
    • Tunable sideband rejection filters
    • Gain control DSAs
  • Integrated LO chain features
    • Input frequency range: 8.85GHz to 27.5GHz
    • Internal 2× multiplier
    • Tunable LO harmonic rejection filter
    • I/Q phase correction
  • Three frequency translation modes
    • Baseband I/Q differential input: DC to 12GHz
    • IF hybrid input: 8GHz to 12GHz
    • Complex IF input: 1GHz to 12GHz
  • Programmable features
    • Sideband rejection optimization
    • LO carrier feedthrough calibration
  • Simple SPI: 3-wire or 4-wire
  • General-purpose logic outputs for integration with other chips in a system
  • LUT logic inputs for fast frequency hopping applications
  • 120-ball, 6mm × 6.5mm, CSP_BGA package

The ADMV1355 is a highly integrated microwave upconverter optimized for wideband radio designs operating in the 17.7GHz to 55GHz RF range. Provides a compact alternative to traditional multichip solutions, significantly reducing system size, weight, and power consumption.

The integrated local oscillator (LO) signal chain accepts LO input signals in the 8.85GHz to 27.5GHz range. In the LO signal chain, there are internal amplifiers, a 2× frequency multiplier, programmable harmonic-reject filter, and phase-adjust circuitry that generates the necessary 17.7GHz to 55GHz signal to drive the inphase/quadrature (I/Q) mixer.

The ADMV1355 offers three frequency translation mixer modes: IF hybrid input, complex IF input, and baseband I/Q differential input. The IF hybrid input mode utilizes one intermediate frequency (IF) input signal in the 8GHz to 12GHz range, which then passes through an on-chip 90° IF hybrid. The IF hybrid coupler produces the necessary quadrature signals for the mixer. The complex IF input mode utilizes two quadrature IF input signals in the 1GHz to 12GHz range. The baseband I/Q differential input mode utilizes differential baseband I/Q input signals from DC to 12GHz.

Immediately following the mixer are two, switch-selectable RF output driver signal chains. The low band signal chain operates from 17.7GHz to 34GHz, and the high band signal chain operates from 30GHz to 55GHz. Each signal chain has multiple stages of signal level control and harmonic filtering.

Please see the Data Sheet for the full description.

For information regarding commercial space low (CSL) or commercial space high (CSH) qualified versions of the ADMV1355, contact space@analog.com

APPLICATIONS

  • Satellite payload1 and ground stations (SATCOM)
  • Wideband radar and electronic warfare systems (EW)
  • Instrumentation and automatic test equipment (ATE)
  • Millimeter-wave 5G and 6G testers

ADMV1355
17.7GHz to 55GHz, Wideband, Microwave Upconverter

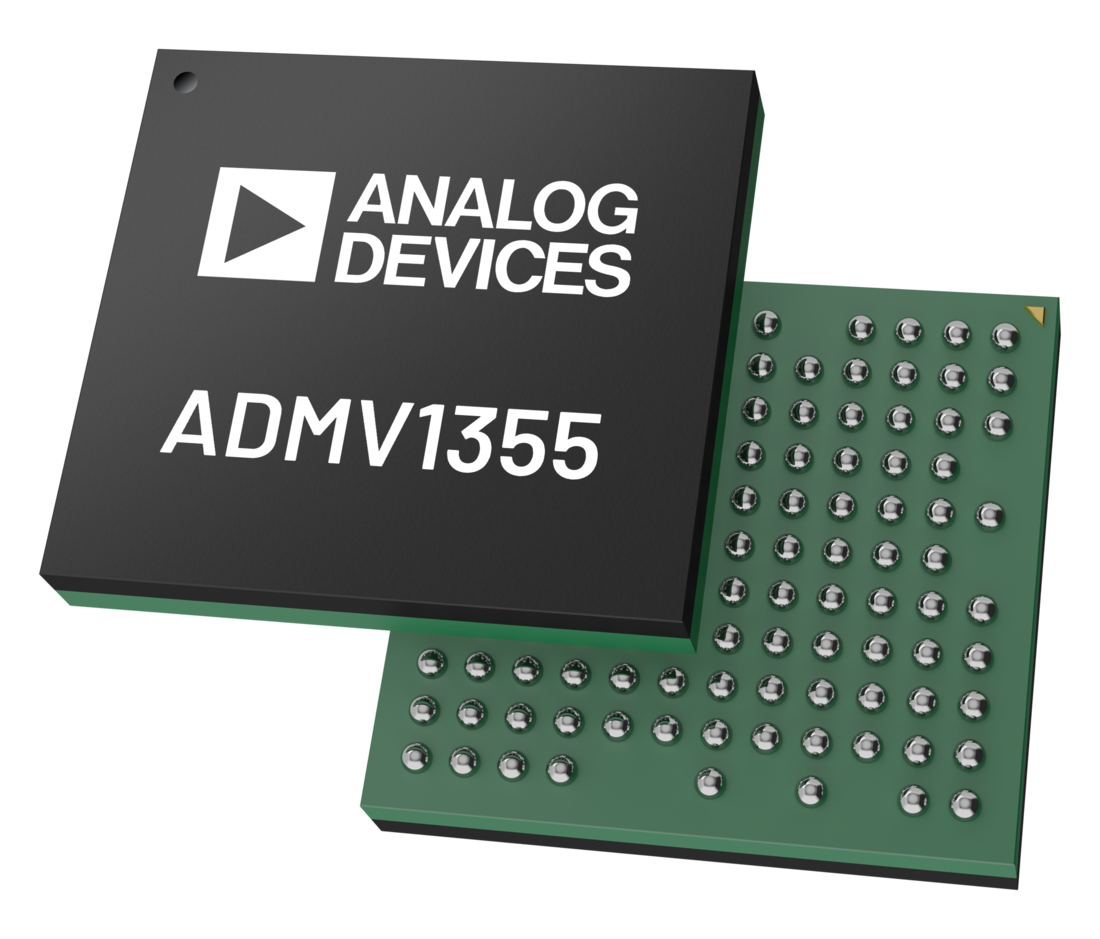

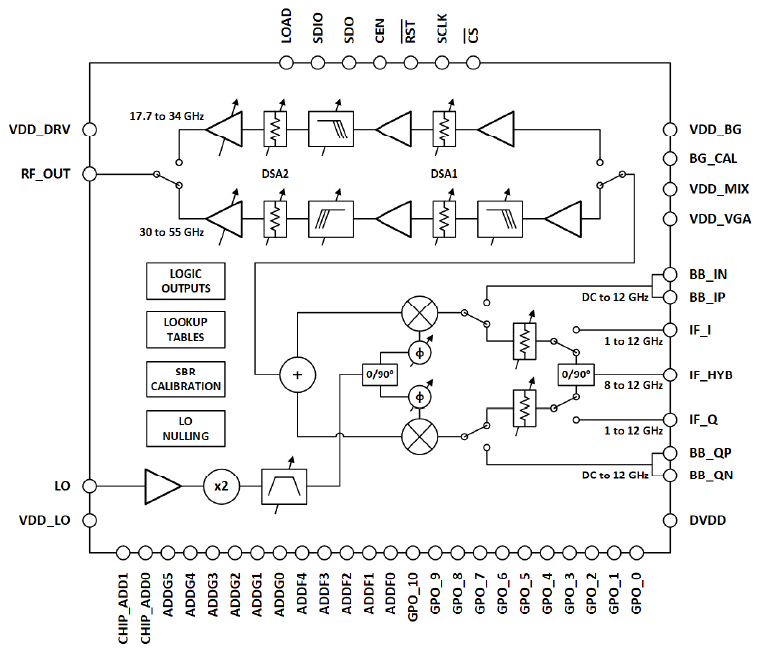

ADMV1355 Functional Block Diagram ADMV1355 Pin Configuration ADMV1355 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Request an NDA

For information regarding commercial space low (CSL) or commercial space high (CSH) qualified versions of the ADMV1355, contact space@analog.com

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Evaluation Kits

eval board
EVAL-ADMV1355

Evaluating the ADMV1355 17.7GHz to 55GHz, Wideband, Microwave Upconverter

Features and Benefits

Product Details

The ADMV1355-EVALZ is available for evaluating the ADMV1355 wideband microwave up-converter. The ADMV1355-EVALZ incorporates the ADMV1355 chip, as well as a power regulator and an interface to the EVAL-SDP-CS1Z (SDP-S) system demonstration platform (SDP) controller board to allow simple and efficient evaluation. The power regulator allows the ADMV1355 to be powered by a 5V USB-C adapter or by using a 5V external power supply.

The ADMV1355 is a highly integrated wideband, microwave up-converter for wideband radio designs operating in the 17.7GHz to 55GHz frequency range. The chip can be programmed using a 4‑wire serial peripheral interface (SPI). The SDP-S controller board allows the user to interface with the ADMV1355 SPI through the ACE Software.

For full details on the ADMV1355, see the ADMV1355 data sheet, which must be consulted in conjunction with this user guide when using the ADMV1355-EVALZ.

EVAL-ADMV1355
Evaluating the ADMV1355 17.7GHz to 55GHz, Wideband, Microwave Upconverter

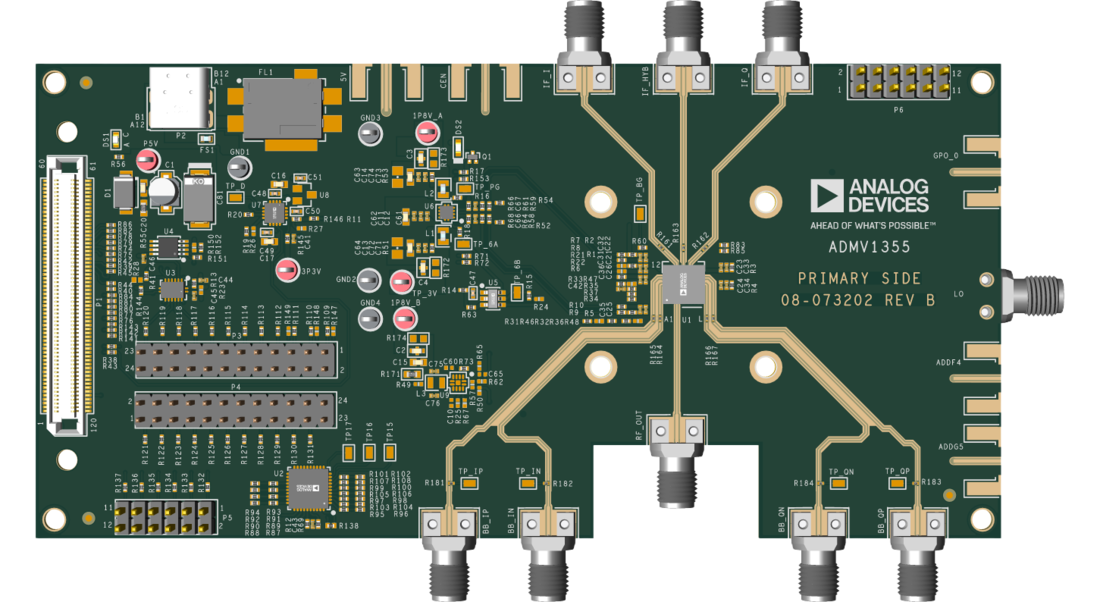

EVAL-ADMV1355 Evaluation Board Angle View EVAL-ADMV1355 Evaluation Board Top View EVAL-ADMV1355 Evaluation Board Bottom View
