ADL5569

RECOMMENDED FOR NEW DESIGNS

6.5 GHz, Ultrahigh Dynamic Range, Differential Amplifier

Data Sheet (Rev. C) Product Selection Table

Part Models: 2
1ku List Price: Starting From $21.30

Viewing:

Overview

−3 dB bandwidth: 6.5 GHz typical
Internally dc-coupled inputs and outputs
Low noise input stage: 9.3 dB noise figure at 2 GHz
Low distortion at 5 V supply and 2 V_P-P output with 100 Ω load
- 500 MHz: −78 dBc (HD2), −71 dBc (HD3), −80 dBc (IMD3)
- 2 GHz: −64 dBc (HD2), −52 dBc (HD3), −65 dBc (IMD3)

Preset 20 dB voltage gain, can be reduced by adding external resistors
Differential or single-ended input to differential output
Input voltage noise (NSD, RTI): 1.0 nV/√Hz at 100 MHz
Single-supply operation: ac-coupled applications
Dual-supply operation: dc-coupled applications
Slew rate: 24 V/ns at 2 V_P-P output
DC power consumption: 86 mA per amplifier at 5 V

The ADL5569 is a high performance, dual, differential amplifier with 20 dB of voltage gain, optimized for applications spanning from dc to 6.5 GHz. The amplifier is available in a dual format, and it offers a low referred to input (RTI) noise spectral density (NSD) of 1.0 nV/√Hz (at 100 MHz) and excellent distortion performance over a wide frequency range, making it an ideal driver for high speed 12-bit to 16-bit analog-to-digital converters (ADCs). The ADL5569 is ideally suited for use in high performance zero intermediate frequency (IF) and complex IF receiver designs. In addition, this device has excellent low distortion for single-ended input driver applications.

Using two external series resistors for each amplifier expands the gain flexibility of the amplifier and allows any gain selection from 6 dB to 20 dB for a differential input. For a single-ended input, the gain can be adjusted from 6 dB to 17 dB with the addition of some external resistors. This device maintains low distortion through its output common-mode range of 2.0 V to 3.0 V, providing a flexible capability for driving ADCs with ac levels up to 2 V_P-P.

Operating from a single 5 V supply, the quiescent current of the ADL5569 is typically 86 mA per amplifier. When disabled, the amplifiers consume only 8 mA per amplifier.

The device is optimized for wideband, low distortion, and low noise operation, giving it unprecedented second harmonic distortion (HD2) and third harmonic distortion (HD3) from dc to 4 GHz. These attributes, together with its adjustable gain capability, make this device the amplifier of choice for driving a wide variety of ADCs, mixers, pin diode attenuators, surface acoustic wave (SAW) filters, and a multitude of discrete radio frequency (RF) devices.

Fabricated on an Analog Devices, Inc., high speed silicon germanium (SiGe) process, the ADL5569 is supplied in a compact 2.5 mm × 3 mm, 16-lead LFCSP package and operates over the −40°C to +85°C temperature range.

APPLICATIONS

Differential ADC drivers for GSPS ADCs
High speed data acquisition
Single-ended to differential conversion
DAC buffering
DC coupling and level shifting
RF/IF gain blocks
Balun alternative from dc to 4 GHz
SAW filter interfacing

Part Models: 2
1ku List Price: Starting From $21.30

Documentation

Data Sheet 1

ADL5569: 6.5 GHz, Ultrahigh Dynamic Range, Differential Amplifier Data Sheet (Rev.C) 08/24/2017

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADL5569BCPZ	16-Lead LFCSP (2.5mm x 3mm x 0.55mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADL5569BCPZ-R7	16-Lead LFCSP (2.5mm x 3mm x 0.55mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Analog to Digital Converters (ADCs) 3
AD9208	RECOMMENDED FOR NEW DESIGNS	14-Bit, 3GSPS, JESD204B, Dual Analog-to-Digital Converter
AD9680	RECOMMENDED FOR NEW DESIGNS	14-Bit, 1.25 GSPS/1 GSPS/820 MSPS/500 MSPS JESD204B, Dual Analog-to-Digital Converter
AD9625	RECOMMENDED FOR NEW DESIGNS	12-Bit, 2.6 GSPS/2.5 GSPS/2.0 GSPS, 1.3 V/2.5 V Analog-to-Digital Converter

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

S-Parameter 1

ADL5569 S-Parameters

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool

Evaluation Kits

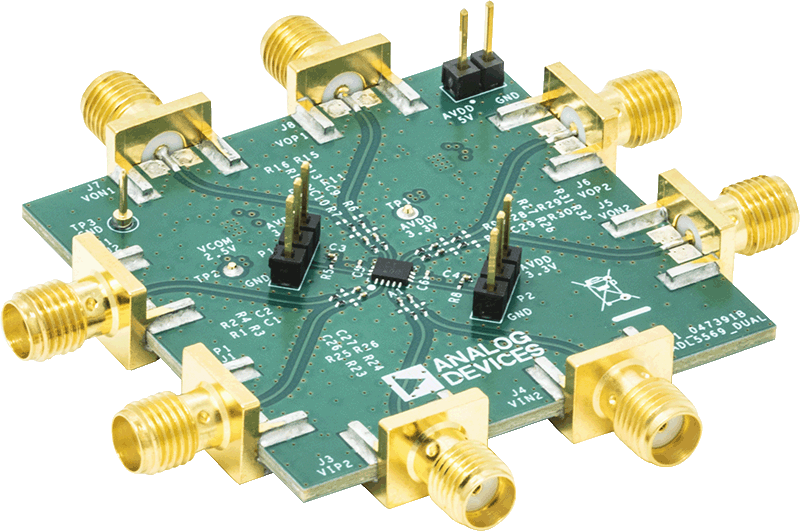

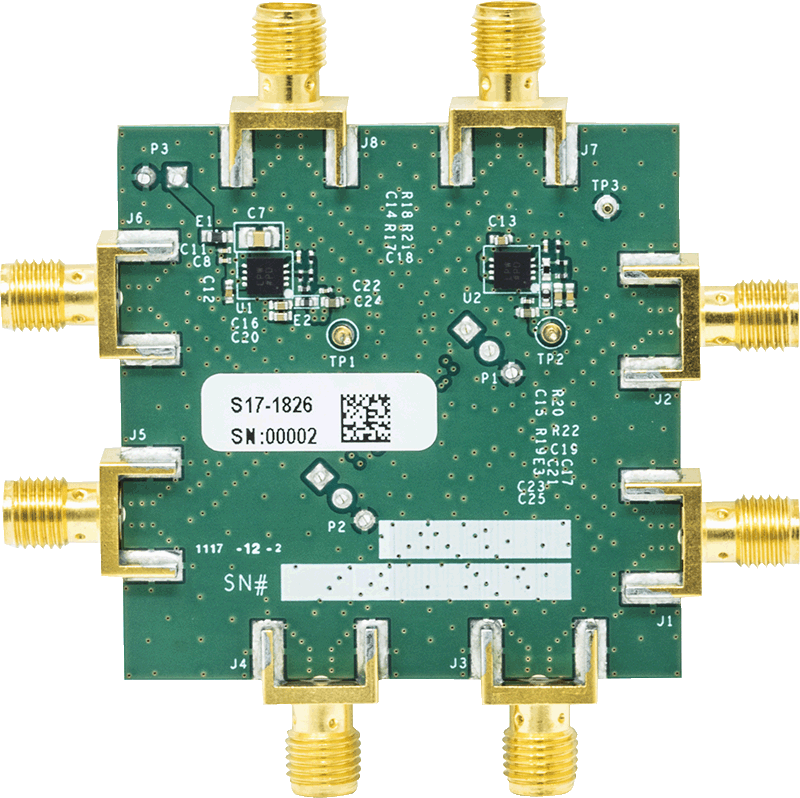

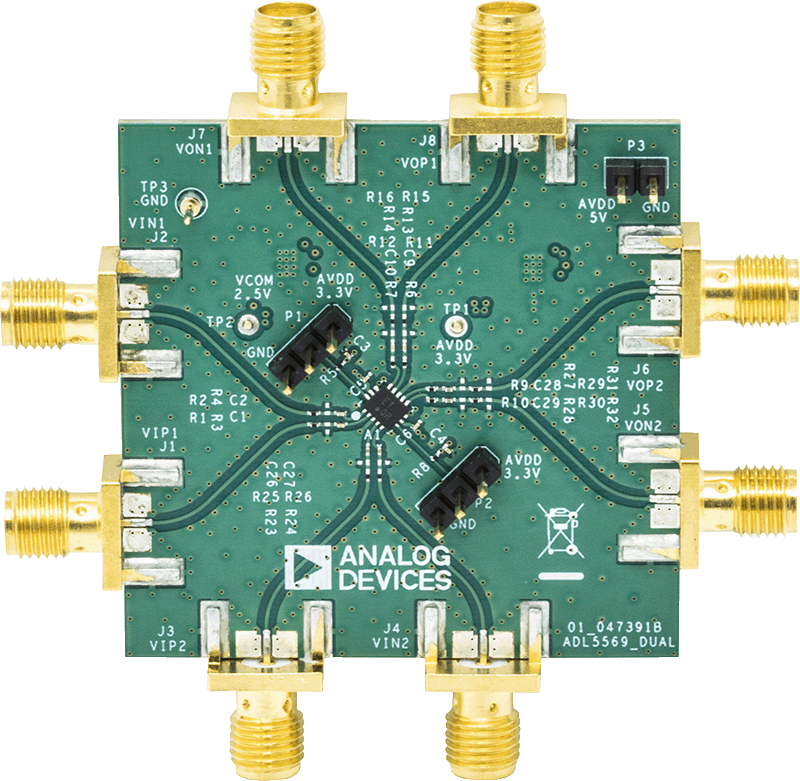

ADL5569 Evaluation Board

Buy Now View Details

Product Details

The evaluation board is powered by a single 5 V supply. The power supply is decoupled by 10 µF and 0.1 µF capacitors. On board regulators provide a 2.5 V common mode voltage and 3 V logic supply voltage to enable/disable the power-down feature.

Several termination options are also provided to allow the user to terminate unused inputs/outputs of the amplifier for single-ended applications.
