AD5710R

RECOMMENDED FOR NEW DESIGNS

8-channel 16-bit Configurable IDAC/VDAC with On-Chip Reference

Data Sheet (Rev. 0) Product Selection Table

Part Models: 1
1ku List Price: Starting From $12.50

Viewing:

Overview

Octal channel, configurable as any combination of VDAC or IDAC
Guaranteed monotonicity : ±1 LSB16 Max DNL
50mA output current drive for IDAC and VDAC modes
70mV max headroom for VDAC mode
0.25V max headroom for IDAC mode
2.5V internal voltage reference, 3ppm/°C typical

Device addressable SPI interface
Output supply range: +1.71V to +5.5V
Diagnostic monitoring for output voltage, output current, and die temperature

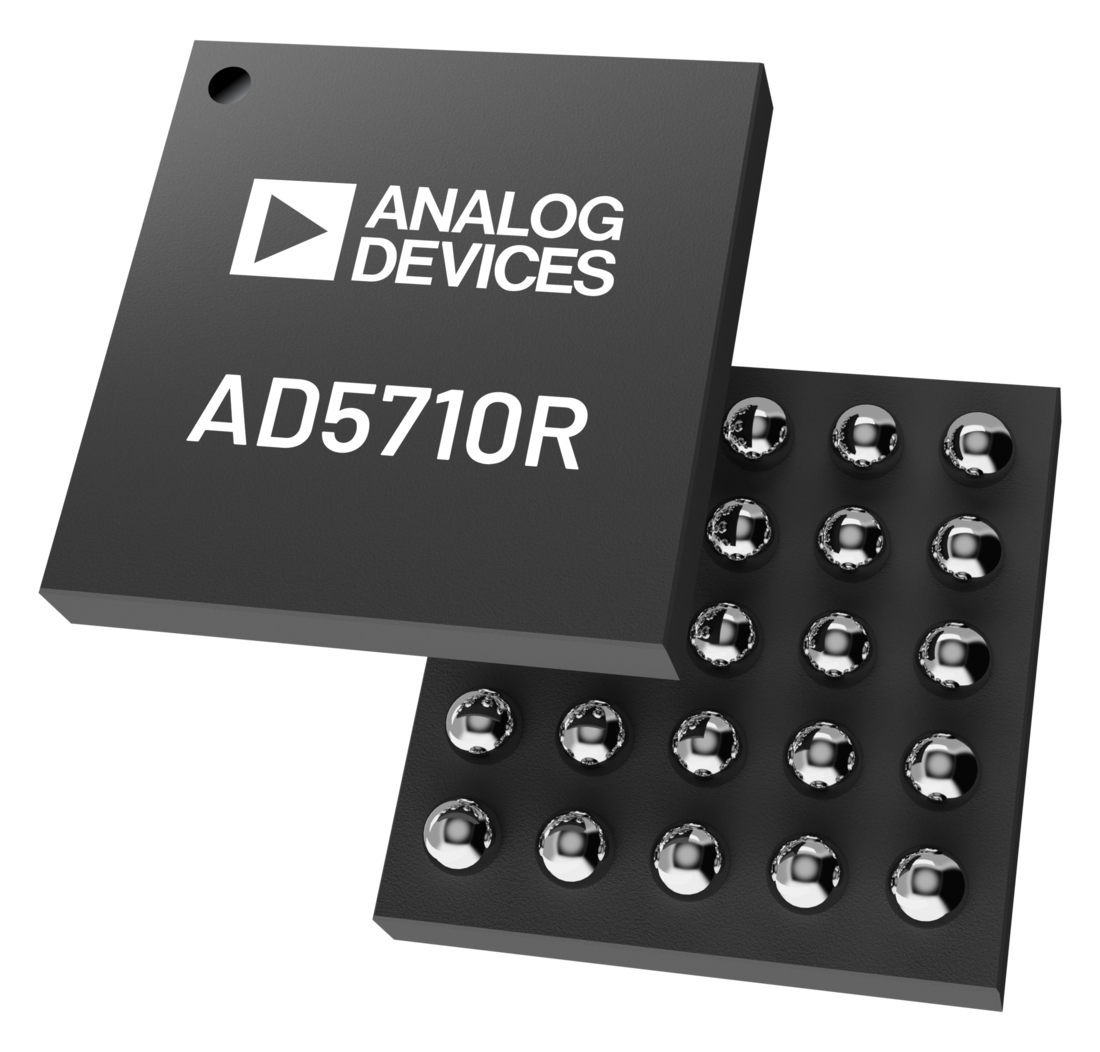

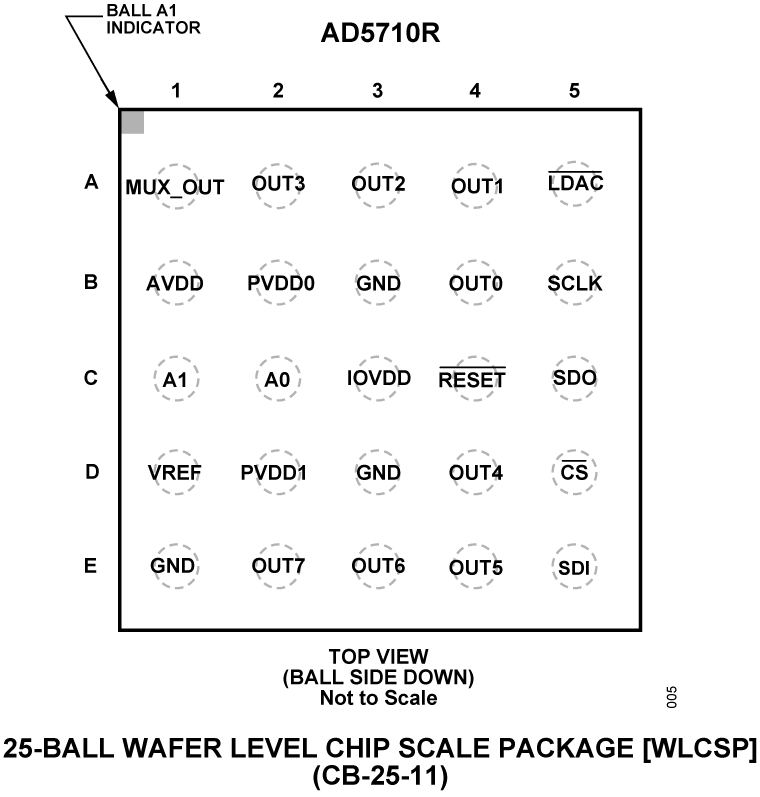

Ultra small form factor: 2.1mm × 2.2mm, 25-ball WLCSP
Operating temperature range: −40 °C to +125 °C

The AD5710R features eight DAC channels that can be independently configured as either a current output digital-to-analog converter (IDAC) or a voltage output digital-to-analog converter (VDAC). The AD5710R includes an integrated 2.5V, 3ppm/°C reference.

When the AD5710R outputs are configured as an IDAC, the output current range is 0mA to 50mA. When configured as a VDAC, the output voltage range is 0V to VREF or 0V to 2 × VREF.

The AD5710R is available in a 25-ball wafer level chip scale packaging (WLCSP) and is specified over the −40°C to +125°C temperature range.

APPLICATIONS

Optical networking
Instrumentation
Data acquisition
Automatic test equipment
Process control and industrial automation

Part Models: 1
1ku List Price: Starting From $12.50

Documentation

Data Sheet 1

AD5710R: 8-channel 16-bit Configurable IDAC/VDAC with On-Chip Reference Data Sheet (Rev.0) 11/19/2025

User Guide 1

EVAL-AD5710R User Guide: Evaluation Board for the AD5710R 16-Bit, 8-Channel Configurable IDAC/VDAC with On-Chip Reference (Rev.0) 11/19/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD5710RBCBZ-RL7	CHIPS W/SOLDER BUMPS/WLCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

IBIS Model 1

AD5710R IBIS Model

Evaluation Kits

Evaluation Board for the AD5710R 16-Bit, 8-Channel Configurable IDAC/VDAC with On-Chip Reference

Buy Now View Details

Features and Benefits

Full featured evaluation board for the AD5710R
Various link options
PC control in conjunction with the EVAL-SDP-CK1Z board

Product Details

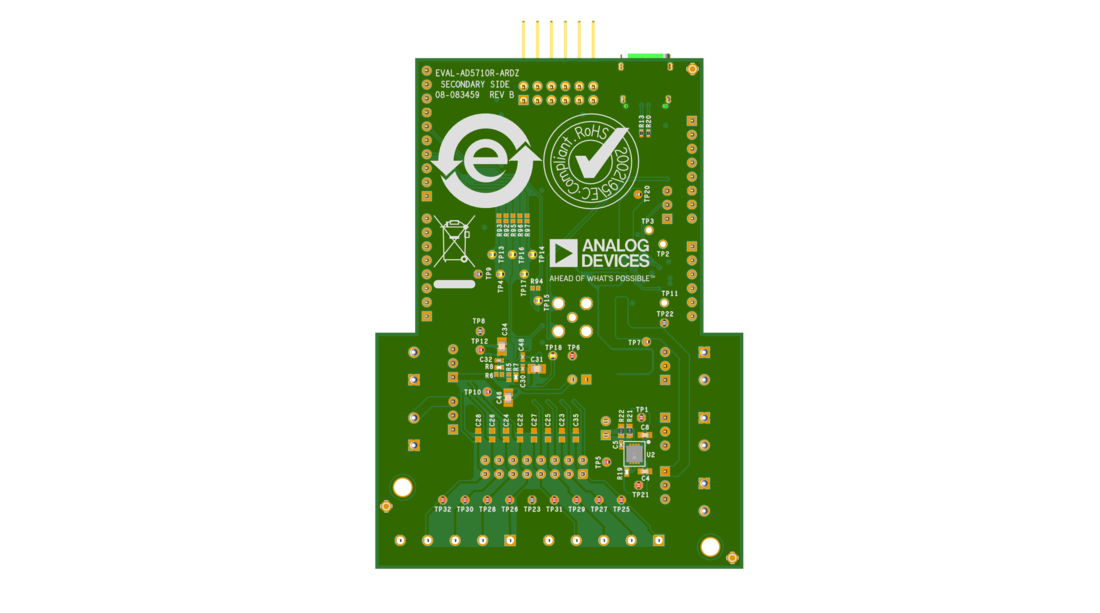

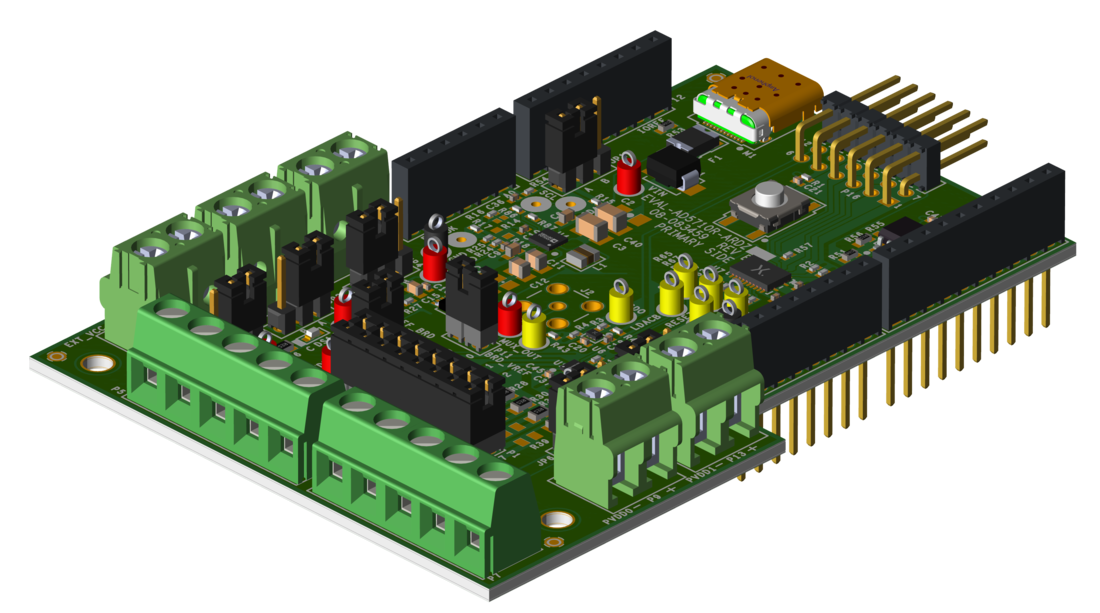

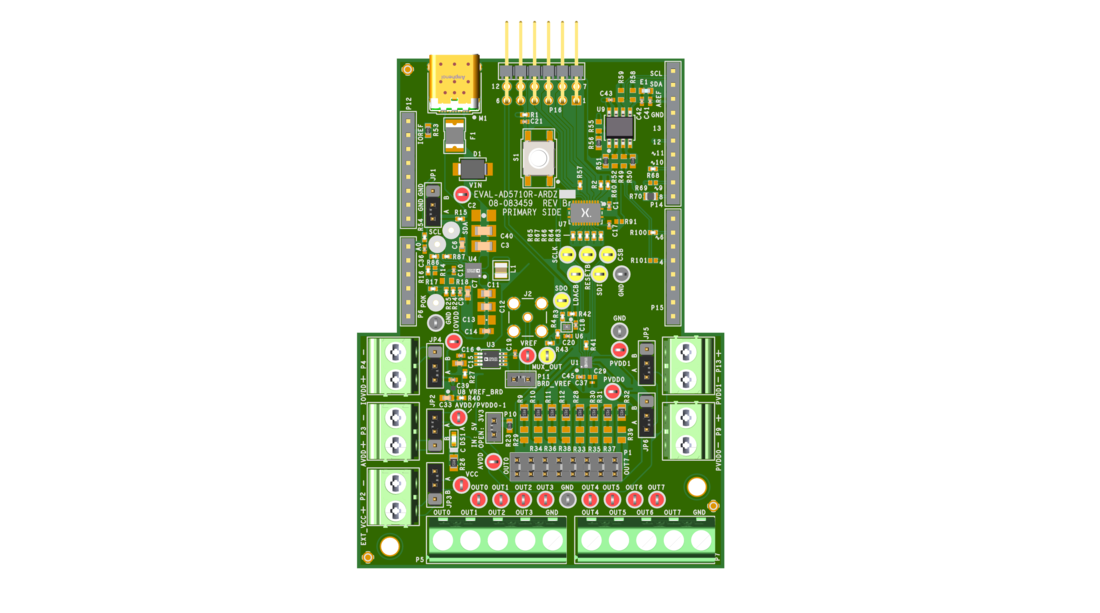

This user guide details the operation of the EVAL-AD5710R-ARDZ for the AD5710R.

The EVAL-AD5710R-ARDZ features a power solution using the MAX77859 switching regulator to generate 6V via a USB-C cable. Additionally, on-board regulators such as the ADP150ACBZ-1.8 generate power for IOVDD and the ADM7171ACPZ to supply AVDD and PVDD. Also, an additional on-board voltage reference, the ADR3625BRMZ, is incorporated.

The EVAL-AD5710R-ARDZ interfaces with a PC via USB through the SDP-K1 board. A peripheral module interface (PMOD) is also available, allowing the evaluation board to operate without the SDP-K1. When using a microcontroller via the PMOD connection, the SDP-K1 must be disconnected, and ACE software functionality is not available.

Resources

EVAL-AD5710R User Guide: Evaluation Board for the AD5710R 16-Bit, 8-Channel Configurable IDAC/VDAC with On-Chip Reference (Rev.0)
11/19/2025

EVAL-AD5710R - Design Files
11/19/2025

EVAL-AD5710R - Schematic
1/1/0001
