TMCM-1070

推荐用于新设计

Stepper motor driver module 9 to 24V, 1.2A, 256 µSteps, with S/D and Uart Interface, StallGuard, CoolStep and StealthChop

产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Supply Voltage +9 to +24V DC
  • Step and direction interface
  • MicroPlyer™ to 256 µ-steps
  • StealthChop™ silent PWM mode
  • SpreadCycle™ smart mixed decay
  • StallGuard2™ load detection
  • CoolStep™ autom. current scaling
  • UART configuration interface

The TMCM-1070 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic SpreadCycle™ chopper and StealthChop™ technology. The TMCM-1070 is capable of driving up to 1.4A of current from each output (with proper heatsinking). It is designed for an operating voltage of 9 to 24V. The device provides a S/D interface and permanent parameter storage via TMCL™-IDE for configuration.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

APPLICATIONS:

  • Lab-Automation
  • Manufacturing
  • Robotics
  • Factory Automation
  • CNC
  • Laboratory Automation
TMCM-1070
Stepper motor driver module 9 to 24V, 1.2A, 256 µSteps, with S/D and Uart Interface, StallGuard, CoolStep and StealthChop

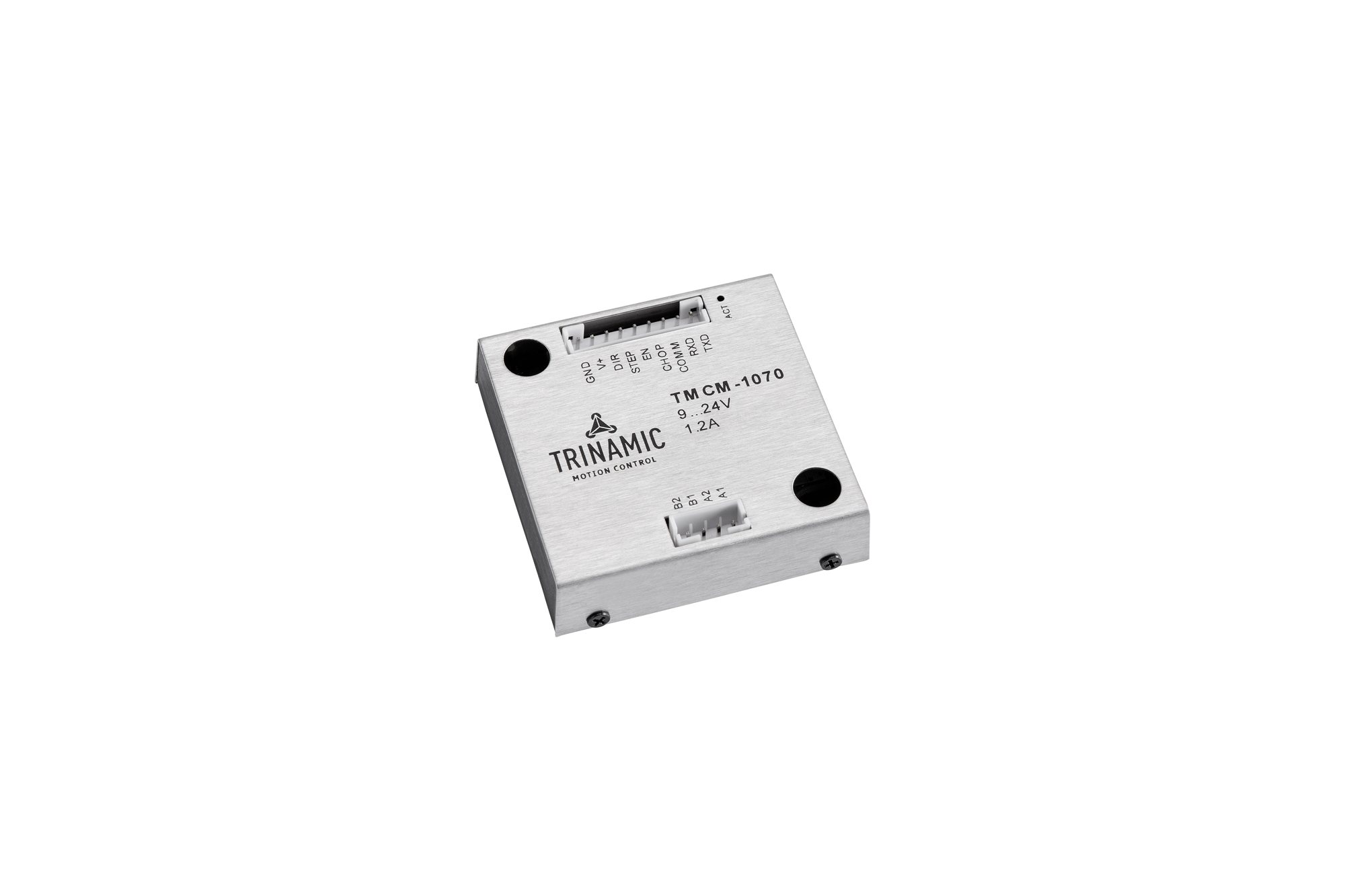

tmcm-1070 tmcm-1070_blockdiagram
