TMC236

量产

Stepper motor driver 7 to 34V, up to 1.1A with SPI Interface, 64 µSteps

数据手册 (Rev. 2.22) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • High Current up to 1500mA and 1000mA at 105°C
  • Voltage Range 7 V to 36 V DC
  • 3.3 V or 5 V for digital part
  • SPI & External Analogue / Digital Signals
  • Microstep Resolution 16 microsteps using internal DACs
  • Low Power Dissipation via low RDS-ON power stage
  • Protection: overvoltage, overtemperature & short circuit
  • Diagnostics: overcurrent, open load, 2 level overtemperature
  • Mixed Decay for smooth motor operation
  • Slope Control for reduced electromagnetic emissions
  • Current Control for cool motor and driver
  • Standby and Shutdown Mode
  • Optical Inspectable Package 10x10mm Standard TQFP-44 package

The TMC236 provides an integrated motor driver solution for Laboratory Automation, Scanners and other automated equipment applications. The device has an integrated microstepping current control and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon TrenchFET power MOSFETs configured as full H-bridges to drive the motor windings. The TMC236 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC236 is designed for a supply voltage of 7 to 34V. The device has a SPI interface for control and diagnostics.

APPLICATIONS

  • Replace Classic Bipolar Driver ICs
  • Office Automation
  • Printer and Scanner
  • ATM, Cash recycler
  • POS
  • CCTV, Security
  • Antenna Positioning
  • Pumps and Valves
  • Lab Automation
  • Liquid Handling
  • Medical
TMC236
Stepper motor driver 7 to 34V, up to 1.1A with SPI Interface, 64 µSteps

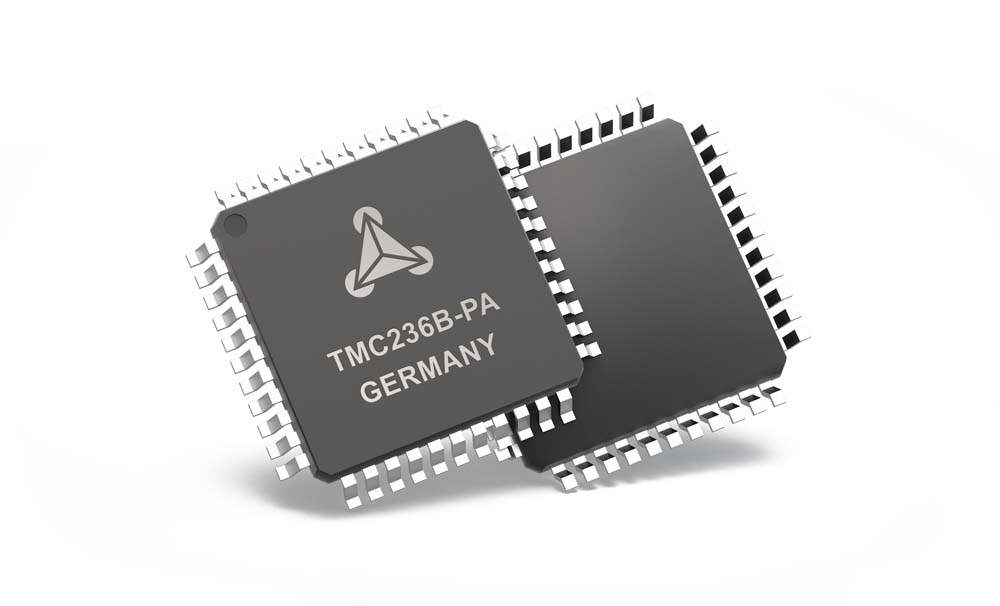

tmc236b-pa tmc236 tmc236-v2
