RH6105
量产Radiation Hardened Micropower Precision, Rail-to-Rail Input Current Sense Amplifier
- 产品模型
- 3
产品详情
- Processed in Compliance with LTC Certified MIL-PRF-38535 Class V Flow*
- Very Wide, Over-the-Top, Input Common Mode Range
- Extends 44V Above V– (Independent of V+)
- Extends –0.3V Below V–
- Wide Power Supply Range: 2.85V to 36V
- Input Offset Voltage: 400μV Maximum
- Gain Accuracy: 1% Maximum
- Gain Configurable with External Resistors
- High Impedance Sense Input When Powered Down
- Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
- 50kRad (Si), per condition D at 10mRads(Si)/sec
- ELDRS Pass 50kRad(Si)*
- Displacement Damage Defect (DDD) up to 1E12 Neutrons/cm2*

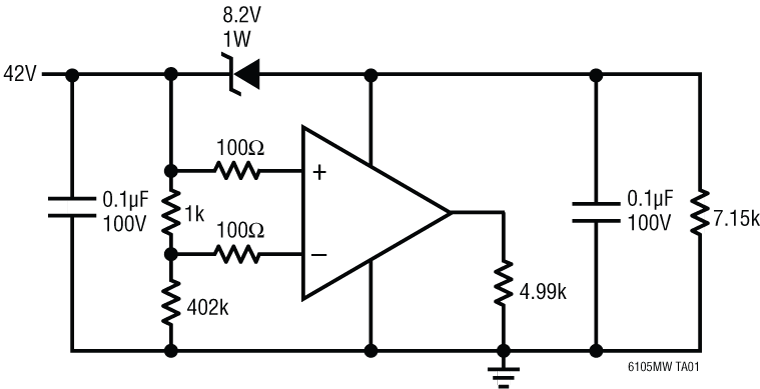

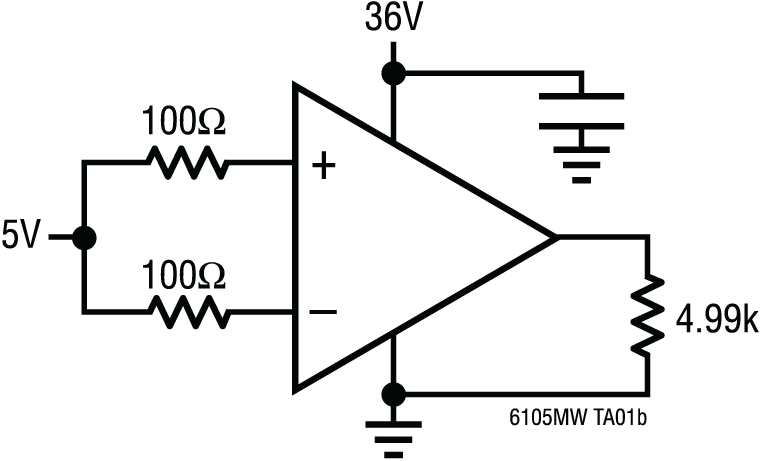

Radiation Performance*
* Radiation and Qualification completed on the packaging vendor’s assembled unit. Refer to MSK496RH for ELDRS and DDD.

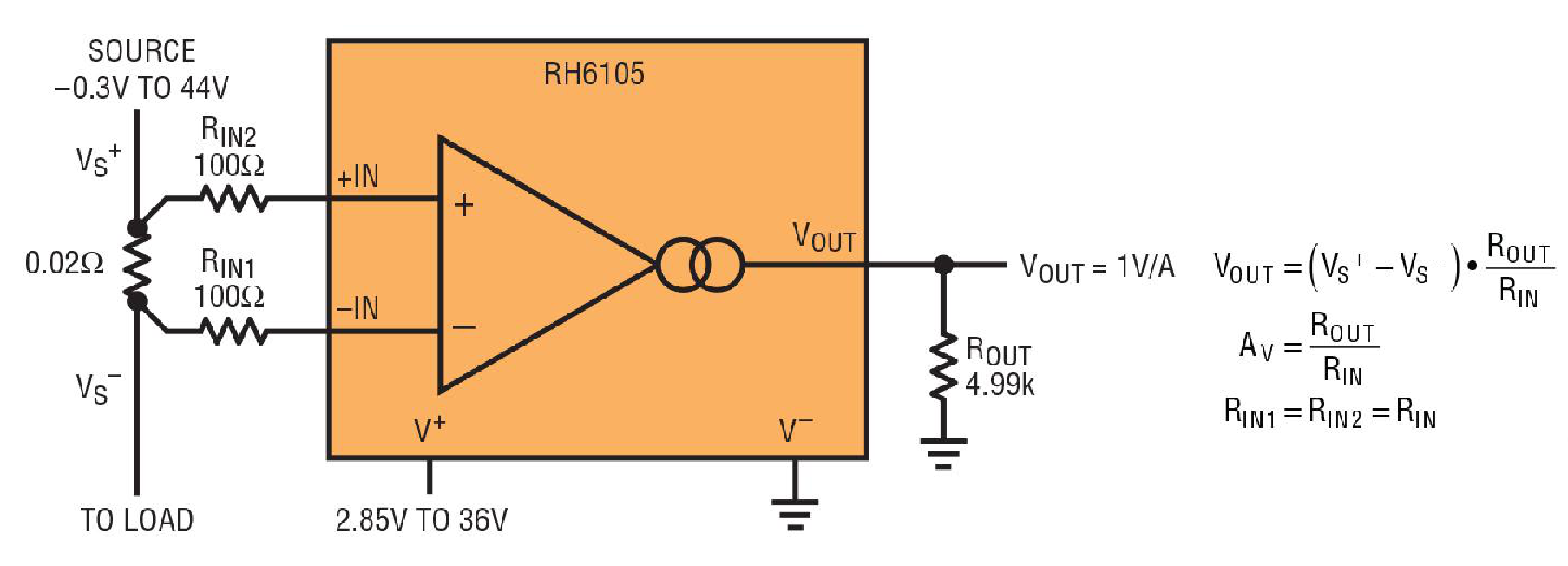

The RH6105 is a micropower, precision current sense amplifier with a very wide input common mode range. The RH6105 monitors unidirectional current via the voltage across an external sense resistor. The input common mode range extends from –0.3V to 44V, with respect to the negative supply voltage (V–). This allows the RH6105 to operate as a high side current sense monitor or a low side current sense monitor. It also allows the RH6105 to monitor current on a negative supply voltage, as well as continuously monitor a battery from full charge to depletion. The inputs of RH6105 can withstand differential voltages up to ±44V, which makes it ideal for monitoring a fuse or MOSFET switch.
The RH6105 can operate from an independent power supply of 2.85V to 36V. When V+ is powered down, the sense pins are biased off. This prevents loading of the monitored circuit, irrespective of the sense voltage. The RH6105 is currently available only from MS Kennedy in packaged form.
Third Party Vendor Availability
Analog Devices partners with third party vendors who assemble and test packaged products with RH Dice inside.
or MSK prefix products please click on the Part Number in the table below and scroll down the linked page to find the part number.
| Part Number | Description |
| MSK197RH | Rail To Rail Current Sense Amplifier |
| MSK496RH | Quad Rail-To-Rail Current Sense Amplifier |
| MSK6000RH | Dual High Side Driver with Current Sense |
APPLICATIONS
- High Side or Low Side Current Sensing
- Current Monitoring on Positive or Negative Supply Voltages
- Battery Monitoring
- Fuse/MOSFET Monitoring
- Power Management
参考资料
产品选型卡 1
辐射报告 2
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| RH6105MILDICE | CHIPS OR DIE | ||
| RH6105MW | 10-Lead FlatPack | ||
| RH6105MW-EMX | 10-Lead FlatPack |
| 产品型号 | 产品生命周期 | PCN |
|---|---|---|
|
10月 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales. |
||
| RH6105MILDICE | 量产 | |
|
5月 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products) |
||
| RH6105MW | 量产 | |
|
8月 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT |
||
| RH6105MW | 量产 | |
| RH6105MW-EMX | 量产 | |
