QSH4218

推荐新设计使用

QSH4218

NEMA 17 stepper motor 27Ncm, 1A

推荐新设计使用

不是您想寻找的产品？

去产品选项表

查看所有文档

提问

在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:

搜索

您可以在其他地方找到帮助

支持

ADI 一站式购物体验可以回答您的所有问题

访问 ADI 技术支持页面

在 ADI 论坛寻求帮助

在 EngineerZone 交流

FAQs

Sales & Ordering FAQs

产品模型 6

特性

NEMA 17 mounting configuration
Flange max. 42.3mm * 42.3mm
Step angle: 1.8˚
Optimized for microstep operation

Optimum fit for TMC262/236/TMC246 based driver circuits
4 Wire connection
CE approved
Variants with encoder: 10000 lines/ 40000 counts

更多细节

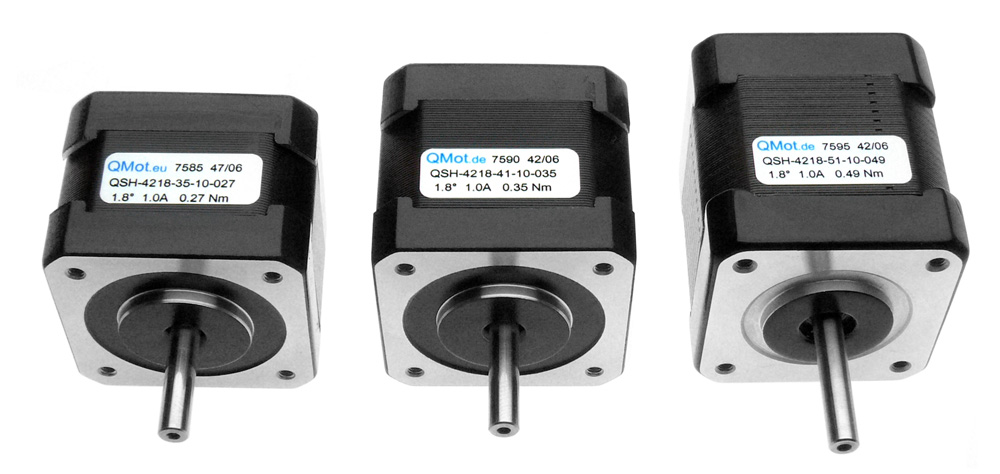

NEMA17 (42mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.

Variants include a small size optical incremental encoder kit. It comes with a resolution of 10000 lines (40000 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.

Technical Details

	QSH4218-35-10-027	QSH4218-41-10-035	QSH4218-51-10-049	QSH4218-47-28-040
Status	Active	Active	Active	Active
Flange NEMA	17	17	17	17
Flange	42mm	42mm	42mm	42mm
Holding Torque	27Ncm	35Ncm	49Ncm	40Ncm
Phase Current	1.00A	1.00A	1.00A	2.80A
Full Steps	200	200	200	200
Width	42mm	42mm	42mm	42mm
Height	42mm	42mm	42mm	42mm
Length	35mm	41mm	51mm	47mm
Weight	220g	280g	350g	350g
