概览

优势和特点

  • Dual-Core Ultra-Low-Power Microcontroller
    • Arm Cortex-M4 Processor with FPU up to 120MHz
    • 2.5MB Flash, 64KB ROM and 384KB SRAM
    • Optimized Performance with 16KB Instruction Cache
    • Optional Error Correction Code (ECC-SEC-DED) for SRAM
    • 32-Bit RISC-V Coprocessor up to 60MHz
    • Up to 60 General-Purpose I/O Pins
    • MIPI CSI-2 Camera Serial Interface
    • 12-Bit Parallel Camera Interface
    • I2S Master/Slave for Digital Audio Interface
    • Secure Digital Interface Supports SD3.0/SDIO3.0/eMMC4.51
  • Convolutional Neural Network (CNN) Accelerator
    • Highly Optimized for Deep CNNs
    • 2M 8-Bit Weight Capacity with 1,2,4,8-Bit Weights
    • 1.3MB CNN Data Memory
    • Programmable Input Image Size up to 2048 x 2048 pixels
    • Programmable Network Depth up to 128 Layers
    • Programmable per Layer Network Channel Widths up to 1024 Channels
    • 1 and 2 Dimensional Convolution Processing
    • Capable of Processing VGA Images at 30fps
  • Power Management for Extending Battery Life
    • Integrated Single-Inductor Multiple-Output (SIMO) Switch-Mode Power Supply (SMPS)
    • 2.85V to 3.6V SIMO Supply Voltage Range
    • Dynamic Voltage Scaling Minimizes Active Core Power Consumption
    • 23µA/MHz While Loop Execution at 3.0V from Cache (CM4 Only)
    • Selectable SRAM Retention in Low-Power Modes with Real-Time Clock (RTC) Enabled
  • Security and Integrity
    • Available Secure Boot
    • AES 128/192/256 Hardware Acceleration Engine
    • True Random Number Generator (TRNG) Seed Generator

产品详情

Artificial intelligence (AI) requires extreme computational horsepower, but Maxim is cutting the power cord from AI insights. The MAX78002 is a new breed of AI microcontroller built to enable neural networks to execute at ultra-low power and live at the edge of the IoT. This product combines the most energy-efficient AI processing with Maxim's proven ultra-low power microcontrollers. Our hardware-based convolutional neural network (CNN) accelerator enables battery-powered applications to execute AI inferences while spending only millijoules of energy.

The MAX78002 is an advanced system-on-chip featuring an Arm® Cortex®-M4 with FPU CPU for efficient system control with an ultra-low-power deep neural network accelerator. The CNN engine has a weight storage memory of 2MB, and can support 1-, 2-, 4-, and 8-bit weights (supporting networks of up to 16 million 1-bit weights). The CNN weight memory is SRAM-based, so AI network updates can be made on the fly. The CNN engine also has 1.3MB of data memory. The CNN architecture is highly flexible, allowing networks to be trained in conventional toolsets like PyTorch® and TensorFlow®, then converted for execution on the MAX78002 using tools provided by Analog Devices.

In addition to the memory in the CNN engine, the MAX78002 has large on-chip system memory for the microcontroller core, with 2.5MB flash and up to 384KB SRAM. Multiple high-speed and low-power communications interfaces are supported, including I2S, MIPI CSI-2®, parallel camera interface (PCIF) and SD3.0/SDIO3.0/eMMC4.51 secure digital..

The device is available in a 144-pin CSBGA (12mm x 12mm, 0.8mm pitch) package.

Applications

  • Factory Robot and Drone Navigation
  • Industrial Sensors and Process Control
  • In-line Quality Assurance Systems
  • Smart Security Cameras
  • Portable Medical Diagnostics Equipment

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

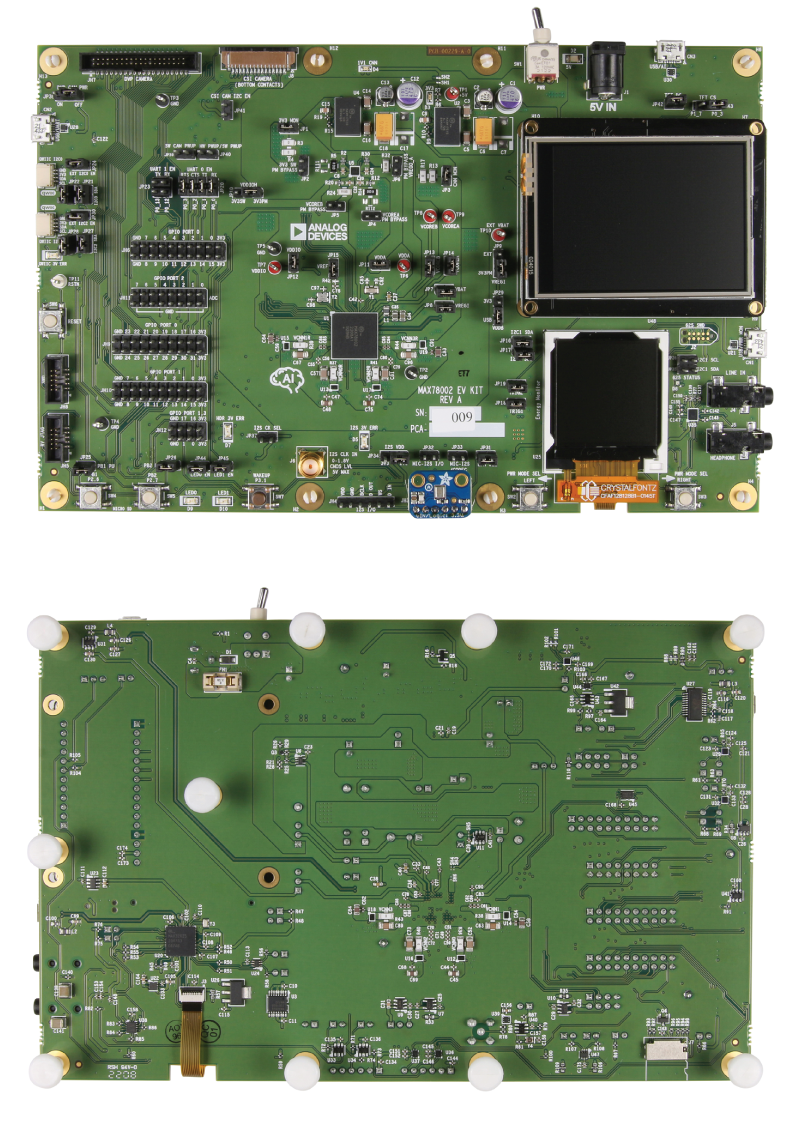

评估套件 (1)
