MAX32690

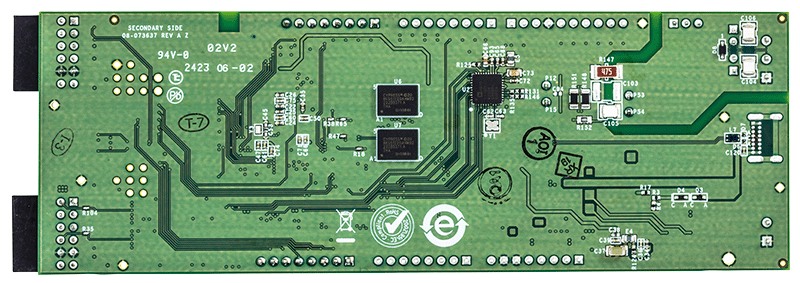

• Allows prototyping of intelligent, secure, and connected industrial field devices
• Arduino Mega-compatible form factor
• Two Pmod™-compatible connectors
• ARM Cortex-M4 Ultra Efficient Microcontroller with integrated Bluetooth 5.2 LE
• WiFi connectivity
• Long-range, single-pair 10BASE-T1L Ethernet interface
• Built-in security for root-of-trust, mutual authentication, data confidentiality and integrity, secure boot, and secure communications
• Open-source software stack

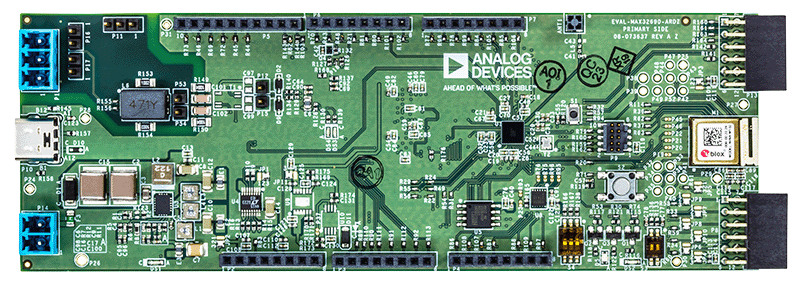

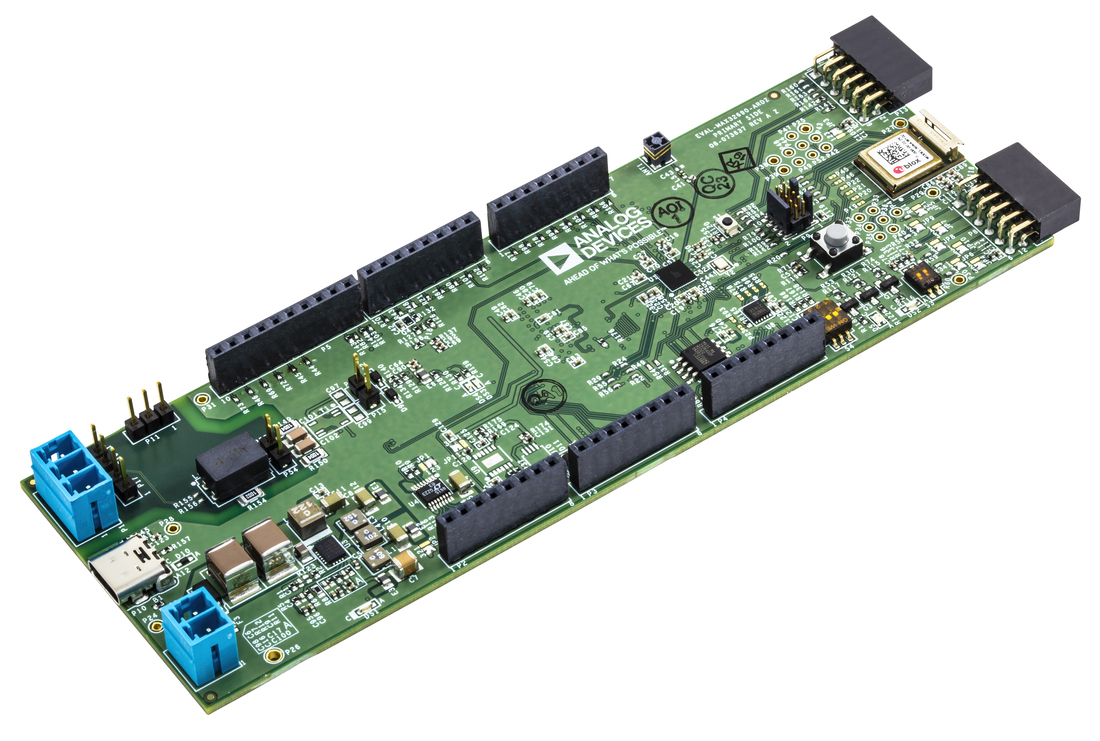

The AD-APARD32690-SL is a platform for prototyping intelligent, secure, and connected field devices. It has an Arduino Mega-compatible form factor and two Pmod™-compatible connectors.

The system includes the MAX32690 ARM Cortex-M4 with FPU-Based Microcontroller and Bluetooth LE 5.2. The MCU is coupled with external RAM (2 x 512 Mb) and Flash (64 Mb) memories to meet the requirements of the most demanding applications. The MAXQ1065 security coprocessor enables state of the art security features such as for root-of-trust, mutual authentication, data confidentiality and integrity, secure boot, and secure communications.

A 10 Mbps single-pair Ethernet link using the ADIN1110 10BASE-T1L MAC/PHY, enables remote data acquisition and system configuration. The 10BASE-T1L interface also supports Single-pair Power over Ethernet (SPoE) and be used for powering the system via an Arduino shield implementing the required power circuitry.

WiFi connectivity is provided via the on-board NINA-W102 multiradio wireless MCU module with internal antenna.

Power can be supplied either via the USB-C connector or via a 2-pin terminal block. The supported input voltage range is 5 V to 28 V.

The system is accompanied by an open-source software stack and associated collateral, enabling a complete experience from evaluation, and prototyping, all the way to production firmware and application development. The open-source software stack also includes drivers and example applications for a wide variety of ADCs, DACs, sensors, and other devices commonly used in industrial applications, further accelerating the development process. An external programmer such as the MAX32625PICO DAPLink, or any other similar programmer supporting the SWD interface, enables firmware programming and debug. The system’s firmware is based on Analog Devices’ open-source no-OS framework which includes all the tools required for embedded code development and debugging as well as libraries, enabling host-side connectivity for system configuration and data transfer over the UART, USB, WiFi, and 10BASE-T1L interfaces.

APPLICATIONS

• Factory automation
• Process control
• Intelligent buildings
• Secure field instruments
• Internet of Things

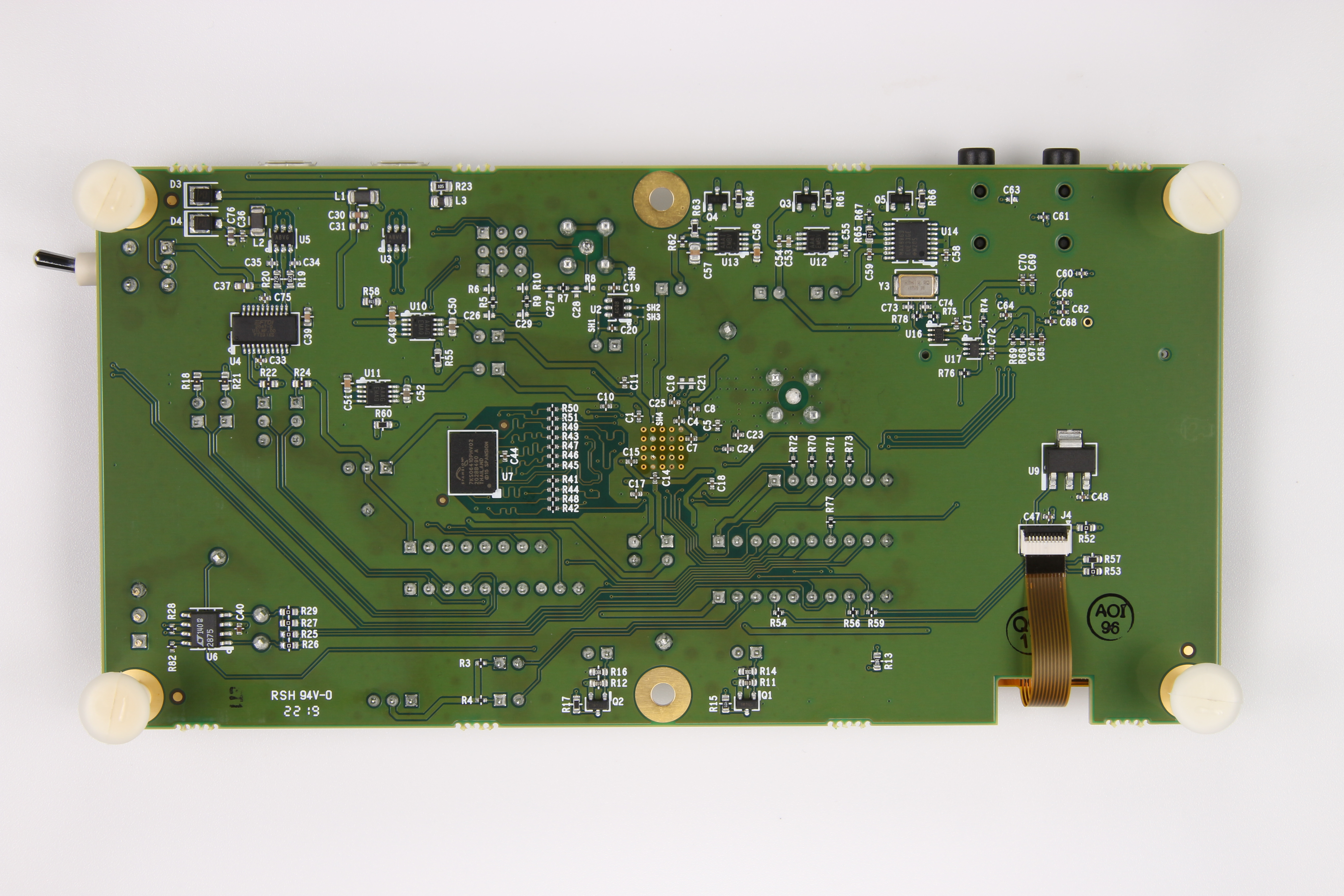

• 具有铰链 2.4GHz 天线的 SMA 蓝牙连接器
• CAN 总线 2.0 的 3 引脚接线板
• 可选的板载高精度基准电压源
• 板载 HyperRAM
• 具有线路输入和线路输出 3.5mm 插孔的立体声音频编解码器
• 128 x 128（1.45 英寸）TFT 彩色显示屏
• 连接 MAX32690 的 USB 2.0 Micro-B 接口
• USB 2.0 Micro-B 转串行 UART
• 任一 USB 端口提供的评估板功率
• 启用 I2C 端口上的可选上拉电阻的跳线
• 所有 GPIO 信号可通过 0.1 英寸头部访问
• 三个模拟输入可通过具有可选滤波的 0.1 英寸头部访问
• SWD 10 引脚接头
• 板上 3.3V、1.8V 和 1.1V LDO 稳压器
• 通过跳线单独测量所有 IC 电源轨的功率
• 两个通用 LED 和一个通用按钮开关

• Accurate voltage and current measurement
• Highly scalable and ease of integration
• Robust isoSPI capability implementable in daisy chain high count
• Inclusive passive balancing with individual pulse-width modulation
• Isolated power supply between microcontroller and battery monitoring devices
• High voltage and current supply measurement
• Fast overcurrent (OC) measurement
• Redundancy measurement
• Modular BMS Solution

The EVAL-ESS1-SYS Solution Kit contains all the necessary building blocks to create a complete BMS solution stack.

The accompanying PC-based graphical user interface provides an intuitive interface that allows the user to configure the BMS signal chain components and view cell and stack voltage and current measurement results.

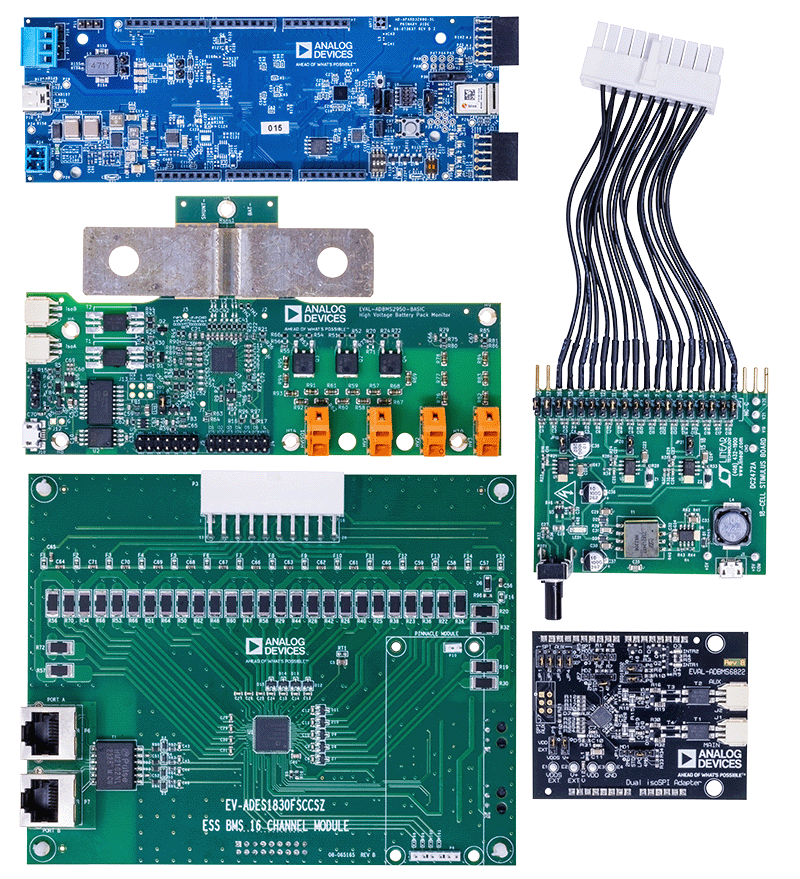

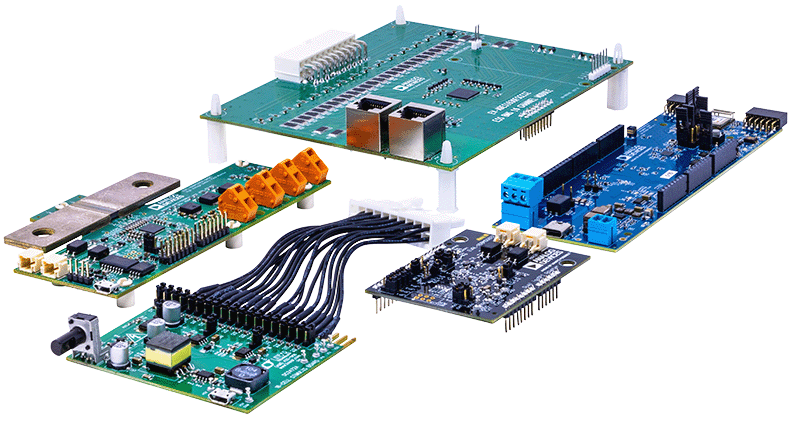

The package includes one application processor (AD-APARD32690-SL), one dual isoSPI adapter (EVAL-ADBMS6822), two 16-cell battery monitors (EV-ADES1830CCSZ), two 16-cell battery emulators (DC2472A), and one battery pack monitor (EVAL-ADBMS2950-BASIC).

Upon purchase, the EVAL-ESS1-SYS kit comes with the following boards and accessories:

Boards

• 2x EV-ADES1830CCSZ 16-Channel Battery Cell Monitor

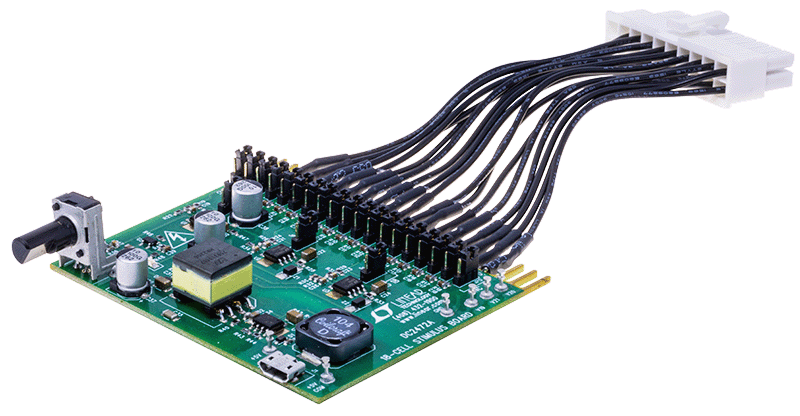

• 2x DC2472A Battery Cell Emulator with harness fitted

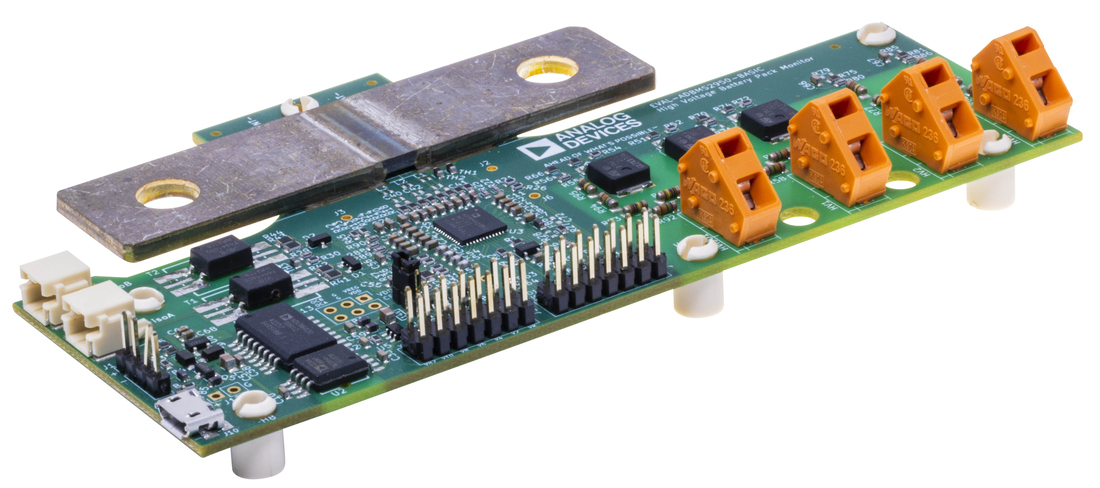

• 1x EVAL-ADBMS2950-BASIC Battery Pack Monitor

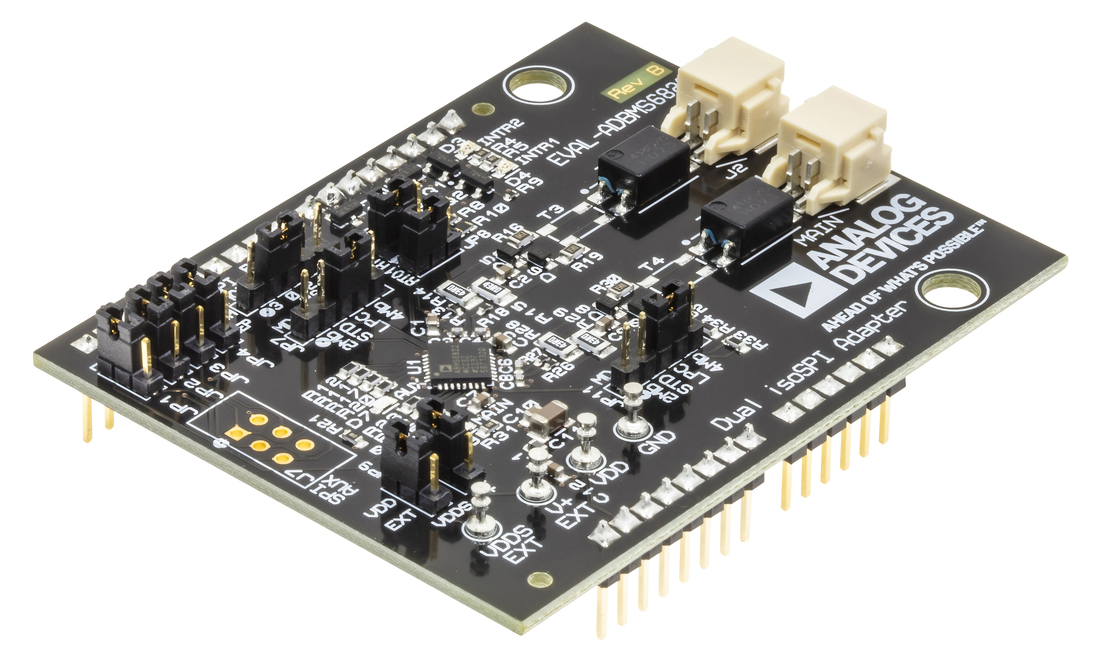

• 1x EVAL-ADBMS6822 Dual isoSPI Adapter
• 1x AD-APARD32690-SL ARM Cortex M4 Controller Board
• 1x AD-USB2.0T1L-EBZ
• 1x MAX32625PICO Programming Adapter with 10-pin SWD cable

Cables and Other Accessories

• 1x RJ45-to-RJ45
• 2x DuraClik-to-RJ45 Twisted Pair Cables
• 3x DuraClik isoSPI Twisted Pair Cables
• 3x USB Type A to Micro-B Cable
• 1x USB A to C-Type Cable
• 1x T1L STP Cable

APPLICATIONS

• IoT Battery Management
• Industrial Machine Vision
• Power Tools
• Mobile Robotics Battery Management
• Industrial Equipment Battery Monitoring
• Adaptive Battery Type System Monitoring
• Portable Energy Storage Systems

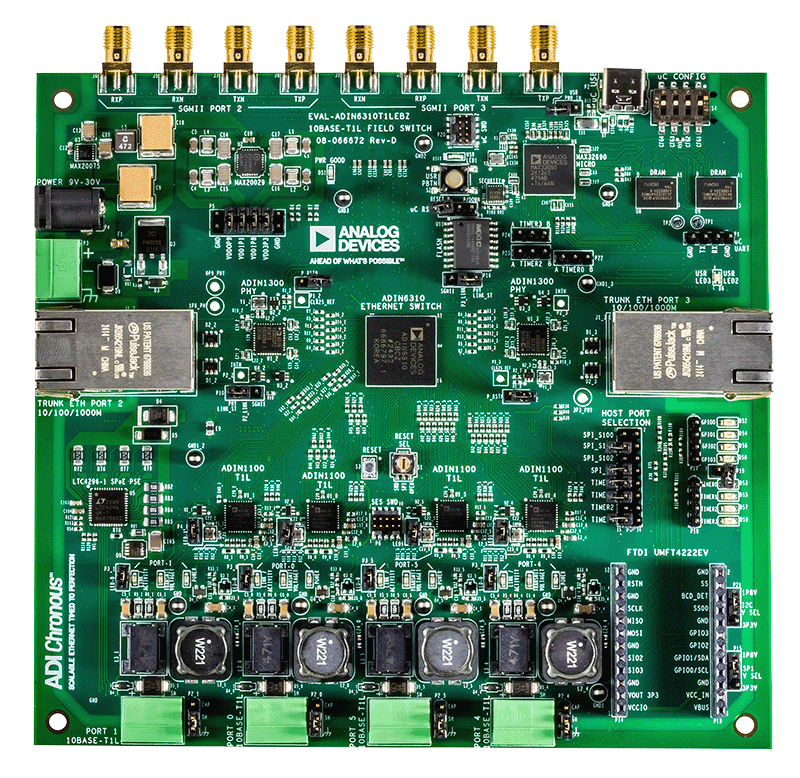

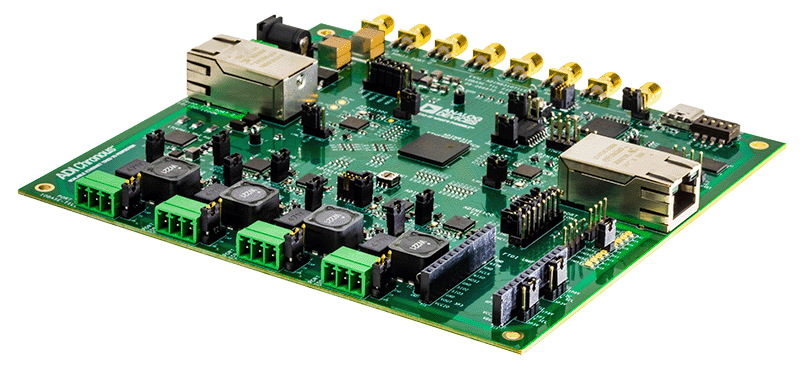

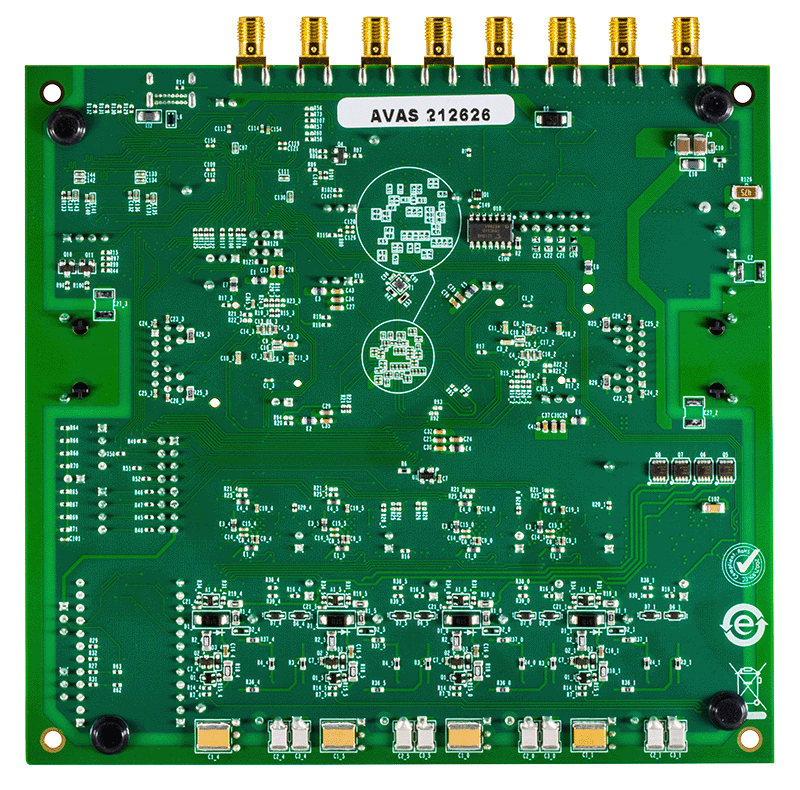

This user guide describes the ADIN6310 Field switch evaluation board with support for four 10BASE-T1L spur ports and two standard Gigabit capable Ethernet trunk ports. The hardware includes single-pair power over Ethernet (SPoE) LTC4296-1 circuit with optional serial communication classification protocol (SCCP) support. The default operation of the hardware is an unmanaged mode where the MAX32690 Arm Cortex-M4 microcontroller configures the switch into a basic switching mode and the PSE configured for Class 12 operation. Enhance the unmanaged switch operation by the DIP switch (S4), which provides ability to enable features such as time synchronization, LLDP, or IGMP snooping by default. Disable the PSE by using the DIP switch, default is enabled.

For more extensive switch evaluation, refer to the TSN switch evaluation package available from the ADIN6310 product page. This evaluation package provides ability to exercise the TSN functionality in addition to Redundancy features.

• DIN B compatible design allows easy prototyping of Ethernet-APL field devices
• Designed and certified for Intrinsic safety (I.S.), Ex ia IIC Ga
• Tested for Ethernet-APL compliance (IEEE 802.3cg-2019)
• Functional Safety ready (SIL-2) with hardware diagnostics and FMEDA documentation
• Highly efficient solution maximizing power available to the field device
• Extensive security features: built-in security for hardware root-of-trust, data confidentiality and integrity, and secure communications
• Open-source software stack
• Supports PROFINET, Ethernet-IP, MQTT
• The kit includes 3 boards, I.S. certified boards and a third one to enable access to the RISC-V JTAG debugger.
• Programmers for ARM and RISC-V included

AD-EthernetAPLDevice-SL is a complete Ethernet-APL field platform designed for prototyping intelligent, secure, and connected field devices.

The platform is certified for intrinsic safety (Ex ia IIC Ga) and tested for Ethernet-APL compliance. It is also functional safety ready (SIL2), featuring the MAX42500 voltage monitor, with integrated windowing watchdog, the MAX6613 temperature sensor, the ADFS7124-4 sigma-delta ADC functional safety approved to SC3, and complete FMEDA documentation.

The system integrates the MAX32690—a dual-core ARM Cortex-M4 with FPU and a RISC-V co-processor. This MCU is paired with external RAM (512 Mb) and Flash (64 Mb) to meet the demands of high-performance applications.

A 10 Mbps single-pair Ethernet link, enabled by the ADIN1110 10BASE-T1L MAC/PHY, supports remote data acquisition and system configuration.

The platform is APL-compliant and powered via Single-Pair Power over Ethernet (SPoE), supporting an input voltage range of 9 V to 15 V. It is recommended to use the DEMO-ADIN1100D2Z as both the power source and media converter for Ethernet signals (10BASE-T1L ↔ 10BASE-T).

The kit includes a third, non-intrinsically safe board that provides access to the RISC-V JTAG interface for debugging.

An open-source software stack and supporting collateral are included, enabling seamless experience from evaluation and prototyping to production firmware and application development. The stack includes drivers and example applications for a wide range of ADCs, DACs, sensors, and other industrial components, accelerating development.

The platform supports Zephyr (with an available board definition) and is also supported in Code Fusion Studio.

An example PROFINET stack software application is available to enable easy evaluation and system prototyping (myanalog.com registration required).

APPLICATIONS

• Process automation
• Factory automation
• Field instruments
• Internet of Things

• User friendly evaluation for the ADIN1140 MAC-PHY features
• 10BASE-T1S to 10BASE-T1L media converter
• USB to 10BASE-T1S bridge
• LwIP web server and MQTT operation
• On-board Arm^® Cortex^®-M4 MAX32690 microcontroller

The EVAL-ADIN1140D1Z is a platform for evaluating the ADIN1140 10BASE-T1S MAC-PHY, which provides half-duplex 10Mbps Single Pair Ethernet (SPE) connectivity to devices compliant with the IEEE 802.3cg Ethernet standard.

The EVAL-ADIN1140D1Z includes firmware that enables it to function as a USB to 10BASE-T1S media converter, a 10BASE-T1L to 10BASE-T1S media converter, or as a sensor node supporting MQTT communication.

When used as a USB to 10BASE-T1S media adapter, simply connect the evaluation board to a host PC via USB. Once connected, the PC recognizes the board as a new network adapter. This adapter can then be configured to access the 10BASE-T1S network connected to it.

When configured as a 10BASE-T1L to 10BASE-T1S media converter, the Ethernet frames flows seamlessly from the 10BASE-T1L port to the 10BASE-T1S port and vice versa using on-board MAX32690.

When configured as a sensor node, the board runs an MQTT application and a web server that can be accessed via the board’s IP address. The board publishes its on-board temperature sensor data and other board information over MQTT, which can be viewed using the provided Windows application.

Full specifications on the ADIN1140 are available in the ADIN1140 data sheet available from Analog Devices, Inc., and must be consulted with ADIN1140 tech ref, ADIN1140 register control manual, and this user guide when using the EVAL-ADIN1140D1Z evaluation board.
