MAX31334

• 简化MAX31334的评估
• +1.1V至+5.5V单电源供电
• 经过验证的PCB布局
• 装配完成且经过测试

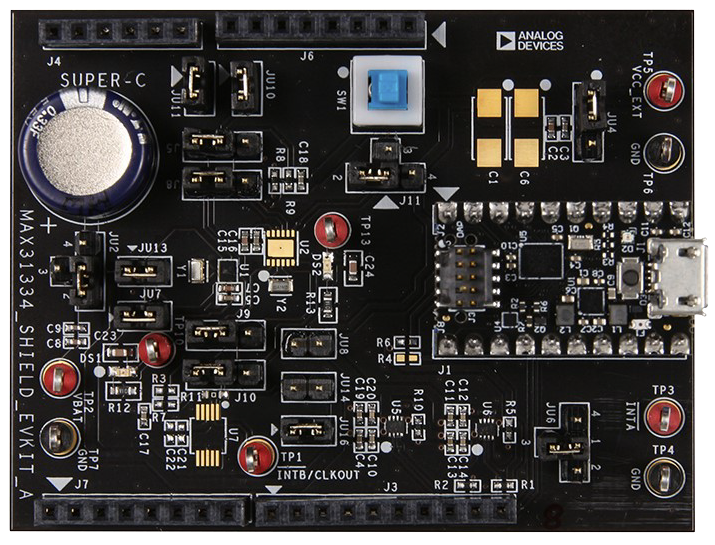

MAX31334扩展板评估套件（EV套件）是一款装配完成且经过测试的PCB，用于评估MAX31334，后者是一款集成电源开关、I²C接口和电源管理功能的超低功耗、低成本、实时时钟(RTC)。该扩展板评估套件由单电源（来自USB或外部电源）供电，板载晶体提供32.768kHz时钟信号。该器件通过MAX32625PICO板提供的I²C串行接口访问，该板通过USB端口连接到PC。

MAX31334扩展板评估套件提供评估MAX31334所需的硬件和软件图形用户界面(GUI)。该套件预安装了MAX31334。它通过MAX32625 PICO板和micro-USB电缆连接到PC。

应用

• 电子货架标签
• 超低功耗物联网模块
• 可穿戴医疗设备
• 温度记录器
• 资产追踪
• 电池供电设备

• Provides the user with a platform to evaluate the features and performance of the evaluation kit​
• Allows the user to prototype and test their IoT applications before moving on to full-scale development​
• Provides tools for analyzing the power consumption of the device, helping the user to optimize their applications for energy efficiency​
• Includes development tools, libraries, and documentation to assist user in writing and debugging their code​
• Helps the user analyze and study the different modulation schemes, data rates, and other parameters relevant to IoT communication​
• Comes with user-friendly interfaces, documentation, and software tools that simplify the integration process which can save developers time and effort when incorporating the LR1110 into their IoT devices​

The AD-MAX32LRWISE-SL development kit is a tool intended for designing solutions based on low-power, long range proprietary radio communication technique. This platform features the LR1110, an RF transceiver based on spread spectrum modulation techniques derived from chirp spread spectrum (CSS) technology, and supports a frequency range from 800 MHz to 960 MHz. This solution is also based on the MAX32670 ultralow power microcontroller based on ARM Cortex-M4 processor.​

The platform comes in an Arduino Uno form factor, with two PMOD connectors, and an ESP32 Dev Kit connector for easy-to-connect sensors and signal conditioning add-on modules. Complete with working software and hardware, as well as software examples, this kit makes it easier for customers to prototype and create connected systems and solutions for IoT applications.​

The base platform is accompanied with various Analog Devices add-on hardware but is also compatible with 3rd party hardware. A free programming and debugging tool called Maxim SDK is also provided by Analog Devices.​

The AD-MAX32LRWISE-SL development kit is complete with 1 base board, 1 sensor node, gateway setup essentials, and other accessories. However, customers also have the option to avail of the components individually as intended for their application development.​
