LTC6912

Dual Programmable Gain Amplifiers with Serial Digital Interface

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
特性
  • 2 Channels with Independent Gain Control
    • LTC6912-1: (0, 1, 2, 5, 10, 20, 50, and 100V/V)
    • LTC6912-2: (0, 1, 2, 4, 8, 16, 32, and 64V/V)
  • Offset Voltage = 2mV Max (–40°C to 85°C)
  • Channel-to-Channel Gain Matching of 0.1dB Max
  • 3-Wire SPITM Interface

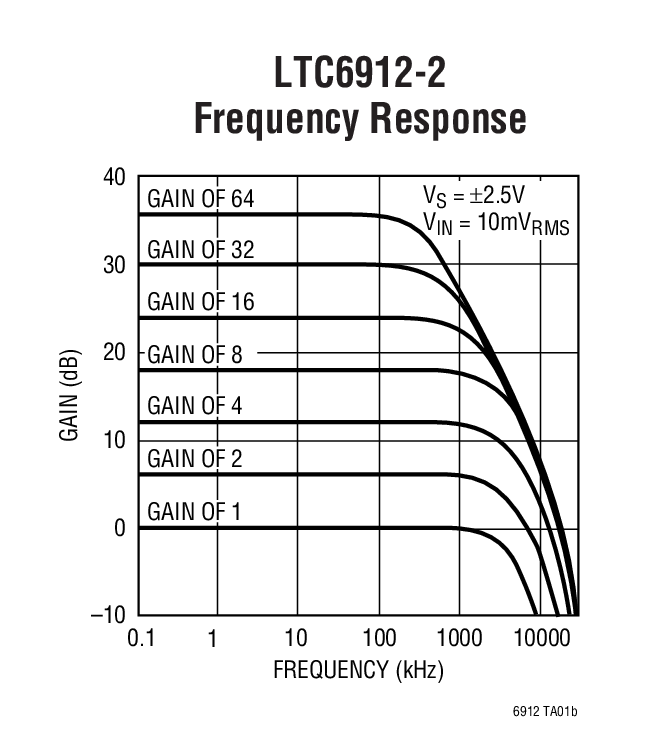

  • Extended Gain-Bandwidth at High Gains
  • Wired-OR Outputs Possible (2:1 Analog MUX Function)
  • Low Power Hardware Shutdown (GN-16 Only, 2µA Max at 2.7V)
  • Rail-to-Rail Input Range
  • Rail-to-Rail Output Swing
  • Single or Dual Supply: 2.7V to 10.5V Total
  • Input Noise: 12.6nV/√Hz
  • Total System Dynamic Range to 115dB

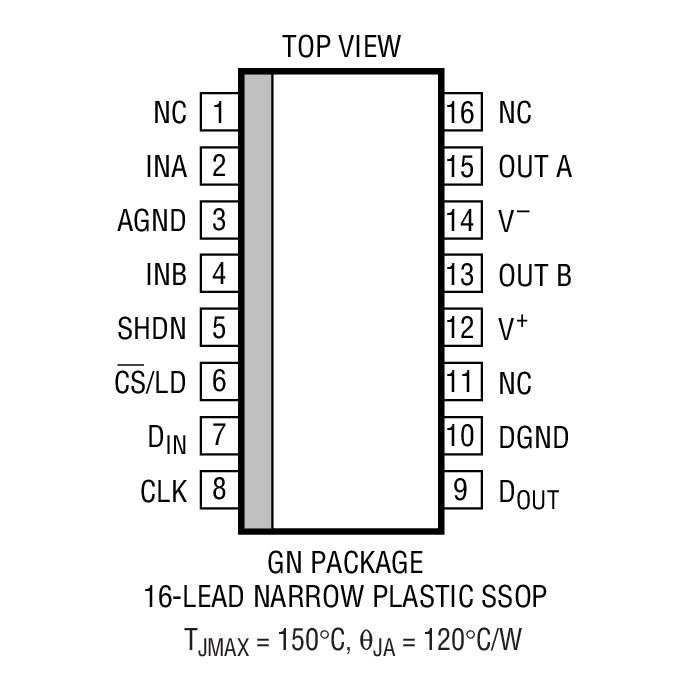

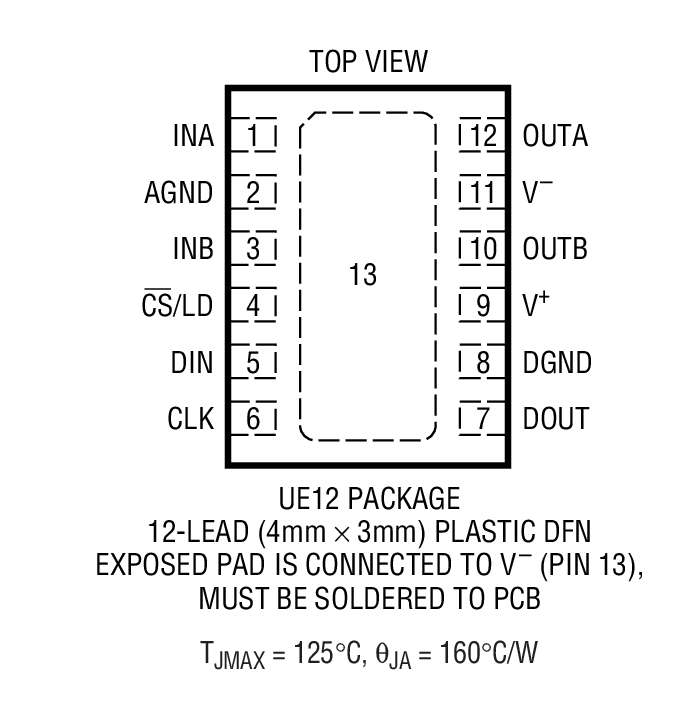

  • 16-Pin GN (SSOP) or 12-Pin DFN Package Options
更多细节
show more Icon

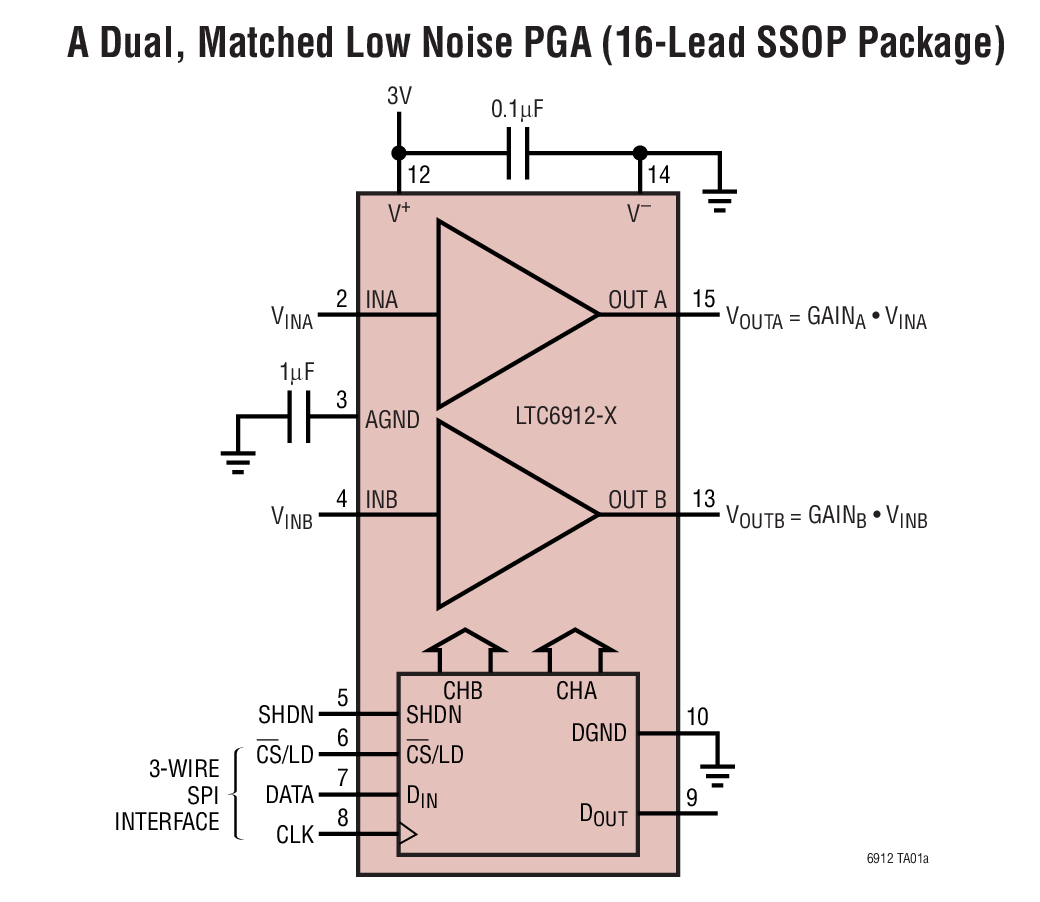

The LTC6912 is a family of dual channel, low noise, digitally programmable gain amplifiers (PGA) that are easy to use and occupy very little PC board space. The gains for both channels are independently programmable using a 3-wire SPI interface to select voltage gains of 0, 1, 2, 5, 10, 20, 50, and 100V/V (LTC6912-1 ); and 0, 1, 2, 4, 8, 16, 32, and 64V/V (LTC6912-2). All gains are inverting.

The LTC6912 family consists of 2 matched amplifiers with rail-to-rail outputs. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V total, the LTC6912-X family is offered in tiny SSOP and DFN-12 Packages.

Applications

  • Data Acquisition Systems
  • Dynamic Gain Changing
  • Automatic Ranging Circuits
  • Automatic Gain Control

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTC6912CDE-1#PBF
  • HTML
  • HTML
LTC6912CDE-1#TRPBF
  • HTML
  • HTML
LTC6912CDE-2#PBF
  • HTML
  • HTML
LTC6912CDE-2#TRPBF
  • HTML
  • HTML
LTC6912CGN-1#PBF
  • HTML
  • HTML
LTC6912CGN-1#TRPBF
  • HTML
  • HTML
LTC6912CGN-2#PBF
  • HTML
  • HTML
LTC6912CGN-2#TRPBF
  • HTML
  • HTML
LTC6912HGN-1#PBF
  • HTML
  • HTML
LTC6912HGN-1#TRPBF
  • HTML
  • HTML
LTC6912HGN-2#PBF
  • HTML
  • HTML
LTC6912HGN-2#TRPBF
  • HTML
  • HTML
LTC6912IDE-1#PBF
  • HTML
  • HTML
LTC6912IDE-1#TRPBF
  • HTML
  • HTML
LTC6912IDE-2#PBF
  • HTML
  • HTML
LTC6912IDE-2#TRPBF
  • HTML
  • HTML
LTC6912IGN-1#PBF
  • HTML
  • HTML
LTC6912IGN-1#TRPBF
  • HTML
  • HTML
LTC6912IGN-2#PBF
  • HTML
  • HTML
LTC6912IGN-2#TRPBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

10月 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC6912CGN-1#PBF

量产

LTC6912CGN-1#TRPBF

量产

LTC6912CGN-2#PBF

量产

LTC6912CGN-2#TRPBF

量产

LTC6912HGN-1#PBF

量产

LTC6912HGN-1#TRPBF

量产

LTC6912HGN-2#PBF

量产

LTC6912HGN-2#TRPBF

量产

LTC6912IGN-1#PBF

量产

LTC6912IGN-1#TRPBF

量产

LTC6912IGN-2#PBF

量产

LTC6912IGN-2#TRPBF

量产

4月 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC6912CGN-1#PBF

量产

LTC6912CGN-1#TRPBF

量产

LTC6912CGN-2#PBF

量产

LTC6912CGN-2#TRPBF

量产

LTC6912HGN-1#PBF

量产

LTC6912HGN-1#TRPBF

量产

LTC6912HGN-2#PBF

量产

LTC6912HGN-2#TRPBF

量产

LTC6912IGN-1#PBF

量产

LTC6912IGN-1#TRPBF

量产

LTC6912IGN-2#PBF

量产

LTC6912IGN-2#TRPBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

10月 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC6912CGN-1#PBF

量产

LTC6912CGN-1#TRPBF

量产

LTC6912CGN-2#PBF

量产

LTC6912CGN-2#TRPBF

量产

LTC6912HGN-1#PBF

量产

LTC6912HGN-1#TRPBF

量产

LTC6912HGN-2#PBF

量产

LTC6912HGN-2#TRPBF

量产

LTC6912IGN-1#PBF

量产

LTC6912IGN-1#TRPBF

量产

LTC6912IGN-2#PBF

量产

LTC6912IGN-2#TRPBF

量产

4月 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC6912CGN-1#PBF

量产

LTC6912CGN-1#TRPBF

量产

LTC6912CGN-2#PBF

量产

LTC6912CGN-2#TRPBF

量产

LTC6912HGN-1#PBF

量产

LTC6912HGN-1#TRPBF

量产

LTC6912HGN-2#PBF

量产

LTC6912HGN-2#TRPBF

量产

LTC6912IGN-1#PBF

量产

LTC6912IGN-1#TRPBF

量产

LTC6912IGN-2#PBF

量产

LTC6912IGN-2#TRPBF

量产

软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 2

reference details image

DC861A-B

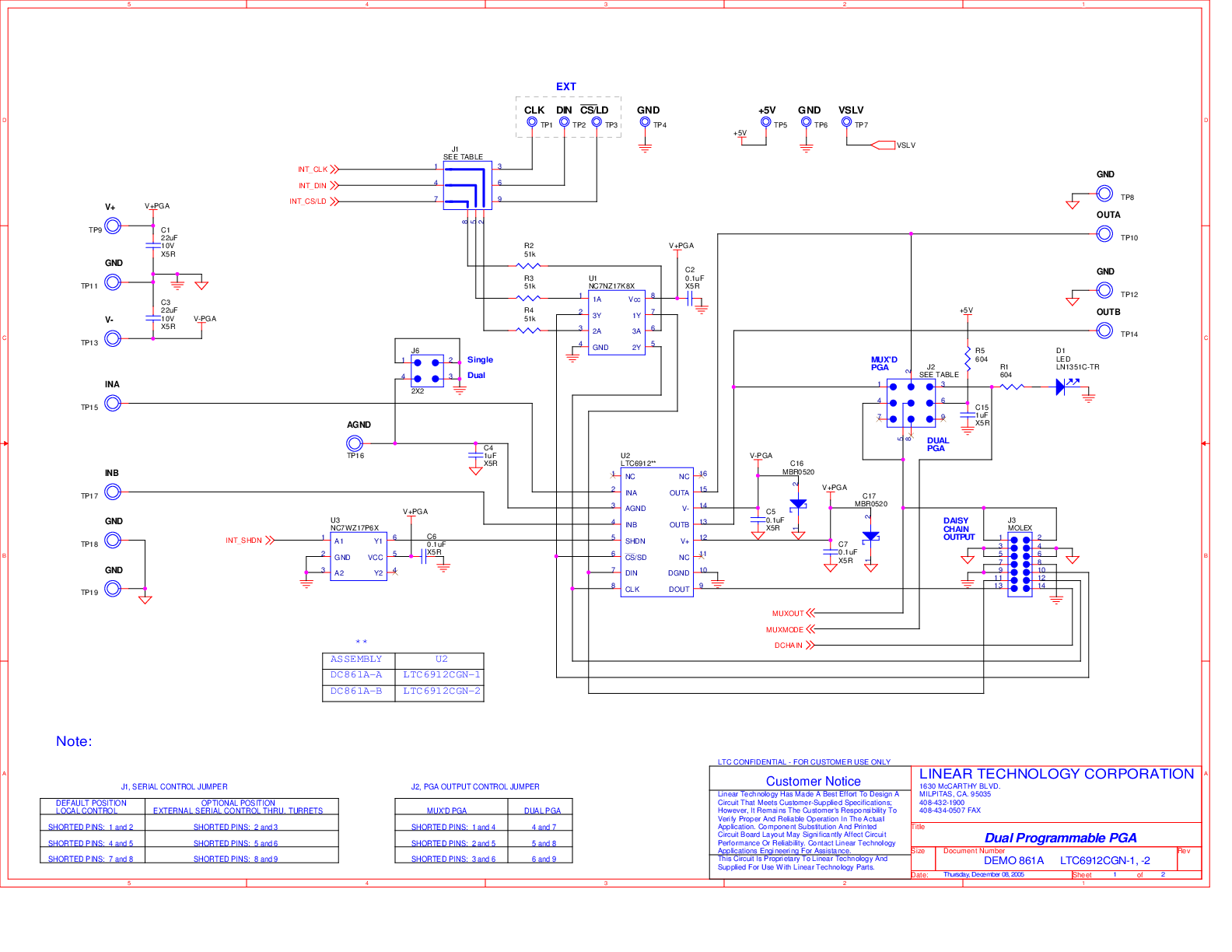

LTC6912双通道数字控制PGA/可编程数据采集测量和控制系统
