LTC4402
过期Multiband RF Power Controllers for EDGE/TDMA
- 产品模型
- 4
产品详情
- Supports AM Modulation in EDGE/TDMA (ANSI-136) Applications
- Single Output RF Power Amplifier Control (LTC4402-1)
- Dual Output RF Power Amplifier Control (LTC4402-2)
- Internal Schottky Diode Detector with >40dB Range
- Wide Input Frequency Range: 300MHz to 2.4GHz
- Autozero Loop Cancels Offset Errors and Temperature Dependent Offsets
- Wide VIN Range: 2.7V to 6V
- 450kHz Loop Bandwidth
- Allows Direct Connection to Battery
- RF Output Power Set by External DAC
- Internal Frequency Compensation
- Rail-to-Rail Power Control Outputs
- Low Operating Current: 1mA
- Low Shutdown Current: <10µA
- PCTL Input Filter

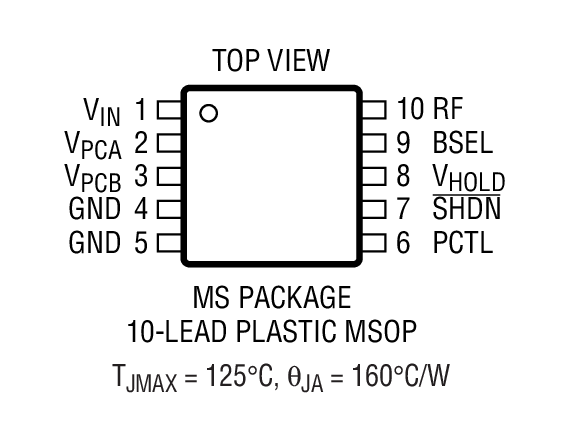

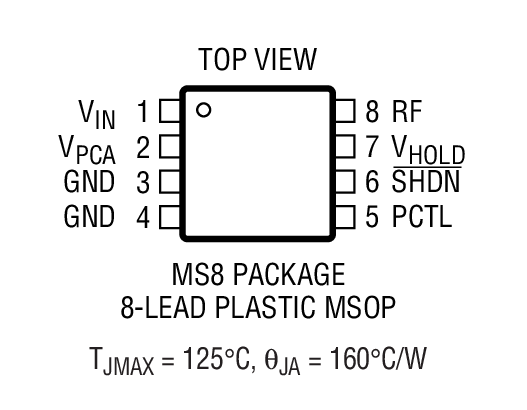

- Available in a 8-Pin MSOP Package (LTC4402-1) and 10-Pin MSOP (LTC4402-2)

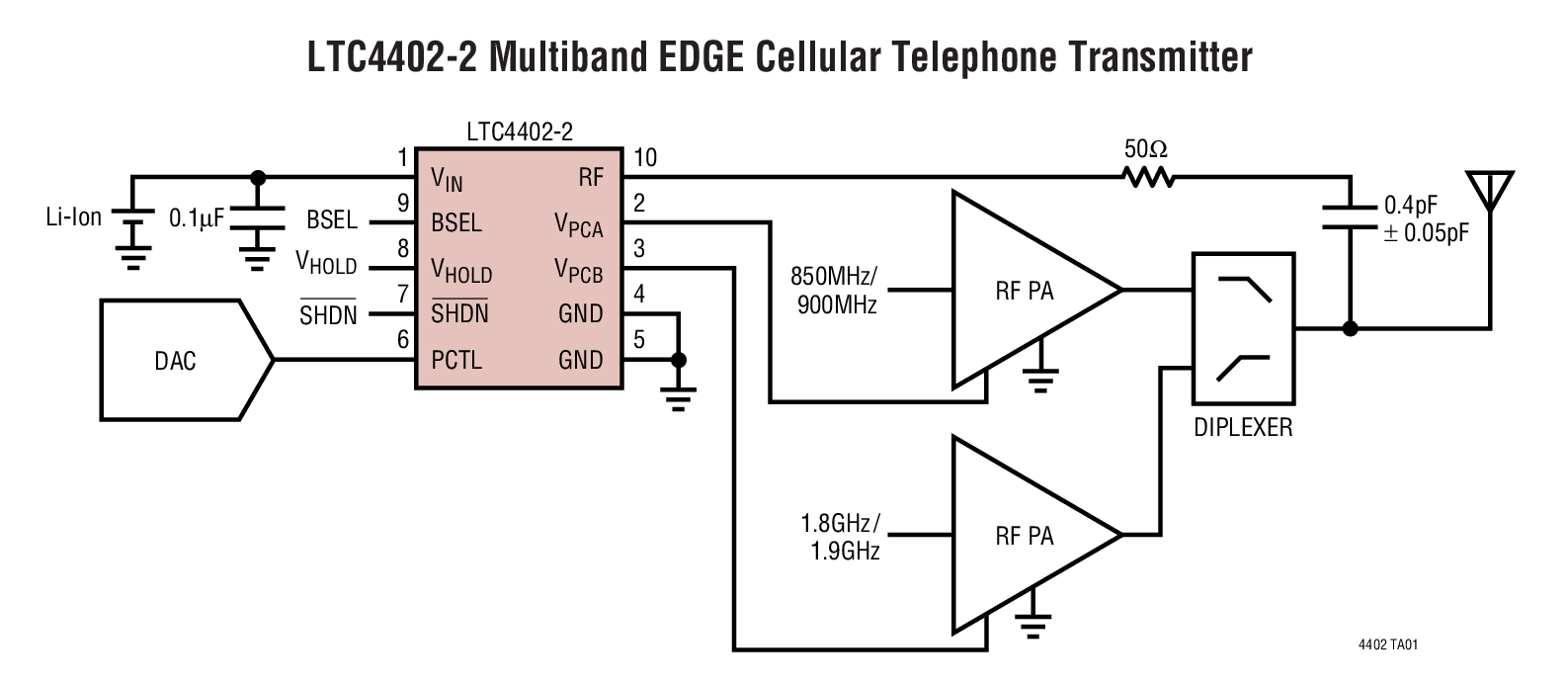

The LTC4402-2 is a multiband RF power controller for RF power amplifiers operating in the 300MHz to 2.4GHz range. The LTC4402-2 has two outputs to control dual TX PA modules with two control inputs. An internal sample and hold circuit enables the LTC4402-2 to be used with AM modulation via the carrier or PA supply. The input voltage range is optimized for operation from a single lithium-ion cell or 3x NiMH.
RF power is controlled by driving the RF amplifier power control pins and sensing the resultant RF output power. The RF sense voltage is peak detected using an on-chip Schottky diode. This detected voltage is compared to the DAC voltage at the PCTL pin to control the output power.
The LTC4402-1 is a single output RF power controller with identical performance to the LTC4402-2. The LTC4402-1 has one output to control a single TX PA or dual TX PA module with a single control input and is available in an 8-pin MSOP package.
Internal and external offsets are cancelled over temperature by an autozero control loop. The shutdown feature disables the part and reduces the supply current to <10µA.
Applications
- Multiband GSM/GPRS/EDGE Cellular Phones
- PCS Devices
- Wireless Data Modems
- U.S. TDMA Cellular Phones
参考资料
数据手册 1
可靠性数据 1
应用笔记 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号,脚注和 3D模型 |
---|---|---|---|
LTC4402-1EMS8#PBF | 8-Lead MSOP | ||
LTC4402-1EMS8#TRPBF | 8-Lead MSOP | ||
LTC4402-2EMS#PBF | 10-Lead MSOP | ||
LTC4402-2EMS#TRPBF | 10-Lead MSOP |
产品型号 | 产品生命周期 | PCN |
---|---|---|
9月 10, 2019 - 19_0033 Obsolescence of all materials of LTC4400-1, LTC4400-2, LTC4401-1, LTC4401-2, LTC4402-1, LTC4402-2, LTC4403-1, LTC4403-2, LTC1957-1, LTC1957-2, LTC1758-1, LTC1758-2 |
||
LTC4402-1EMS8#PBF | 过期 | |
LTC4402-1EMS8#TRPBF | 过期 | |
LTC4402-2EMS#PBF | 过期 | |
LTC4402-2EMS#TRPBF | 过期 |
