ADR1001

Oven-Controlled, Buried Zener, Precision Voltage Reference

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • LTZ1000-class, ultrastable, 6.6 V, buried Zener reference
  • On-chip, thermally regulated, matched resistor-dividers
  • Precision 5 V output ±0.25% (RISET = 102 Ω, TJ = 70°C)
  • 5 V output noise (0.1 Hz to 10 Hz): 0.13 ppm p-p
  • Zener, thermal loop op amps, and buffer provided on chip
  • Input voltage range: 9 V to 36 V
  • Hermetic, surface-mount package, 20-terminal LCC
  • Ovenization ensures ultra-low temperature drift
更多细节
show more Icon

The ADR1001 is a fully integrated, ultra-low drift, buried Zener precision voltage reference solution in a single chip. By integrating the entire signal conditioning circuitry required by the LTZ1000 into a single chip, the ADR1001 provides a significant reduction in overall solution area, while simplifying the design process by eliminating the many challenges of building a discrete circuit solution.

The on-chip heater, combined with Analog Devices buried Zener technology, allows the ADR1001 to achieve sub-ppm temperature coefficient performance and single-digit ppm long-term drift performance. Besides providing best-in-class precision in all vectors, the ADR1001 incorporates ease-of-use features to reduce cost and design-in effort. These features include a pin-programmable internal thermostat, resistor-programmable heater current limit, open-collector power-good flag pin, hermetic surface-mount package, and an extra matched resistor pair. By default, the temperature setpoint is 70°C when no external resistor is connected to the TSET pin, and the internal heater current limit is 100 mA with HTR_ILIM shorted to HTR_GND.

The integrated thin-film resistors and on-chip buffer can be used to provide standard output voltage reference values that are compatible with modern precision converters. The ADR1001 divider network and output buffer combination is trimmed to within ±0.25% initial accuracy. In addition, a pair of matched resistors is also included on-chip, allowing customers to easily generate a negative voltage reference or a gain of 2 with minimal impact to the output accuracy or drift.

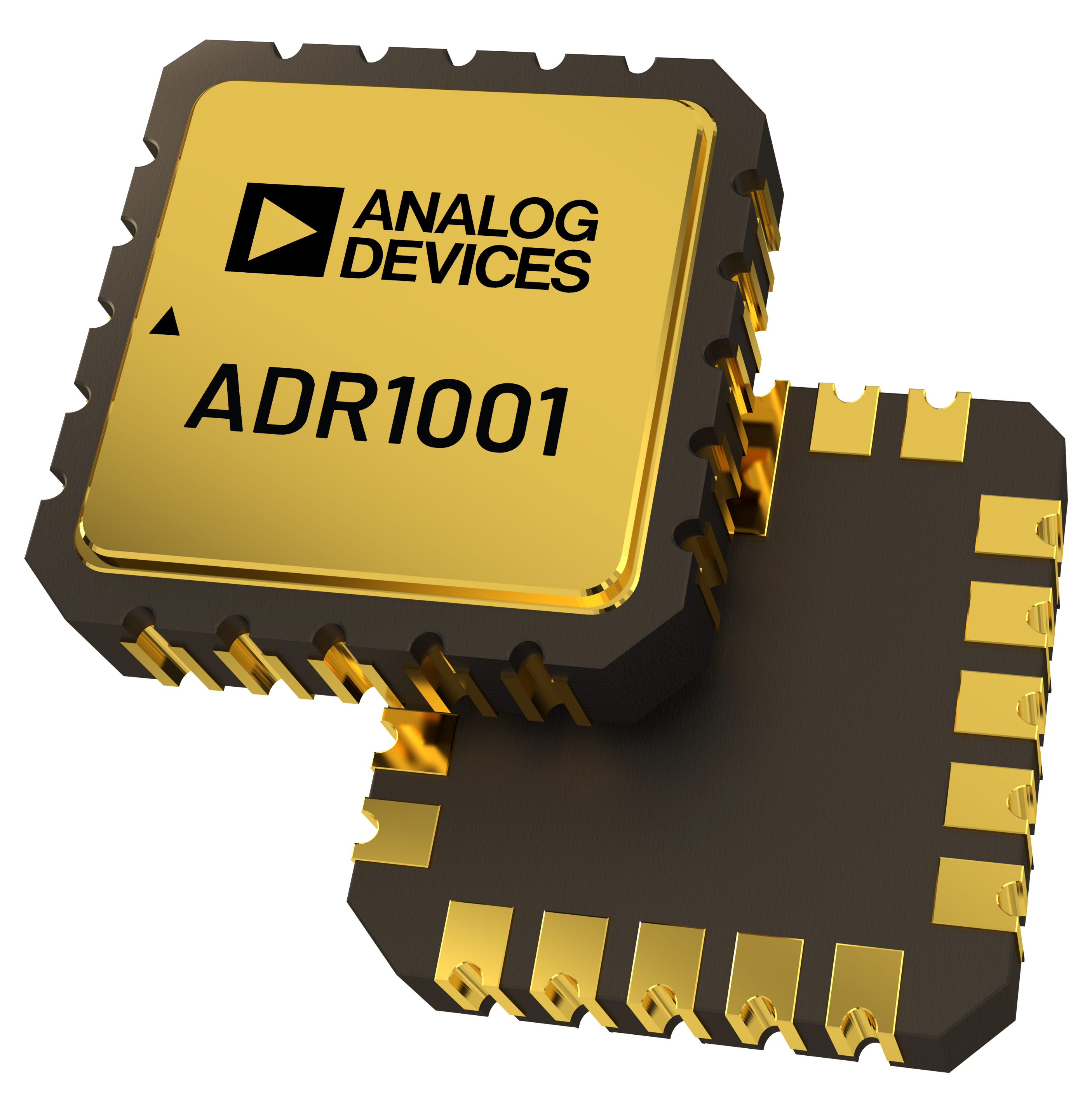

The ADR1001 is packaged in a hermetic, ceramic, 20-terminal leadless chip carrier (LCC). The surface-mount ceramic package allows customers to eliminate the through-hole component soldering step while still retaining the hermetic seal of a classic through-hole metal can package.

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
ADR1001AEZ
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 1

reference details image

EVAL-ADR1001

Evaluation Board for the ADR1001 Ultrastable, Buried Zener, Voltage Reference in 20-Terminal LCC

zoom

EVAL-ADR1001

Evaluation Board for the ADR1001 Ultrastable, Buried Zener, Voltage Reference in 20-Terminal LCC

Evaluation Board for the ADR1001 Ultrastable, Buried Zener, Voltage Reference in 20-Terminal LCC

特性和优点

  • Easy to Carry and Power Up "Pocket Calibrator" Style
  • Edge mounted SMA connector
  • Simple connection to test equipment and other circuits
  • RoHS compliant

产品详情

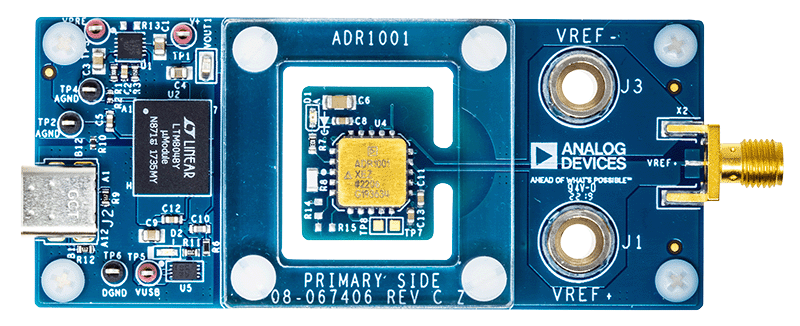

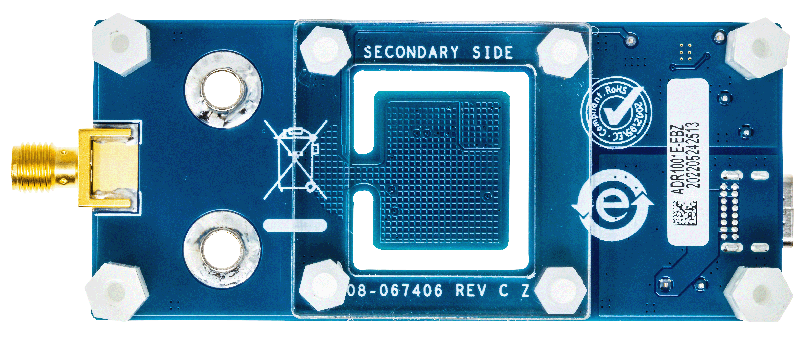

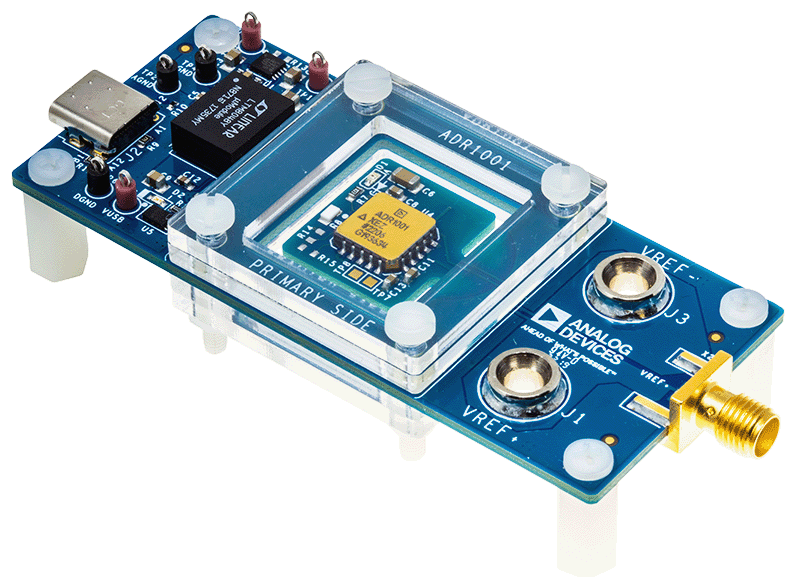

The ADR1001E-EBZ allows the evaluation of the ADR1001, an ultrastable 6.6 V shunt voltage reference with a resistor divider in a 20-terminal LCC package.

Isolated power means that the reference output is effectively floated, removing possible ground loops. The isolation is bridged only by a 1 MΩ resistor. Power can be supplied via a USB-C cable, or 5 V can be applied to VUSB, or power can be back driven onto the regulator outputs at VPRE or V+. The ultrastable 6.6 V output is divided down to a precision trimmed 5 V, which is routed to both banana jacks and an edge mounted SMA connector.
