ADXL357B

推荐用于新设计

Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers

数据手册 (Rev. D) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 0 g offset vs. temperatures (all axes): 0.75mg/°C maximum
  • Ultralow noise spectral density (all axes): 75 µg/√Hz
  • Low power, VSUPPLY (LDO regulator enabled)
    • ADXL356 in measurement mode: 150 µA
    • ADXL357/ADXL357B in measurement mode: 200 µA
    • ADXL356/ADXL357/ADXL357B in standby mode: 21 µA
  • ADXL356 has user adjustable analog output bandwidth
  • ADXL357/ADXL357B digital output features
    • Digital SPI and limited I2C interfaces supported
    • 20-bit ADC
    • Data interpolation routine for synchronous sampling
    • Programmable high- and low-pass digital filters
  • Integrated temperature sensor
  • Voltage range options
    • VSUPPLY with integral regulators: 2.25 V to 3.6 V
    • V1P8ANA, V1P8DIG with internal LDO regulator bypassed: 1.8 V typical ± 10%
  • Operating temperature range: -40°C to +125°C
  • 14-terminal, 6 mm × 5.6 mm × 2.2 mm, LCC package
ADXL357B
Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers

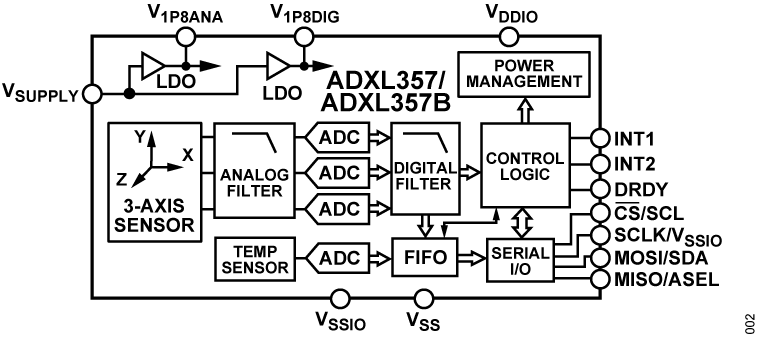

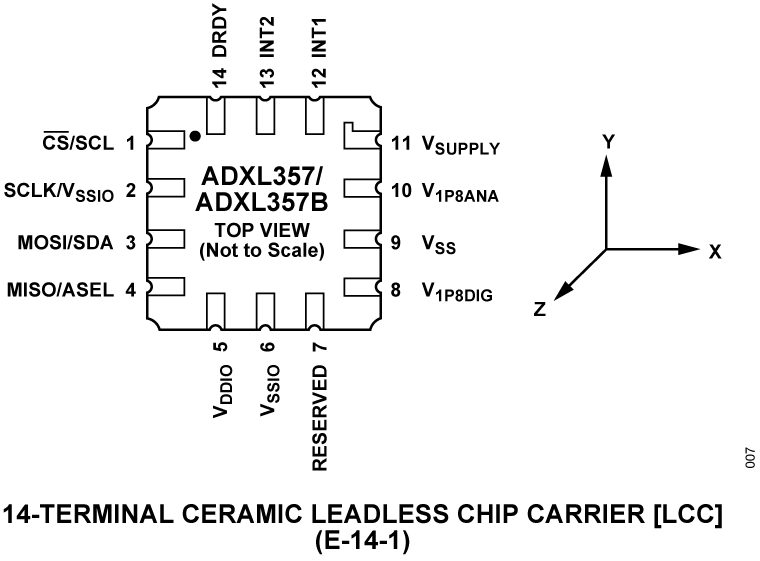

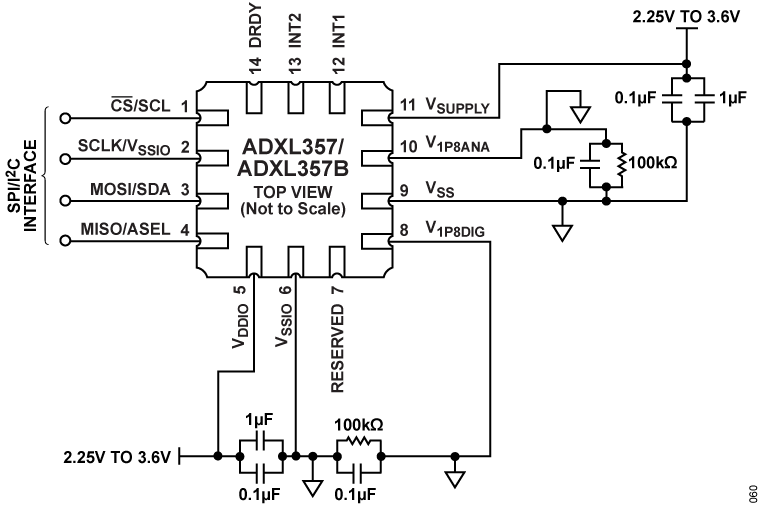

ADXL357_ADXL357B Functional Block Diagram ADXL357_ADXL357B Circuit Diagram ADXL357_ADXL357B Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADXL357B

Evaluating the ADXL357B Low Noise, Low Drift, Low Power 3-Axis MEMS Accelerometer

立即购买 更多内容

特性和优点

  • 2 sets of spaced vias for population of 5-pin headers
  • Easily attached to a prototyping board or PCB
  • Small size and board stiffness minimize the impact on the system and acceleration measurement

产品详情

The EVAL-ADXL357B is a simple evaluation board that allows quick evaluation of the performance of the ADXL357B, low noise, low power accelerometer. The EVAL-ADXL357B is ideal for evaluating the ADXL357B in an existing system because the stiffness and the small size of the EVAL-ADXL357B minimize the effect of the board on both the system and acceleration measurements.

The ADXL357B is a low noise density, low 0 g offset drift, low power, 3-axis microelectromechanical system (MEMS) accelerometer with selection measurement ranges (±10 g, ±20 g, and ±40 g). The ADXL357B offers industrial leading noise, minimal offset drift over temperature, and long-term stability, enabling precision applications with minimal calibration.

The low drift, low noise, and low power ADXL357B enables accurate tilt measurement in an environment with high vibration, such as airborne inertial measurement units (IMUs). The low noise over higher frequencies is ideal for wireless condition monitoring.

The ADXL357B multifunction pin names are referenced only by their relevant function for either the serial peripheral interface (SPI) or limited I2C interface.

For full details on the ADXL357B, see the ADXL357B data sheet, which can be consulted in conjunction with this user guide when using the EVAL-ADXL357B evaluation board.
EVAL-ADXL357B
Evaluating the ADXL357B Low Noise, Low Drift, Low Power 3-Axis MEMS Accelerometer

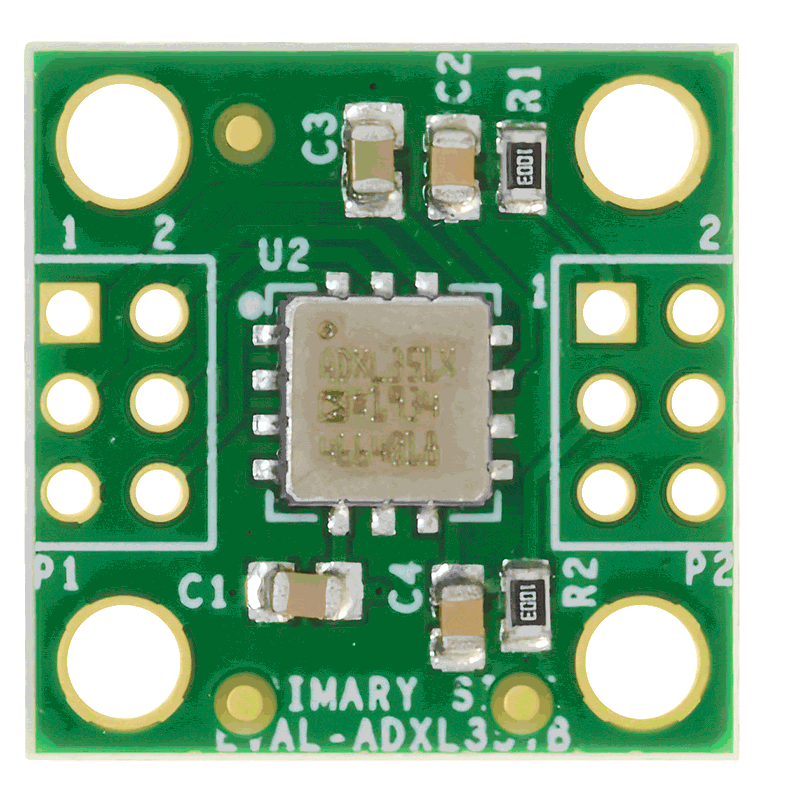

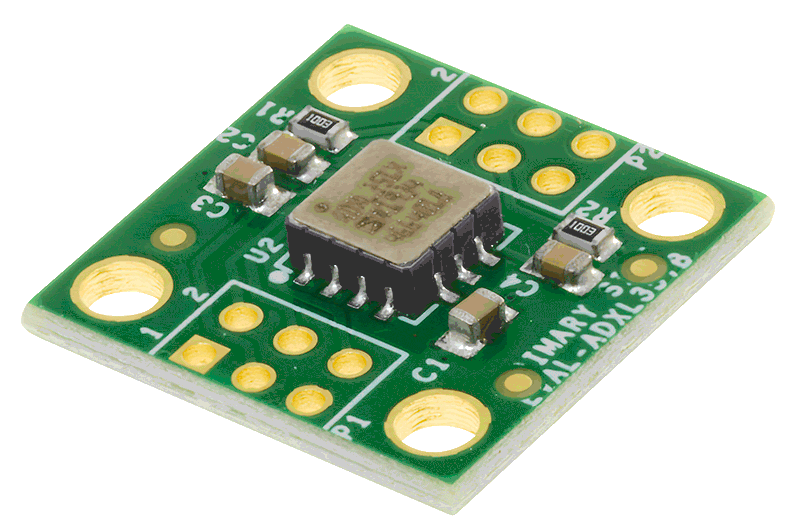

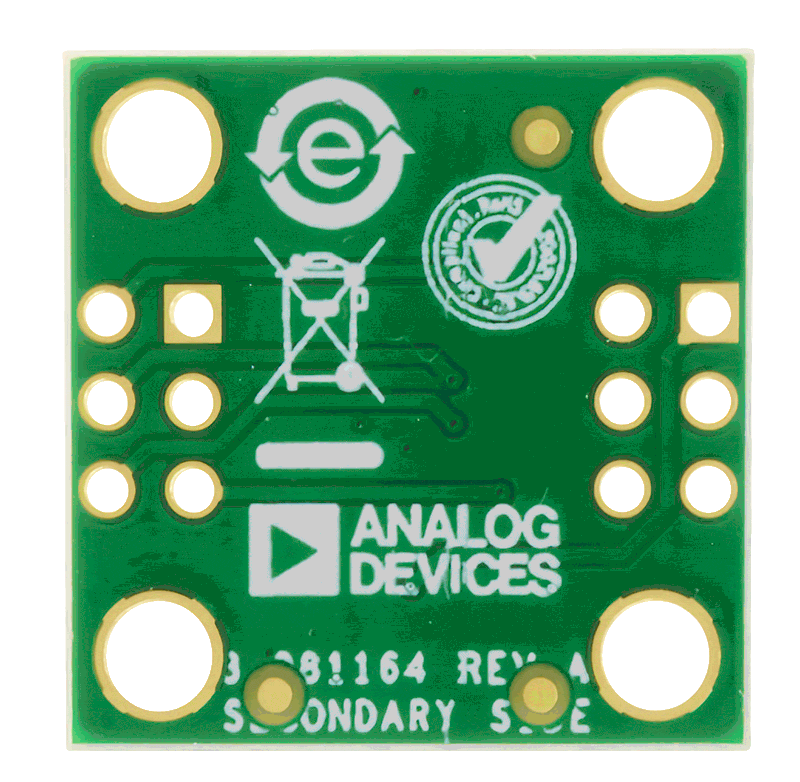

EVAL-ADXL357B Board Photo Angle View EVAL-ADXL357B Board Photo Top View EVAL-ADXL357B Board Photo Bottom View
