Don’t Get Zapped! Protection Strategies for Medical Device Safety

×

Figure 1



Question:

Why does IEC 60601 care about how a medical device behaves during single-fault conditions, not just normal operation?

Answer:

In medical environments, safety cannot depend on everything working perfectly. IEC 60601 assumes that components can fail and requires designers to prove that patients and healthcare professionals remain protected even when a single fault—such as insulation breakdown or grounding failure—occurs. This is why the standard defines means of protection (MOP), ensuring that adequate insulation, isolation, and component spacing are in place so that a single failure does not result in dangerous electric shock, especially when devices are in direct contact with the human body.

Introduction

Medical devices are unique in their operational environment. Unlike consumer electronics, they often interact directly with the human body, sometimes in critical or life-sustaining ways. Whether it’s a defibrillator, a patient monitor, or an infusion pump, the stakes are high. A failure in electrical isolation or insulation could result in serious injury. To address these risks, international standards have been developed to ensure that medical devices meet rigorous safety criteria. IEC 60601 ensures the safety and performance of medical electrical equipment. It sets out requirements that help protect patients and healthcare workers from electrical, mechanical, and thermal hazards. Compliance is often necessary for medical devices to be approved for use in hospitals and clinics around the world. One of the most important standards in this domain is IEC 60601-1, which governs the safety and essential performance of medical electrical equipment. Within this standard, the concept of means of protection (MOP) is defined, and its classifications are means of operator protection (MOOP) and means of patient protection (MOPP) to differentiate between the protection required for operators and patients. Understanding these classifications is essential for engineers and designers making medical devices. It affects component selection, PCB layout, insulation strategy, and overall system architecture.

Understanding Means of Protection

What Are MOOP and MOPP?

MOOP and MOPP are acronyms that represent different levels of electrical protection in medical devices. These classifications are used to determine how much isolation and insulation a device must provide to prevent electrical shock. MOOP applies to medical staff who use the equipment but are not physically connected to it, while MOPP applies to patients who may be directly connected via electrodes, probes, or other conductive paths. Because patients are more vulnerable—often in compromised states and physically linked to the device—MOPP standards are significantly more stringent. Operators, being trained professionals and not directly connected to internal circuitry, face a lower risk, which is why MOOP requirements are less rigorous.

Key Technical Requirements

The IEC 60601-1 standard outlines specific requirements for insulation, isolation and working voltage, creepage and clearance distance, and leakage current. These parameters vary depending on whether the device needs to meet MOOP or MOPP classification. MOOP typically requires 1500 VAC for basic insulation and 3000 VAC for double insulation. In terms of creepage, MOPP requires 4 mm for basic and 8 mm for double insulation. See Table 1 for further classification levels.

Basic insulation is the first layer of protection that prevents direct contact with electrical parts, helping to reduce the risk of electric shock. Double insulation is a combination of a supplementary and a basic layer, providing a second layer of protection to ensure safety even if the first layer fails. This is especially important in devices that don’t rely on grounding for protection. Medical devices also must limit leakage current to safe levels, especially under fault conditions. For patient-connected devices, leakage current must be extremely low—often below 100 μA. Together, these types of insulation help ensure the device is safe for both patients and healthcare professionals.

Applications in Medical Devices

In patient-connected devices, which require compliance with MOPP standards, robust isolation is essential to safeguard patients from electrical hazards. These devices include electrocardiogram (ECG) monitors, which measure heart activity; infusion pumps, which deliver precise doses of medication; ultrasound probes, used for diagnostic imaging; and defibrillators, which administer high voltage shocks to restore heart rhythm.

The operator-only devices, which are used by medical staff without direct patient contact, typically require compliance with MOOP standards. While the isolation requirements are less stringent, these devices still demand high reliability and performance. Examples include laboratory analyzers for blood and tissue analysis, diagnostic imaging systems like magnetic resonance imaging (MRI) and computed tomography (CT) scanners, and medical workstations used for visualization and control.

Design Strategies for MOP Compliance

Risk-Based Design

Risk analysis is a fundamental approach in the development of medical electrical equipment, ensuring both safety and regulatory compliance. The process begins with a comprehensive risk assessment, guided by standards such as ISO 14971 risk management process and IEC 60601-1. This assessment involves evaluating the device’s intended use, the environment in which it will operate, and the characteristics of its users—whether they are healthcare professionals, caregivers, or patients.

Critical considerations include whether the device will be used in a clinical, home, or mobile setting and whether it will be operated by trained personnel or lay users. A key aspect of the assessment is determining the nature of the device’s interaction with the patient. If the device does not make direct contact with the patient, such as in the case of laboratory analyzers or imaging equipment operated remotely, compliance with MOOP may be sufficient. However, if the device interfaces with the patient—either invasively, like catheters and probes, or noninvasively, like ECG electrodes—then MOPP compliance becomes mandatory. Additionally, the design must account for single fault conditions, ensuring that the device remains safe even if one protective measure fails. This is a core requirement of IEC 60601-1, which mandates testing under both normal and fault conditions. All risk management activities, including hazard identification, risk estimation, control measures, and verification of safety features, must be thoroughly documented. This documentation supports regulatory submissions and audits, providing traceability and justification for design decisions based on risk analysis.

Isolation Techniques

Isolation is a fundamental design strategy in medical electronics to ensure patient and operator safety, particularly in compliance with MOOP and MOPP. These requirements mandate isolation between high voltage and low voltage domains to prevent hazardous voltages from reaching sensitive circuitry or the patient interface. Figure 1 illustrates achieving the means of protection requirements for an AC/DC power supply in a medical device application with enough insulation to protect the operator and patient.

To achieve this, designers employ a variety of isolation components and techniques, each with distinct advantages and trade-offs:

1. Isolation Transformers

These are commonly used in power supplies to provide galvanic isolation between input and output. Medical-grade isolation transformers are specifically engineered to meet high dielectric strength (often several kilovolts) and ultralow leakage current specifications, which are critical for patient safety. They are robust and reliable, making them ideal for applications requiring continuous power delivery with high integrity.

2. Optocouplers (Optoisolators)

Optocouplers use a light-emitting diode (LED) and a photodetector to transmit signals across an isolation barrier. The electrical signal is converted to light, transmitted across a nonconductive gap, and then converted back to an electrical signal. While optocouplers are effective and widely used, they have limitations such as slower signal transmission speeds, limited bandwidth, and potential degradation over time due to LED aging. These factors can affect long-term reliability in high performance systems.

3. Digital Isolators

Digital isolators such as iCoupler^® are modern alternatives to optocouplers, utilizing capacitive, magnetic, or RF coupling to transmit digital signals across isolation barriers. They offer significant improvements in speed, data integrity, and longevity. Unlike optocouplers, digital isolators are not subject to LED wear-out mechanisms, making them more suitable for high-speed communication interfaces such as SPI, I^²C, or UART in medical devices. Additionally, many digital isolators are designed to meet reinforced isolation standards, supporting both MOOP and MOPP requirements.

4. Isolation in Communication Interfaces

For systems with external connectivity (for example, USB, Ethernet), isolation is also required to prevent ground loops and fault propagation. Isolated transceivers and isolation ICs are used to maintain signal integrity while protecting the system from external surges or faults. The main hurdle is supplying power to components located on the isolated side.

5. PCB Layout Considerations

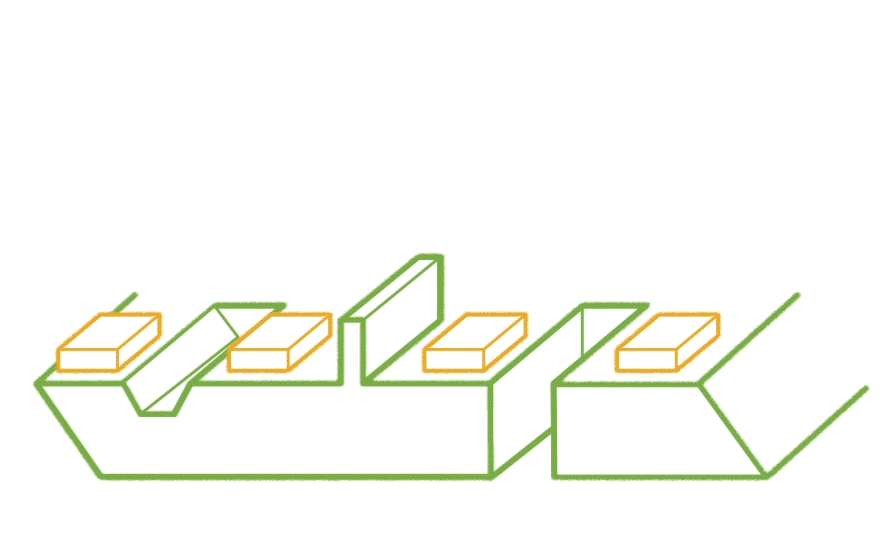

Proper PCB layout is a critical factor in ensuring medical devices meet the safety requirements outlined in IEC 60601-1, particularly regarding creepage and clearance distances. These distances are essential for preventing electrical shock and ensuring patient and operator safety. Illustrated in Figure 2, creepage refers to the shortest path between two conductive elements along the surface of an insulating material, while clearance is the shortest path through air. To comply with the standard, designers must carefully space high voltage traces away from low voltage traces, following specific guidelines based on working voltage and material group. Strategic use of slots and isolation barriers can effectively increase creepage distances without expanding the overall board size, which is especially useful in compact medical device designs. Additionally, selecting materials with appropriate comparative tracking index (CTI) ratings and considering environmental factors such as altitude and pollution degree are essential for accurate spacing. All layout decisions should be integrated into the device’s broader risk management strategy to ensure compliance under both normal and fault conditions, ultimately contributing to the safety and reliability of the medical device.

Leakage Current Management

Under IEC 60601-1, controlled leakage current is essential for ensuring the safety and reliability of medical electrical equipment. Figure 3 shows the different leakage currents in medical devices. The standard defines various leakage currents—earth, touch, patient, and patient auxiliary—arising from insulation flaws or capacitive coupling. Leakage current refers to the unintended flow of electrical current through an abnormal or undesired path, often occurring when a device is powered off or when insulation fails. This phenomenon can happen in any electrical system and may lead to issues such as energy waste, circuit breaker trips, electrical noise, overvoltage, fire hazards, or even electric shock—especially if the current finds a path to ground through a human body. Common causes include poor insulation, grounding problems, environmental factors like temperature, and imperfections in electronic components.

The standard mandates testing under normal and single fault conditions using a human body model to simulate realistic impedance and frequency responses. Strict leakage limits are set, especially for cardiac applications. In the context of IEC 60601-1 Type B, BF, and CF refer to classifications of applied parts—the components of a medical device that come into physical contact with the patient. These classifications are primarily concerned with protection against electrical shock, and they differ based on the nature and location of patient contact.

• Type B (body): Basic protection, grounded, no direct patient contact (for example, hospital beds).
• Type BF (body floating): Enhanced insulation for conductive skin contact (for example, ultrasound probes).
• Type CF (cardiac floating): Highest protection for direct heart contact (for example, pacemaker leads).

Designers can reduce leakage using low leakage components, optimized grounding, shielding, and filtering. Compliance is verified via rigorous testing, including IEC 62353 in service testing of medical electrical equipment for routine checks and fault simulations, ensuring safe operation for both patients and operators.

Testing and Validation

After completing the design of a medical electrical device, thorough testing is required to ensure compliance with IEC 60601-1 standards. This includes verifying safety under both normal and fault conditions through key electrical tests. Dielectric strength testing checks insulation integrity by applying high voltages. Insulation resistance testing ensures isolated components prevent unintended current flow, while leakage current testing simulates fault scenarios to confirm leakage remains within safe limits. Creepage and clearance distances are assessed with stricter requirements for components interfacing with patients, and insulation must meet specific thickness and strength criteria—often requiring reinforced insulation for higher protection. Devices are also tested under single fault conditions, such as short or open circuits and environmental stress, to ensure continued safety. To maintain compliance throughout the device’s lifecycle, routine and post-repair testing is conducted, forming a comprehensive framework for safe and reliable operation.

ADI Solutions for MOP

Isolated Power

ADI’s isolated power converters use transformer-based isolation instead of optocouplers. This provides better performance, longer life, and higher reliability. Many of these devices offer reinforced insulation, making them suitable for 2× MOPP applications. The ADuM5020 is a fully integrated isolated DC-to-DC converter with low electromagnetic interference. It supports high working voltage and is suitable for medical device applications.

Isolated Gate Drivers

The ADuM4120 is an isolated gate driver designed for switching applications. It offers reinforced isolation and fast switching speeds, making it ideal for driving power transistors in isolated power supplies. Gate drivers are essential in systems where high voltage switching must be controlled from a low voltage domain. ADI’s gate drivers ensure that this control is safe and reliable.

Standard Data Isolator

RS-232, a reliable communication standard in medical devices for years, especially when paired with isolation components like the ADuM2201 that feature high isolation voltage and can meet safety standards such as 2× MOPP. However, USB provides alternate solutions in high performance and consumer-facing designs.

With isolation solutions like the ADuM4160 and the LTM2884, USB can now meet both MOOP and MOPP requirements, making it suitable for patient-connected devices such as infusion pumps, monitors, and diagnostic tools. These isolators ensure safe data exchange with nonmedical systems while protecting patients from electrical risks.

Even wireless medical devices often include USB ports for charging and firmware updates. Since these ports can be accessed at any time, isolation remains essential. Although USB requires physical cabling, its safety and versatility, especially when properly isolated, make it a strong choice for modern medical designs alongside RS-232 where needed.

Conclusion

MOOP and MOPP are essential classifications in medical device safety, guiding engineers in designing systems that protect both operators and patients from electrical hazards. The IEC 60601-1 standard provides clear guidelines for insulation, isolation, and leakage current, but implementing these requirements demands careful planning and component selection. ADI offers a comprehensive portfolio of isolation and power management solutions that support compliance with MOP standards. From digital power isolators, gate drivers, and isolated interface, ADI’s products enable designers to build safe, reliable, and high performance medical devices. By understanding the differences between MOOP and MOPP and applying the right design strategies, engineers can ensure that their devices meet global safety standards. This not only facilitates regulatory approval but also protects the lives of those who depend on medical technology every day.
