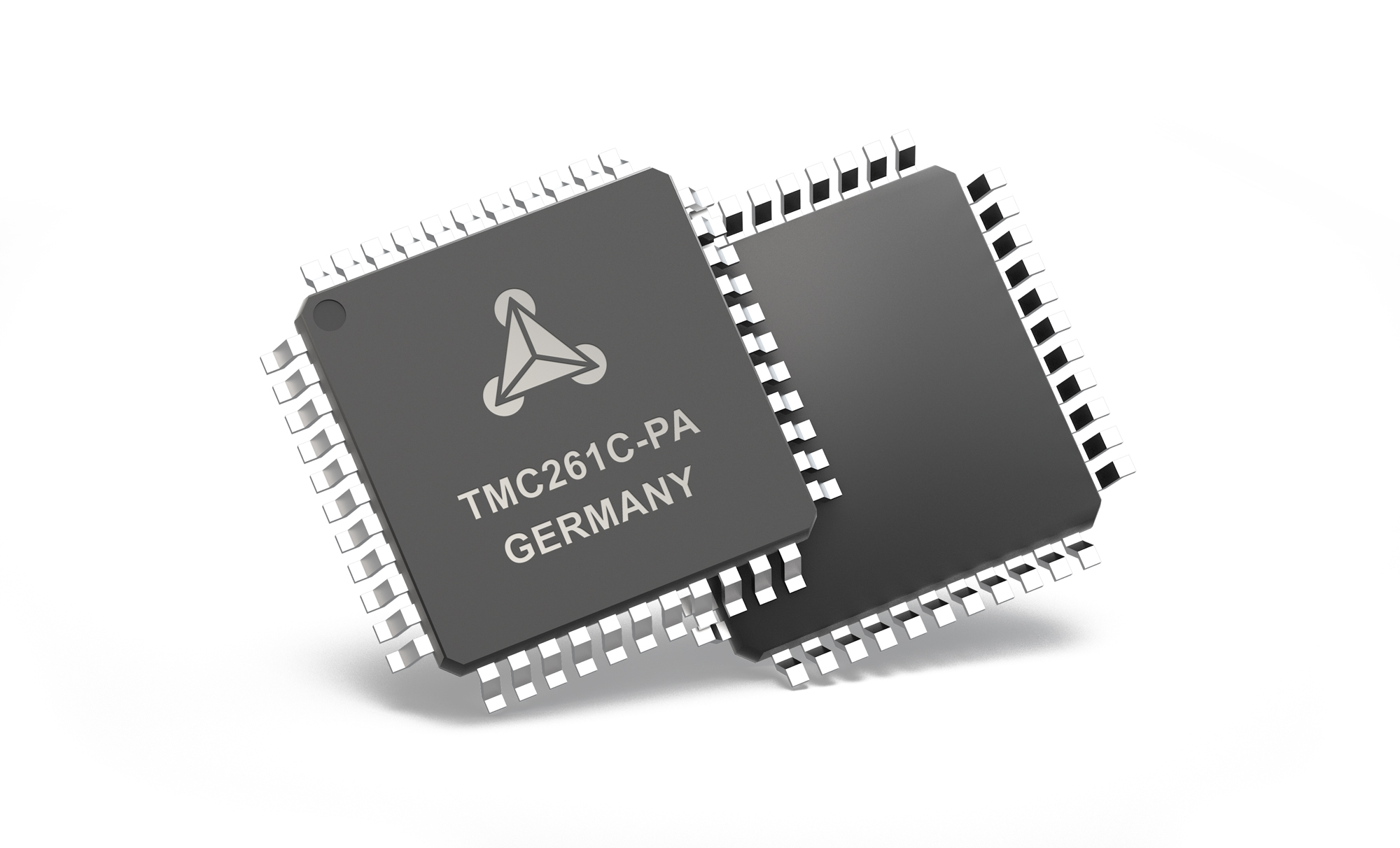

TMC261

新規設計に推奨

Stepper motor driver 5 to 60V, up to 1.4A with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle

製品モデル: 2
1Ku当たりの価格: 価格は未定

Viewing:

製品情報

Drive Capability up to 2A motor current
Highest Voltage 5V to 60V (TMC261) or 5V to 40V (TMC260)
Highest Resolution up to 256 microsteps per full step
Compact Size 10x10mm QFP-44 package
Low Power Dissipation low RDSON & sync. rectification
EMI-optimized programmable slope, no charge pump
Protection & Diagnostics short to GND, overtemperature & undervoltage, overcurrent and short to V

StallGuard2™ high precision sensorless motor load detection
CoolStep™ load dependent current control saves up to 75%
MicroPlyer™ 256 microstep smoothness with 1/16 step input.
SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
Improved Silent Motor operation
Stand Alone option

The TMC261 is the first energy efficient high current high precision microstepping driver IC for bipolar stepper motors. The unique high resolution sensorless load detection StallGuard2™ is used to for the world’s first integrated load dependent current control feature called CoolStep™. The ability to read out the load and detect an overload makes TMC261 an optimum choice for drives where a high reliability is desired at a low cost. The new patented spreadCycle PWM mixed decay chopper scheme ensures best zero crossing performance as well as high speed operation. TMC261 can be driven with Step & Direction signals as well as by serial SPI interface. Using the microPlyer allows to operate the motor with highest 256 µStep smoothness reducing the input frequency to 16 µSteps. A full set of protection and diagnostic features makes this device very rugged. It directly drives stepper motors with up to 2A. This way it reaches highest energy efficiency and allows driving of a high motor current without cooling measures even at high environment temperatures.

Applications

Textile, Sewing Machines
Factory Automation
Lab Automation
Liquid Handling
Medical
Office Automation
Printer and Scanner
CCTV, Security
ATM, Cash recycler
POS
Pumps and Valves
Heliostat Controller
CNC Machines

製品モデル: 2
1Ku当たりの価格: 価格は未定

ドキュメント

データシート 1

TMC261C Data Sheet (Rev.1.03) 02/24/2022

アプリケーション・ノート 4

AN-001: Parameterization of spreadCycle™ 11/21/2016

AN-032: TMC4361A Closed-loop Motor Control for Stepper Motor Drivers 08/13/2023

AN-016: TMC429 & TMC26x Getting Started: Motion Control via Step/Direction 08/02/2012

AN018: TMC429 & TMC24x Getting Started Motion Control via SPI Including stallGuard™ of TMC246/249 02/10/2012

アナログ・デバイセズは、最高レベルの品質と信頼性を満たす製品を供給することを常に最重要視しています。これを実現するため、製品、プロセス設計、更には製造プロセスに対しあらゆる観点から品質と信頼性のチェックを行っています。アナログ・デバイセズでは出荷製品に対する「ゼロ・ディフェクト」を常に目指しています。詳細については、アナログ・デバイセズの品質および信頼性プログラム、認証のページを参照してください。

製品モデル	ピン／パッケージ図	資料	CADシンボル、フットプリント、および3Dモデル
TMC261C-PA	44-LQFP-10X10X1.4	Material Declaration Reliablity Data パッケージ関連資料	Ultra Librarian SamacSys
TMC261C-PA-T	44-LQFP-10X10X1.4	Material Declaration Reliablity Data パッケージ関連資料	Ultra Librarian SamacSys

これは最新改訂バージョンのデータシートです。

ソフトウェア・リソース

必要なソフトウェア／ドライバが見つかりませんか？

ドライバ／ソフトウェアをリクエスト

ツールおよびシミュレーション

設計ツール 1

TMC260C/261C/262C/2660C Calculations

評価用キット

Evaluation Board for TMC261

今すぐ購入詳細を表示

機能と利点

TMC261-PA stepper power driver
Supply voltage 9-48V (60V max), I_{phase, RMS} up to 1.4A
Configuration via SPI, control via step/direction
Optional cooling from bottom side
Optional electrolyte cap at supply rail
Board width 1.5", board height 1.0"
2x10 pin 0.1" header rows for pins/connectors
StallGuard2™
CoolStep™
SpreadCycle™
MicroPlyer™
1 to 256 Microsteps

製品詳細

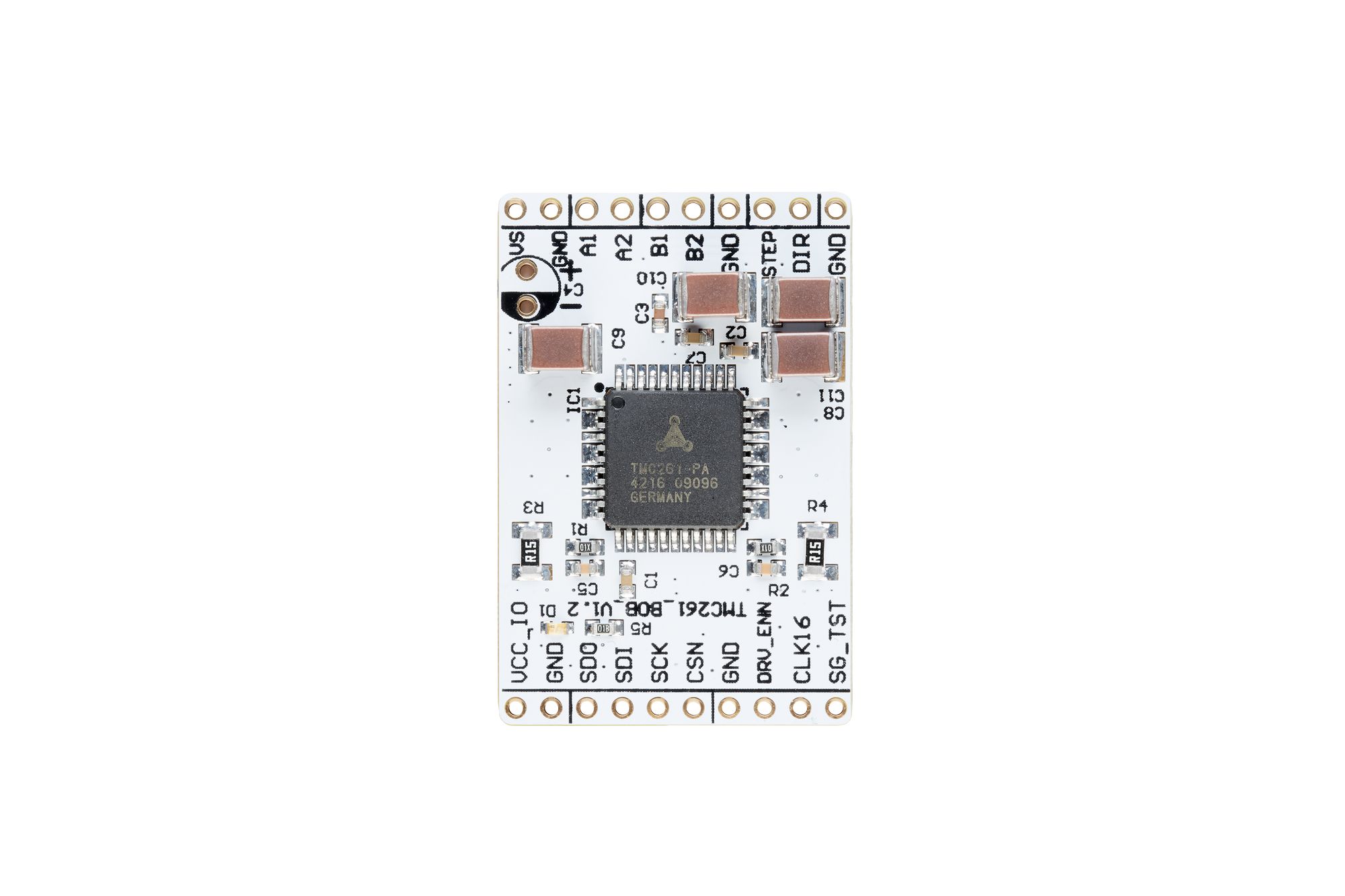

The TMC261 breakout board is a development board with the dedicated TMC261-PA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
