MAX1889

製造中止

Triple-Output TFT LCD Power Supply with Fault Protection

利用上の注意

本データシートの英語以外の言語への翻訳はユーザの便宜のために提供されるものであり、リビジョンが古い場合があります。最新の内容については、必ず最新の英語版をご参照ください。

なお、日本語版のデータシートは基本的に「Rev.0」(リビジョン0)で作成されています。そのため、英語版が後に改訂され、複数製品のデータシートがひとつに統一された場合、同じ「Rev.0」の日本語版のデータシートが異なる製品のデータシートとして表示されることがあります。たとえば、「ADM3307E」の場合、日本語データシートをクリックすると「ADM3311E」が表示されます。これは、英語版のデータシートが複数の製品で共有できるように1本化され、「ADM3307E/ADM3310E/ADM3311E/ADM3312E/ADM3315E」(Rev.J)と改訂されたからで、決して誤ってリンクが張られているわけではありません。和文化されたデータシートを少しでも有効に活用していただくためにこのような方法をとっておりますので、ご了解ください。

アナログ・デバイセズ社は、提供する情報が正確で信頼できるものであることを期していますが、その情報の利用に関して、あるいはその利用によって生じる第三者の特許やその他の権利の侵害に関して一切の責任を負いません。また、アナログ・デバイセズ社の特許または特許の権利の使用を明示的または暗示的に許諾するものでもありません。仕様は予告なしに変更する場合があります。本紙記載の商標および登録商標は、各社の所有に属します。

Viewing:

製品情報

  • High-Performance Step-Up Regulator
    • Fast Transient Response
    • Current-Mode Control Architecture
    • Built-In High-Efficiency N-Channel Power MOSFET
    • Current-Limit Comparator > 85% Efficiency
    • Selectable Switching Frequency (500kHz/1MHz)
    • Internal Soft-Start
  • Positive Linear-Regulator Controller
  • Negative Linear-Regulator Controller
  • Triple-Level Protection Against Smoke or Fire
    • Input Switch Replaces Input Fuse
    • Output Overload Detection with Timer Latch
    • Thermal Shutdown
  • 2.7V to 5.5V Input Operating Range
  • Ultra-Small External Components
  • 1µA Shutdown Current (max)
  • 1mA Quiescent Current (max)
  • Ultra-Thin 16-Pin QFN Package (0.8mm Maximum Thickness)

The MAX1889 provides the three regulated output voltages required for active matrix, thin-film transistor liquid crystal displays (TFT LCDs). It combines a high-performance step-up regulator with two linear-regulator controllers and multiple levels of protection circuitry for a complete power-supply system.

The main DC-DC converter is a high-frequency (500kHz/1MHz), current-mode step-up regulator with an integrated N-channel power MOSFET that allows the use of ultra-small inductors and ceramic capacitors. With its high closed-loop bandwidth performance, the MAX1889 provides fast transient response to pulsed loads while operating with efficiencies over 85%. The positive and negative linear-regulator controllers post-regulate charge-pump outputs for TFT gate-on and gate-off supplies.

The MAX1889 has a unique input switch control that can replace the typical input fuse by disconnecting the load from the input supply when a fault is detected. The fault detector monitors all three regulated output voltages and can monitor current from the input supply as well. Additionally, the MAX1889 enters thermal shutdown when its overtemperature threshold is reached.

The MAX1889 undervoltage lockout is set at 2.5V (max) to allow the input supply to droop under pulsed load conditions while avoiding any unexpected behavior when its input voltage dips momentarily. Also, the built-in soft-start and cycle-by-cycle current limiting prevent input surge currents during power-up.

The MAX1889 is available in a 16-pin thin QFN package with a maximum thickness of 0.8mm for ultra-thin LCD panel design.

Applications

  • Car-Navigation Displays
  • LCD Monitors
  • Notebook Computer Displays

MAX1889
Triple-Output TFT LCD Power Supply with Fault Protection

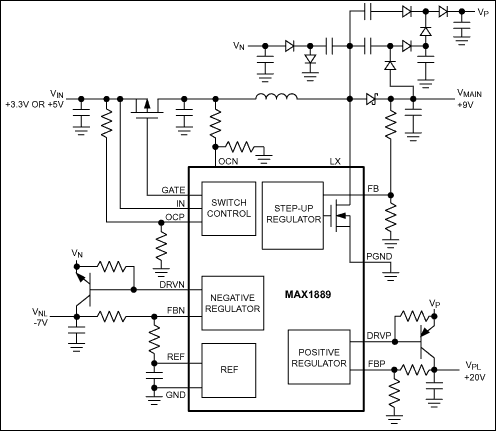

MAX1889: Typical Operating Circuit
myAnalogに追加

myAnalogの製品セクション(通知受け取り)、既存/新規プロジェクトに製品を追加する。

新規プロジェクトを作成
質問する
サポート

アナログ・デバイセズのサポート・ページはアナログ・デバイセズへのあらゆるご質問にお答えするワンストップ・ポータルです。


ドキュメント

さらに詳しく
myAnalogに追加

myAnalogのリソース・セクション、既存/新規プロジェクトにメディアを追加する。

新規プロジェクトを作成

ソフトウェア・リソース

必要なソフトウェア/ドライバが見つかりませんか?

ドライバ/ソフトウェアをリクエスト

ハードウェア・エコシステム

製品モデル 製品ライフサイクル 詳細
スイッチング・レギュレータ & コントローラ 3
MAX1790 新規設計には非推奨 低ノイズ、ステップアップDC-DCコンバータ
MAX1778 新規設計には非推奨 クワッド出力、TFT LCD DC-DCコンバータ、バッファ付
MAX1748 製造中 トリプル出力TFT LCD DC-DCコンバータ
ランプ & チューブ・ドライバ 2
MAX1996A 製造中止 高効率、広輝度範囲、CCFLバックライトコントローラ
MAX1995 高効率、広輝度範囲、CCFLバックライトコントローラ
Modal heading
myAnalogに追加

myAnalogの製品セクション(通知受け取り)、既存/新規プロジェクトに製品を追加する。

新規プロジェクトを作成

評価用キット

MAX1889EVKIT

Evaluation Kit for the MAX1889

機能と利点

  • 2.7V to 5.5V Input Range
  • Output Voltages
    • 9V Output at 200mA (Step-Up Switching)
    • 20V Output >10mA (Positive Charge-Pump Regulator)
    • -7V Output >10mA (Negative Charge-Pump Regulator)
  • Resistor-Adjustable Outputs
  • Up to Three Positive and Three Negative Charge-Pump Stages
  • Up to +28V and -22V Linear-Regulated Output (As Configured)
  • 90&% Efficiency
  • 500kHz/1MHz Step-Up Switching Frequency
  • Overcurrent Protection
  • Low Profile
  • Surface-Mount Components
  • Fully Assembled and Tested

製品詳細

The MAX1889 evaluation kit (EV kit) is a fully assembled and tested surface-mount circuit board that contains a step-up switching regulator, a positive three-stage charge-pump and high-voltage positive linear-regulator controller, and a negative three-stage charge-pump and high-voltage negative linear-regulator controller. The step-up switching circuit is configured for a 9V output and provides up to 200mA from a DC supply voltage of 2.7V to 5.5V.

The positive charge-pump and linear regulator are configured for a 20V output using two charge-pump stages providing up to 10mA. The negative charge pump and linear regulator are configured for a -7V output using a single charge-pump stage providing up to 10mA. Power for the positive charge-pump input can be provided by the DC input source or the step-up switching regulator output. Power for the negative charge-pump input can be provided by the DC input source or the power ground.

The MAX1889 EV kit demonstrates low quiescent current and high efficiency (up to 90%) for maximum battery life. The EV kit features overload protection for the input and all outputs. Operation at 1MHz allows the use of tiny surface-mount components. The MAX1889 QFN package (1.0mm max) with low-profile external components allows this circuit to be 1.25mm high.

Applications

  • Car-Navigation Displays
  • LCD Monitors
  • Notebook Computer Displays

MAX1889EVKIT
Evaluation Kit for the MAX1889
