LT7176-1

発売前

24A, 4V, Single- or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management

データシート (Rev. 0) 製品セレクション・テーブル

製品モデル: 1
1Ku当たりの価格: 価格は未定

Viewing:

製品情報

Silent Switcher^® Architecture: Enables a Compact, Efficient, Low EMI Solution
PMBus/I²C Serial Interface

Telemetry Read Back includes V_OUT, I_OUT, V_IN, Die Temperature, and Faults
Programmable Voltage, Current Limit, Sequencing, Soft Start and Stop, Undervoltage and Overvoltage, Phase, Frequency (up to 3MHz), and Loop Compensation
Integrated Three Times Programmable NVM

Key Parameters Selectable by Resistor

V_OUT Set Point Range: 0.3V to 3.4V
V_OUT Accuracy: ±0.25%, 0.6V ≤ V_OUT ≤ 1.375V
PolyPhase Load Sharing up to Four Devices
Optional Pulse-Skipping Mode Enables Low Quiescent Current
Differential Remote V_OUT Sense
Fast Transient Response
Wide V_IN Supply Range: Down to 2.7V or 1.5V with EXTV_CC
Programmable and Synchronizable: 1MHz to 3MHz
30-lead (3.5mm × 4mm) LQFN

The LT7176/LT7176-1 are monolithic PolyPhase DC/DC synchronous step-down regulators that deliver up to 24A of continuous output current. The LT7176-1 option has two switching phases that are connected to two inductors to drive a single-regulated output supply. The quick, clean, low-overshoot switching edges deliver high efficiency while minimizing electromagnetic interference (EMI) emissions. The I²C-based PMBus 1.3- compliant serial interface enables control of device functions while providing telemetry information for system monitoring. The LT7176/LT7176-1 are supported by the LTpowerPlay^® graphical user interface (GUI) tool.

The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency (f_SW) at a low output voltage (V_OUT) with excellent transient response in a small overall solution size.

V_OUT, f_SW, and phase are selectable using external configuration resistors. Settings can also be set via the PMBus interface or stored in the on-chip, three times programmable nonvolatile memory (NVM).

APPLICATIONS

Communications, Storage, and Industrial Systems

Data Center and Solid-State Drives

製品モデル: 1
1Ku当たりの価格: 価格は未定

ドキュメント

データシート 2

LT7176/LT7176-1: 24A, 4V, Single- or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management Data Sheet (Rev.0) 01/26/2026

LT7176_LT7176-1 PMBus/I²C Reference Manual 01/26/2026

ユーザ・ガイド 1

EVAL-LT7176-1-AZ User Guide: 4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176-1, 48A (Rev.0) 01/27/2026

アナログ・デバイセズは、最高レベルの品質と信頼性を満たす製品を供給することを常に最重要視しています。これを実現するため、製品、プロセス設計、更には製造プロセスに対しあらゆる観点から品質と信頼性のチェックを行っています。アナログ・デバイセズでは出荷製品に対する「ゼロ・ディフェクト」を常に目指しています。詳細については、アナログ・デバイセズの品質および信頼性プログラム、認証のページを参照してください。

製品モデル	ピン／パッケージ図	資料	CADシンボル、フットプリント、および3Dモデル
LT7176RV-1#TRPBF	30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)	Material Declaration Reliablity Data パッケージ関連資料	Ultra Librarian SamacSys

これは最新改訂バージョンのデータシートです。

ソフトウェア・リソース

必要なソフトウェア／ドライバが見つかりませんか？

ドライバ／ソフトウェアをリクエスト

ツールおよびシミュレーション

LTpowerCAD

次のデバイス用の設計ツールがLTpowerCADでご使用になれます。

LT7176
LT7176-1

LTspice^®は、無料で提供される強力で高速な回路シミュレータと回路図入力、波形ビューワに改善を加え、アナログ回路のシミュレーションを容易にするためのモデルを搭載しています。

評価用キット

4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176-1, 48A

今すぐ購入詳細を表示

製品詳細

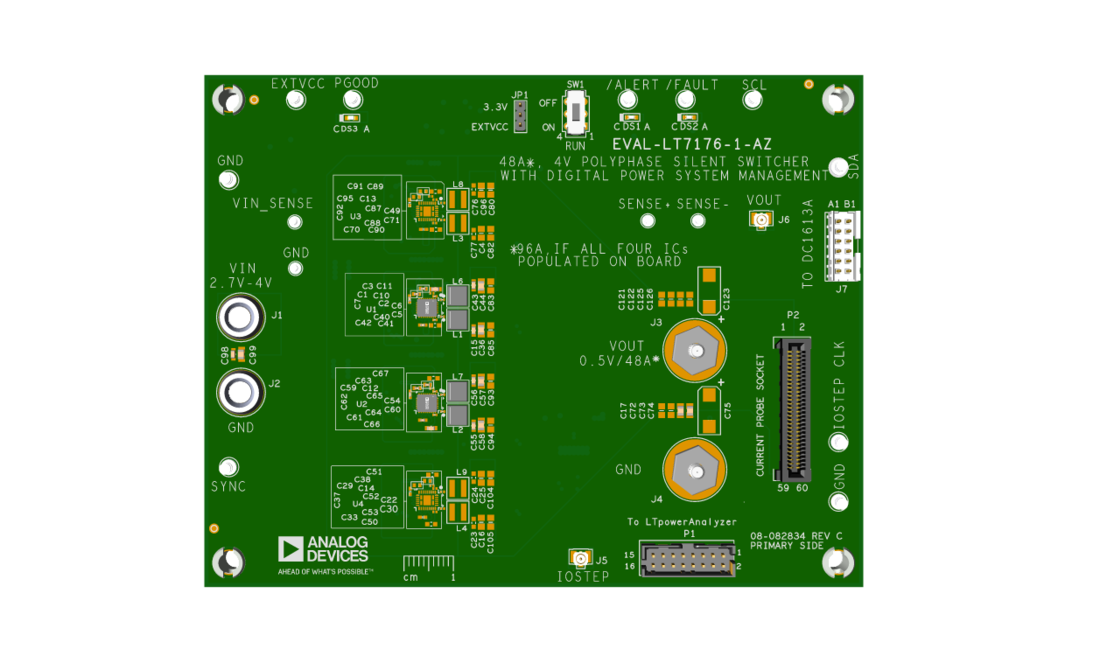

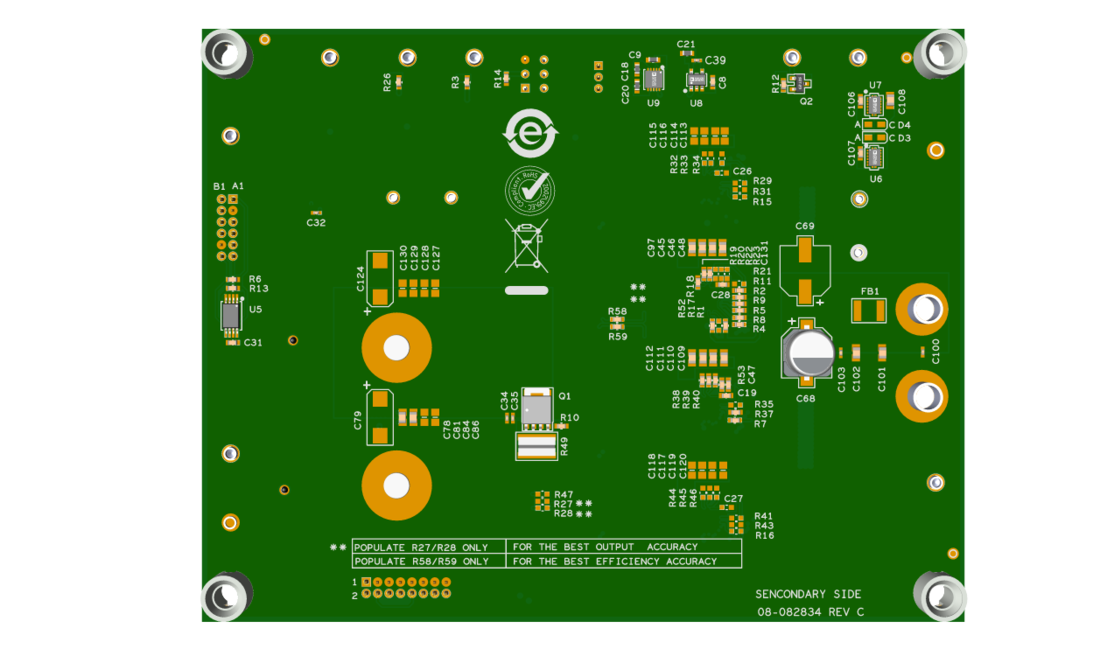

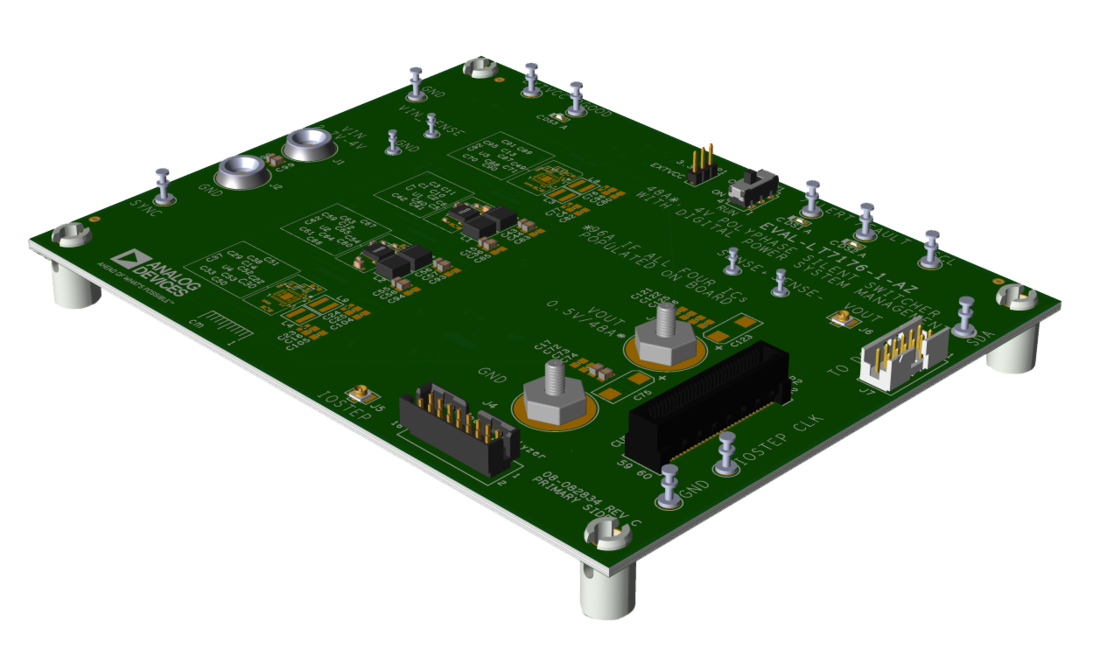

The evaluation kit EVAL-LT7176-1-AZ is a dual-phase single-output monolithic DC/DC synchronous step-down regulator with a 2.7V to 4V input range featuring LT^®7176-1. With 3V to 12V EXTV_CC provided, the input voltage can be as low as 1.5V. The output can supply 48A continuous load current. The Silent Switcher^® regulator structure is incorporated into the LT7176-1 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I²C compliant serial interface. Refer to the LT7176-1 data sheet for more detailed information.

The EVAL-LT7176-1-AZ evaluation board is designed for 0.5V output with a switching frequency set at 1.5MHz. The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency at a low output voltage with excellent transient response in a small overall solution size.

The EVAL-LT7176-1-AZ powers up to default settings and produces power based on the NVM configuration without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the power system management features of the part, download the GUI software LTpowerPlay^® onto the PC and use ADI’s I²C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly, and store the configuration in NVM, view telemetry of voltage, current, temperature, and fault status. The NVM can be programmed up to three times.

GUI Download

The software can be downloaded from LTpowerPlay.

The LT7176-1 data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with this demo manual for EVAL-LT7176-1-AZ.

For more details and instructions of the LTpowerPlay, refer to LTpowerPlay GUI for the LT7176-1 Quick Start Guide.

資料

EVAL-LT7176-1-AZ User Guide: 4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176-1, 48A (Rev.0)
2026/01/27
