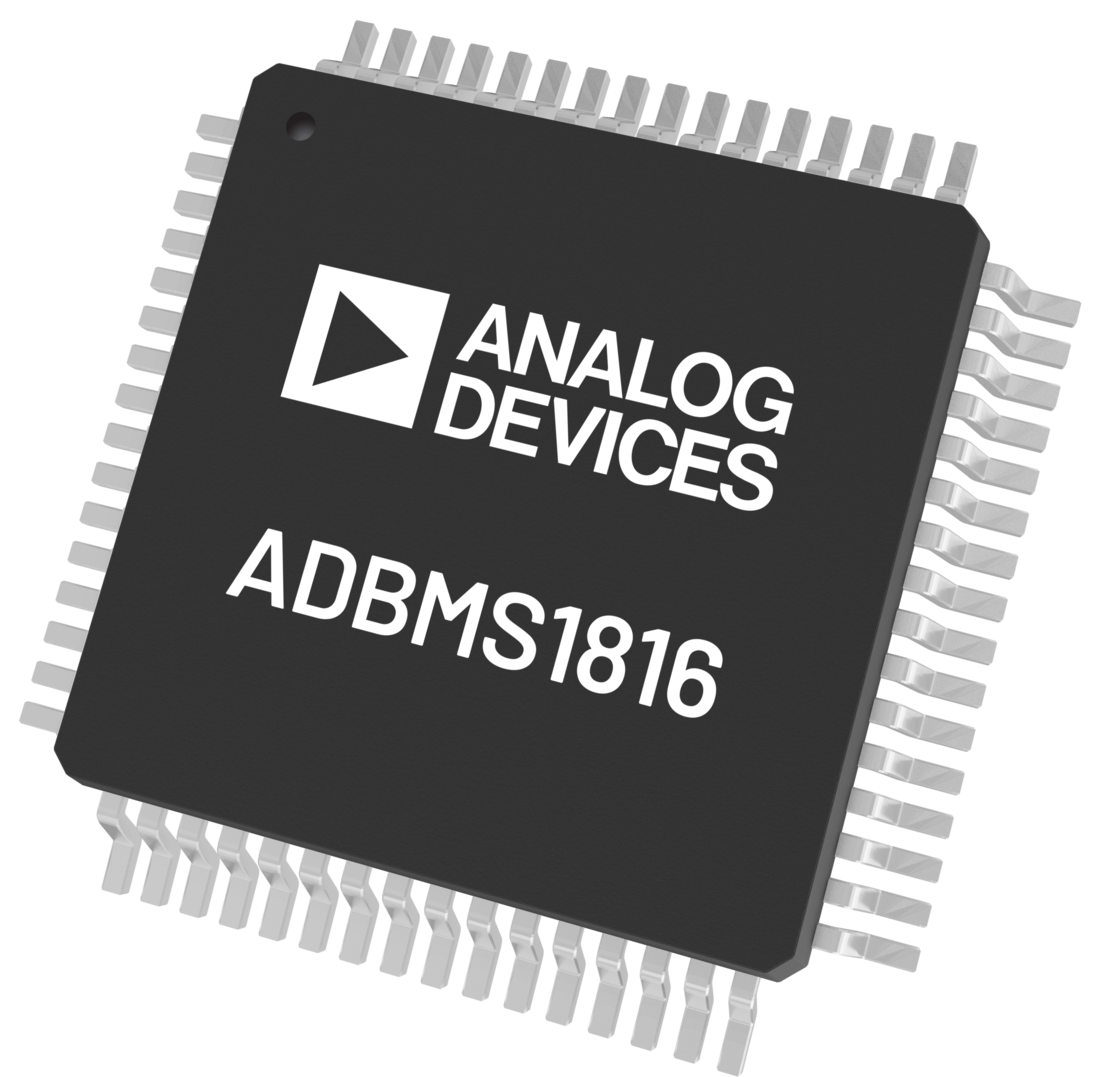

ADBMS1816

Wide Range BMS System

• 36V to 96V operation, can handle currents up to 100A
• Simplified E2W/E3W AD-BMSE2E3WLC-48V baseboard + EVAL-ADBM1816WLC daughter board configuration​​



Battery Chemistry Compatibility

• Supports multiple battery chemistries: Ni-MH, Li-ion, LiFePO4, Sodium-Ion, and others



System Integration

• Plug-and-play integration
• MCU-agnostic design for easy integration into existing systems
• Flexible topology support: Centralized, Distributed, and Modular configurations



Monitoring Capabilities

• Cell voltage accuracy: ±3.6mV
• Temperature monitoring: Up to 8 sensors
• SoC/SoH Coulomb counting
• High-side and low-side current sensing



Vehicle State Management

• E2W/E3W vehicle state condition readiness
• Support for Driving, Charging, Parking, and Fault states



Connectivity and Software

• Daisy-chaining ready for multi-board configurations
• Comprehensive GUI compatible with any PC/laptop
• Integrated firmware and GUI software suite
• Real-time monitoring, diagnostics, and data plotting capabilities
• Open-source BMS example codes provided

The AD-BMSE2E3WLC-SL Solution Kit is a cost-competitive, system-level reference design developed for medium- to high-performance Battery Management System (BMS) applications in Electric 2-Wheeler (E2W) and Electric 3-Wheeler (E3W) platforms. Designed for battery systems operating from 36V to 96V and supporting currents up to 100A, the solution combines accurate battery monitoring, current sensing, protection, and system control into a flexible development platform. The kit leverages the automotive-grade ADBMS1816W battery monitoring IC to provide precise cell-voltage measurement, temperature monitoring, and pack-level diagnostics, enabling developers to evaluate and accelerate the implementation of advanced BMS functions for a wide range of battery chemistries, including Li-ion, LiFePO4, Ni-MH, and Sodium-Ion batteries.

The solution kit consists of two primary hardware components: the AD-BMSE2E3WLC-48V baseboard, which integrates current sensing, power-path control, communication interfaces, and system-level BMS functionality and the EVAL-ADBMS1816WLC daughterboard, which expands cell-monitoring capability and enables support for higher cell-count battery packs. The package also includes the MAX32666FTHR microcontroller board, which executes BMS algorithms and provides USB-to-SPI communication for GUI interaction and two DC2472A Battery Emulator boards for evaluation and testing purposes, allowing users to simulate battery-cell voltages without connecting an actual battery pack. ​

The solution kit consists of two primary hardware components: the AD-BMSE2E3WLC-48V Base Board, which integrates current sensing, power-path control, communication interfaces, and system-level BMS functionality and the EVAL-ADBMS1816WLC Daughter Board, which expands cell-monitoring capability and enables support for higher cell-count battery packs. The package also includes the MAX32666FTHR microcontroller board, which executes BMS algorithms and provides USB-to-SPI communication for GUI interaction and two DC2472A Battery Emulator boards for evaluation and testing purposes, allowing users to simulate battery-cell voltages without connecting an actual battery pack.

Featuring built-in charge and discharge control circuitry with both high-side and low-side current sensing, the AD-BMSE2E3WLC-SL supports accurate State of Charge (SoC) and State of Health (SoH) estimation while providing the flexibility to implement centralized, distributed, or modular BMS architectures. Its modular and stackable design supports standard Arduino and Feather form factors, allowing users to integrate their preferred MCU platforms with minimal hardware modification. The system is further enhanced by daisy-chain-ready isoSPI connectivity, enabling scalable battery monitoring solutions for larger systems.

To accelerate development, this reference design also includes open-source firmware examples and a comprehensive PC-based graphical user interface (GUI) that provides real-time monitoring, diagnostics, configuration, and data visualization capabilities.

Upon purchase, the AD-BMSE2E3WLC-SL Solution Kit comes complete with:

Boards:

• 1x AD-BMSE2E3WLC-48V Baseboard (can be purchased separately) ​
• 1x EVAL-ADBMS1816WLC Daughterboard (can be purchased separately) ​
• 1x MAX32666FTHR Microcontroller Board (can be purchased separately)
• 1x MAX32625PICO Programmer with 10-pin SWD Debugger Cable (can be purchased separately)
• 2x DC2472A Battery Cell Emulator (can be purchased separately)

Accessories:

• 2x USB Cable (Male USB-A to Male Micro USB-B)
• 2x Red Alligator Clip to Banana Plug (1166-12-0)
• 2x Black Alligator Clip to Banana Plug (1166-12-0)
• 2x isoSPI Twisted Pair Cable

However, customers also have the option to avail of the components individually as intended for their application development.

APPLICATIONS

• Medium to High Performance Electric and Hybrid 2- or 3-Wheeler Vehicles
• Light Electric Vehicles (LEVs)
• BMS Battery Research and Development
• Adaptive Battery Type System Monitoring
• Portable Energy Storage Systems

広範囲のBMSシステム

• 36V～48Vの電圧で動作でき、最大100Aの電流に対応

バッテリ化学組成の互換性

• 複数のバッテリの化学組成に対応：ニッケル水素電池、リチウム・イオン電池、リン酸鉄リチウム・イオン電池、ナトリウム・イオン電池、その他

システム統合

• Arduinoベースのマイクロコントローラ・ボードと組み合わせて使用可能
• プラグ・アンド・プレイ対応

監視機能

• セル電圧精度：±3.6mV
• 温度監視：最大8個のセンサー
• SoC/SoHクーロン・カウント

コネクティビティとソフトウェア

• マルチボード構成用のデイジーチェーン対応
• あらゆるPCやラップトップと互換性がある包括的なGUIを搭載し、リアルタイムでバッテリの監視と診断が可能

EVAL-ADBMS1816WLCは、AD-BMSE2E3WLC-48Vベースボードと連携して動作するように設計された拡張／評価用プラットフォームであり、電動二輪車（E2W）、電動三輪車（E3W）、軽量電気自動車（LEV）のアプリケーションで使用されるバッテリ・パックに追加のセル監視機能を提供します。

このボードは、バッテリ・セル電圧を正確に測定できるADBMS1816W（バッテリ監視IC）を中心に構成されています。シームレスな統合を念頭に設計されたEVAL-ADBMS1816WLCドータ・ボードは、isoSPI通信を介してAD-BMSE2E3WLC-48Vベースボードに接続し、スケーラブルでデイジーチェーン接続に対応したバッテリ管理アーキテクチャをサポートします。

この設計には、Arduino互換のヘッダー、専用のセル・コネクタ、堅牢な通信インターフェースが含まれており、ハードウェアのセットアップとシステム拡張を簡素化します。AD-BMSE2E3WLCソフトウェア・エコシステム、ファームウェア・サンプル、およびGUIツールと組み合わせることで、このドータ・ボードは、幅広い種類の充電式バッテリ化学組成と電力貯蔵アプリケーションに対応し、リアルタイムのセル電圧監視、診断、データ可視化、およびバッテリ管理アルゴリズムの迅速な評価を可能にします。

アプリケーション

• 中～高性能の電動およびハイブリッド二輪車／三輪車
• 軽量電気自動車
• BMS、バッテリの研究開発
• アダプティブ・バッテリ・タイプ・システムのモニタリング
• ポータブル電力貯蔵システム

本ベースボードに加え、完全なリファレンス・デザインの評価に必要なその他のアクセサリを含むソリューション・キットを購入される際は、AD-BMSE2E3WLC-SLのページをご覧ください。

Wide Range BMS System

• Can operate from 36V to 48V, can handle currents up to 100A​

Battery Chemistry Compatibility​

• Supports multiple battery chemistries: Ni-MH, Li-ion, LiFePO4, Sodium-ion, and others​​

System Integration

• Plug-and-play integration
• MCU-agnostic design for easy integration into existing systems
• Flexible topology support: Centralized, Distributed, and Modular configurations

Monitoring Capabilities

• Cell voltage accuracy: ±3.6mv
• Temperature monitoring: Up to 8 sensors
• SoC/SoH Coulomb counting
• High-side and low-side current sensing

Vehicle State Management

• E2W/E3W vehicle state condition readiness
• Support for Driving, Charging, Parking, and Fault states

Connectivity and Software

• Daisy-chaining ready for multi-board configurations
• Comprehensive GUI compatible with any PC/laptop
• Integrated firmware and GUI software suite
• Real-time monitoring, diagnostics, and data plotting capabilities
• Open-source BMS example codes provided

The AD-BMSE2E3WLC-48V is the baseboard of the AD-BMSE2E3WLC-SL Solution Kit, developed to simplify the evaluation of Battery Management Systems for Electric 2- and 3-Wheeler (E2/E3W), Light Electric Vehicle (LEV), and energy storage applications.

Operating over a battery voltage range of 36V to 48V and supporting currents up to 100A, the board integrates battery monitoring, current sensing, power-path control, communication interfaces, and MCU connectivity into a single platform. Its MCU-agnostic architecture, Arduino-compatible headers, FeatherWing connector, and isoSPI communication interface provide flexibility for integration into centralized, distributed, or modular BMS architectures.

When paired with the EVAL-ADBMS1816WLC Daughter Board, it enables a wider range of high-accuracy cell voltage measurement (up to 96V), temperature monitoring, SOC/SOH estimation, and battery protection functions required for LEV systems.

Built around the automotive-grade ADBMS1816W battery monitoring IC, the AD-BMSE2E3WLC-48V Baseboard supports multiple battery chemistries, including Li-ion, LiFePO4, Ni-MH, and Sodium-ion batteries.

APPLICATIONS

• Medium to High Performance Electric and Hybrid 2- or 3-Wheeler Vehicles
• Light Electric Vehicles
• BMS Battery Research and Development
• Adaptive Battery Type System Monitoring
• Portable Energy Storage Systems

For those interested in purchasing the Solution Kit, which includes the daughterboard as well as the other accessories needed for full reference design evaluation, please visit the AD-BMSE2E3WLC-SL page.
