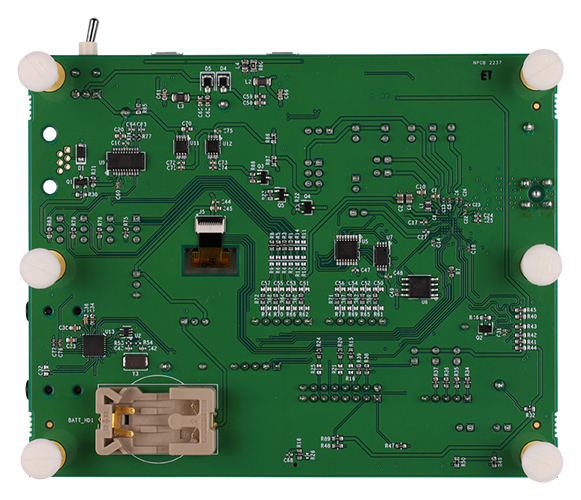

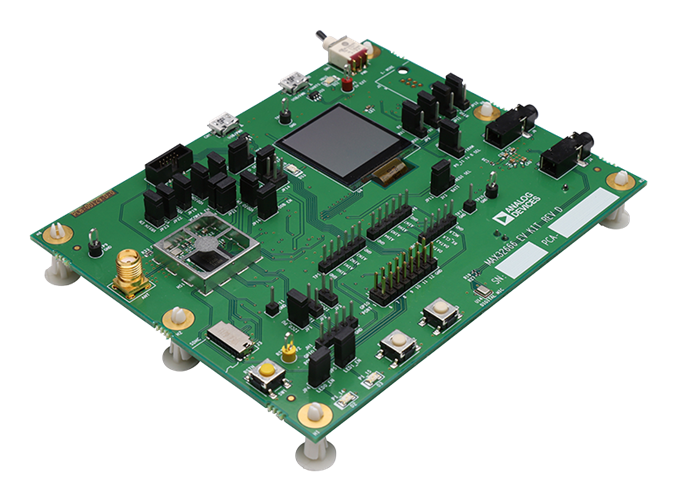

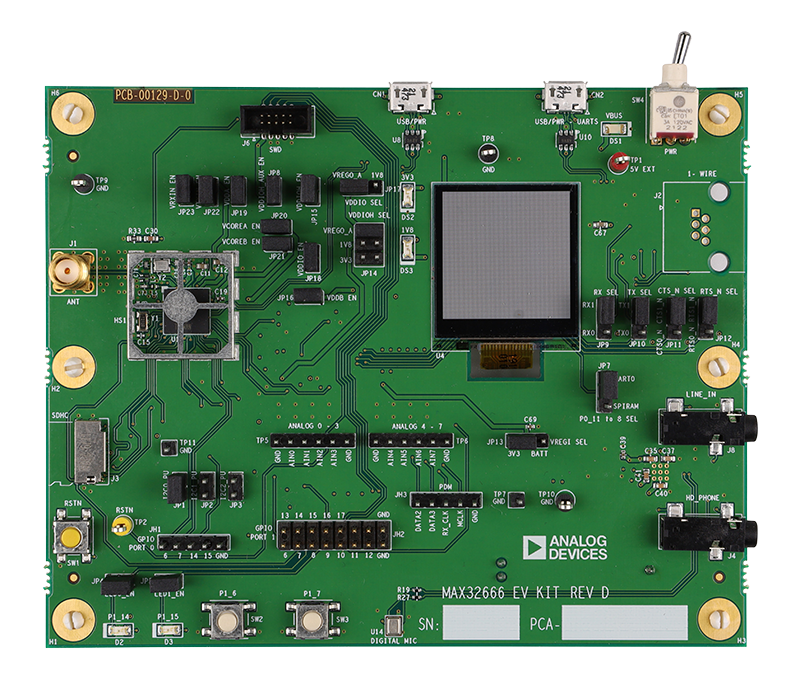

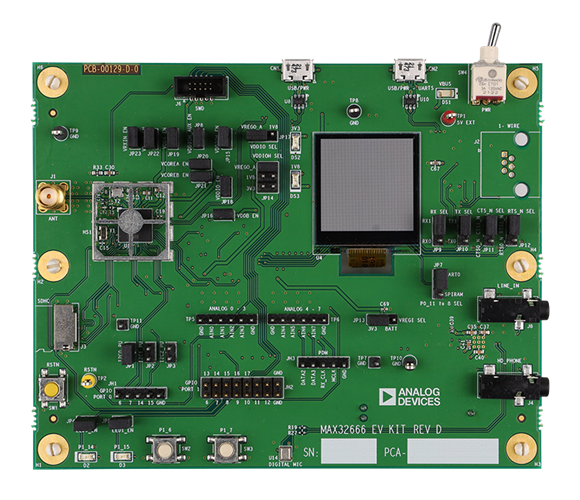

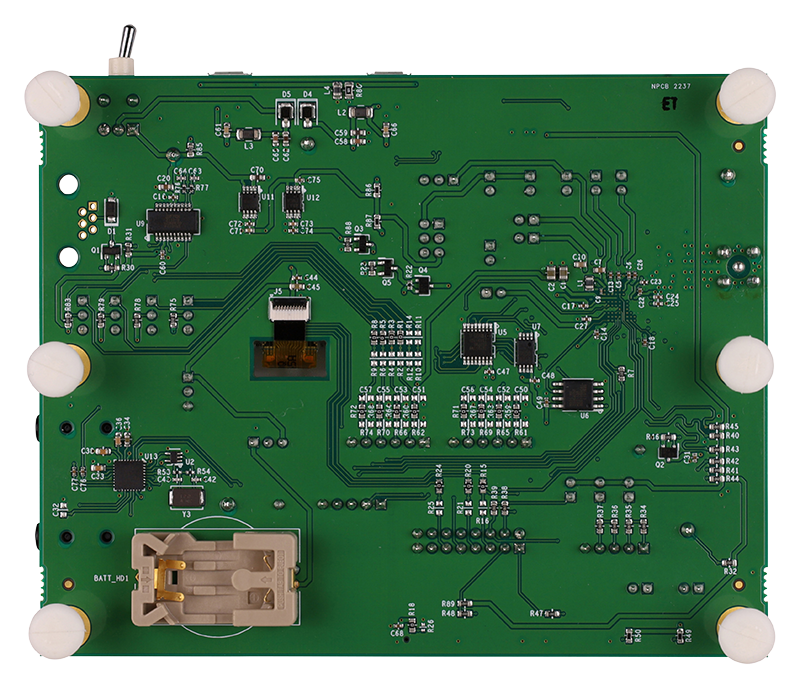

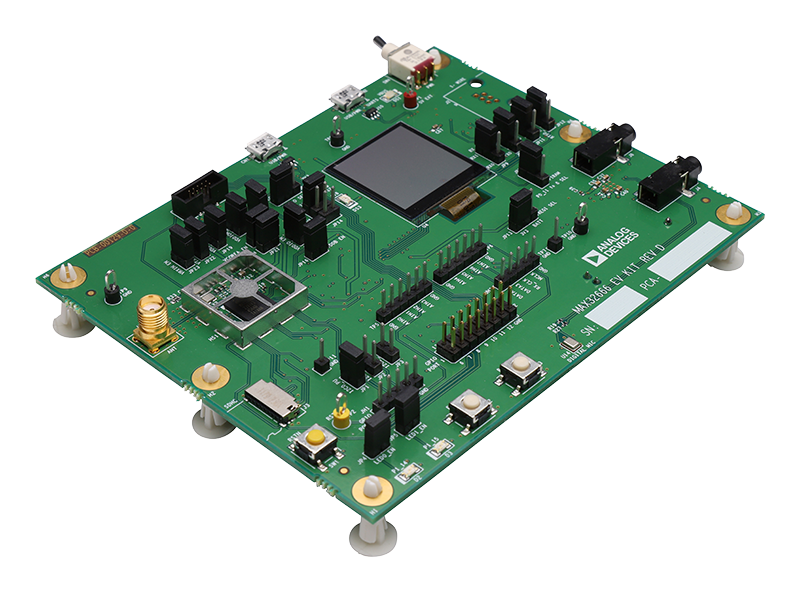

MAX32666EVKIT Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Bluetooth SMA connector with a 2.4GHz Hinged Whip Antenna
1.28in 128 × 128 Monochrome TFT Display
64MB XIP Flash
1MB XIP RAM
Stereo Audio Codec with Line-In and Line-Out 3.5mm Jacks
Digital Audio Microphone
USB 2.0 Micro B Interface
USB 2.0 Micro B to Serial UARTs
- Selection with Jumpers Between UART1 and UART2
Micro SD Card Interface
Select GPIOs Accessed Through a 0.1in Header
Access to the 8 Analog Inputs Through a 0.1in Header
Arm^® or SWD JTAG 20-Pin Header
1-Wire RJ11 Port
Can Be Solely Sourced by a Coin Cell Battery
Board Power Provided by Either USB Port
Individual Power Measurement on All IC Rails Through Jumpers
On-Board 1.8V and 3.3V Regulators
Two General-Purpose LEDs and Two General-Purpose Pushbutton Switches

Product Details

The MAX32666 EV kit provides a platform for evaluat- ing the capabilities of the MAX32665 and MAX32666 high-efficiency Arm® microcontrollers and audio DSP for wearable and hearable device applications.
