TMC5271

2.1V to 20V, 1.6ARMS Stepper Driver and Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $3.96
Features
  • 2.1V to 20V DC Voltage Range
  • Two 20V H-Bridges
  • Low RDS(ON) (HS Plus LS): 0.155Ω Typical (TA = +25°C)
  • Current Ratings per H-Bridge (Typical at +25°C):
    • Bridge Peak Current IMAX = 3.0AMAX
    • Full-Scale Current IFS = 1.6ARMS (2.24A Sine-Wave Peak)
  • Fully Integrated Lossless Current Sensing (ICS)
  • Eight-Point Motion Controller for Minimum Jerk
  • Step/Direction Interface with MicroPlyer™ Step Interpolation
  • SPI or Single-Wire UART Interface
  • Quadrature Encoder Interface
  • Reference Switch Inputs
  • TriCoder Sensorless Standstill Steploss Detection and Full-Step Encoder
  • Highest Resolution with 256 Microsteps per Full Step
  • StealthChop2 Silent Motor Operation
  • SpreadCycle™ Highly Dynamic Chopper Mode
  • StallGuard2™ and StallGuard4™ Sensorless Motor Load Detection
  • CoolStep® Current Control for Energy Savings up to 75%
  • Passive Braking and Freewheeling Mode
  • Bridge Disable, Reset, and Low-Power Mode
  • Motor Phase and Chip Temperature Measurement
  • Full Protection and Diagnostics
  • 2.97mm × 3.13mm, 36-Pin WLCSP
Additional Details
show more Icon

The TMC5271 is a miniaturized smart high-performance single-axis stepper motor controller and driver IC with serial communication interfaces (SPI and UART) and extensive diagnostic capabilities. Highest integration, high energy efficiency, and a small form factor enable miniaturized and scalable systems for cost-effective solutions.

StealthChop2™ ensures absolutely noiseless operation combined with maximum efficiency and the optimal motor torque control.

The TMC5271 combines a flexible 8-point ramp generator with reduced jerk for automatic positioning with a smart stepper motor driver based on a 256 microstep built-in indexer and two fully integrated 20V, 2.24AMAX H-bridges plus non-dissipative integrated current sensing (ICS), which eliminates bulky external sense resistors resulting in space and power savings.

The integrated power MOSFETs' low impedance results in high driving efficiency and minimal heat generation.

The typical total RDS(ON) (high side plus low side) is 0.155Ω with a maximum RMS current per H-bridge of IRMS = 1.6ARMS and a maximum output current per H-Bridge at IMAX = 3.0AMAX (limited by overcurrent protection).

The TMC5271 features abundant diagnostics and protection functions such as short-circuit protection/overcurrent protection, thermal shutdown, and undervoltage lockout.

The TMC5271 is available in a tiny 2.97mm × 3.13mm, 36-pin WLCSP package.

Applications

  • Wearables
  • Personal Portable Devices
  • Optical Systems, Lens Control
  • CCTV, Surveillance, Conference Systems Focus/Zoom and Pan/Tilt Control
  • Patch and Insulin Pumps
  • Pipettes and Liquid Handling
  • Small Printing and Scanning Devices
  • Lab and Office Automation
  • Space-Constrained Stepper Motor Applications
Part Models 2
1ku List Price Starting From $3.96

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
TMC5271AWX+
  • HTML
  • HTML
TMC5271AWX+T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

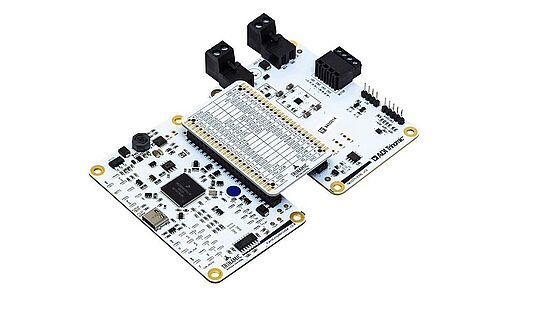

TMC5271-EVAL

Evaluation Board for TMC5271

zoom

TMC5271-EVAL

Evaluation Board for TMC5271

Evaluation Board for TMC5271

Features and Benefits

  • CoolStep™
  • Passive Braking
  • Short Detection
  • Slope Control
  • StallGuard2™
  • MicroPlyer™
  • DcStep™
  • Position Mode
  • Velocity Mode
  • Dual Encoder
  • MicroPlyer™
  • 2-phase stepper motor up to 1.6 A (RMS) coil current (2.24 A (PEAK))
  • Supply Voltage 2.1 to 20 V DC
  • SPI and Single Wire UART
  • Encoder Interface and Ref.-Switch Input
  • 1 to 256 microsteps
  • StealthChop2 silent PWM mode
  • StallGuard4 sensorless motor load detection
  • TriCoder Sensorless Standstill Steploss Detection and Full Step Encoder

Product Detail

The TMC5271-EVAL-KIT allows you to explore all functions of the TMC5271.

The TMC5271-EVAL-KIT is a set of one MCU board Landungsbruecke, one Eselsbruecke and one TMC5271-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC5271 are accessible with probes on the bridge board. TMC5271-EVAL-KIT can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

reference details image

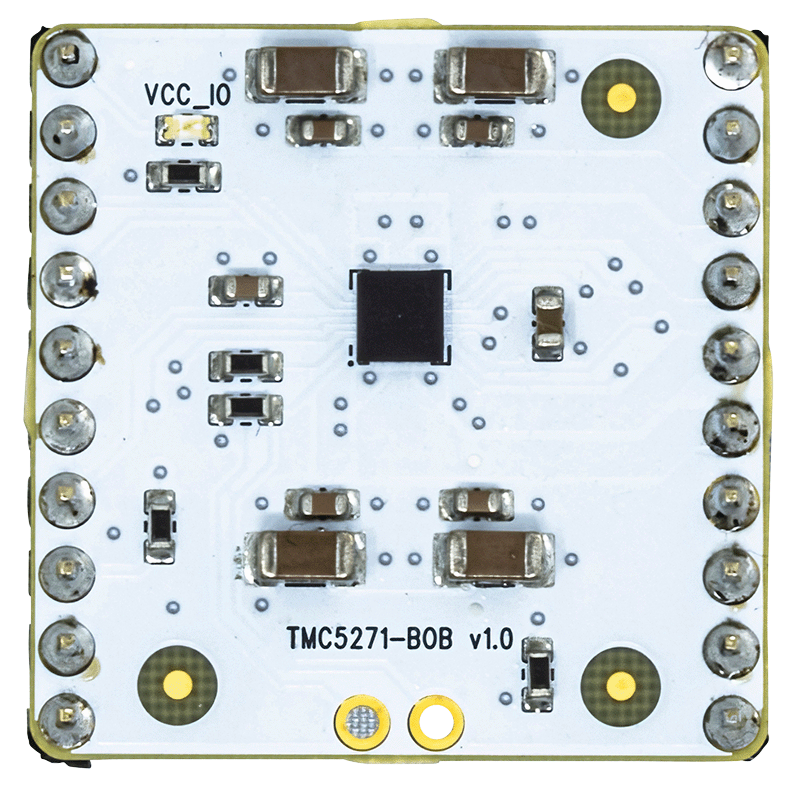

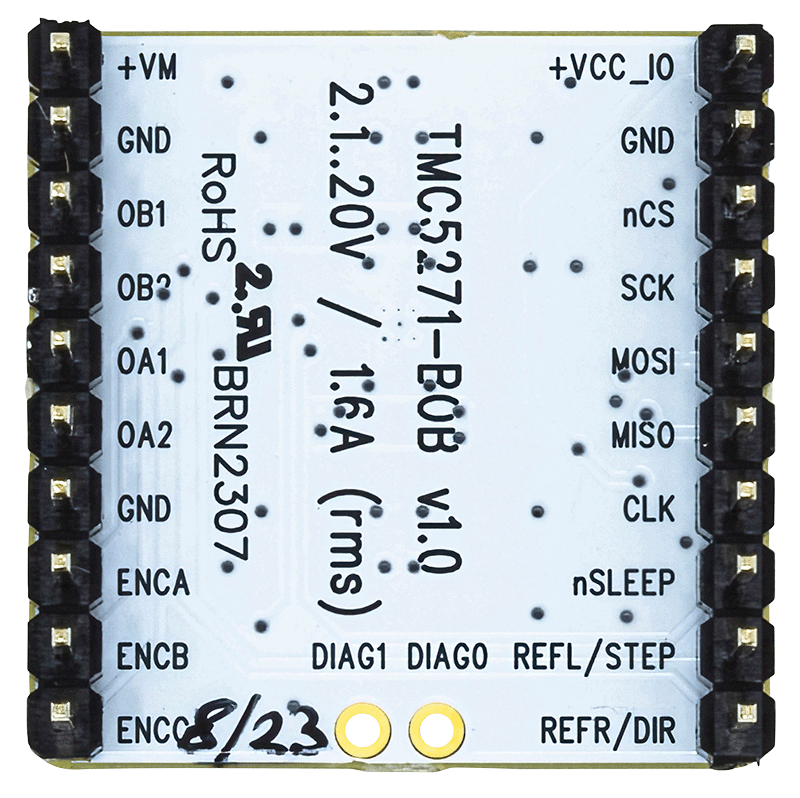

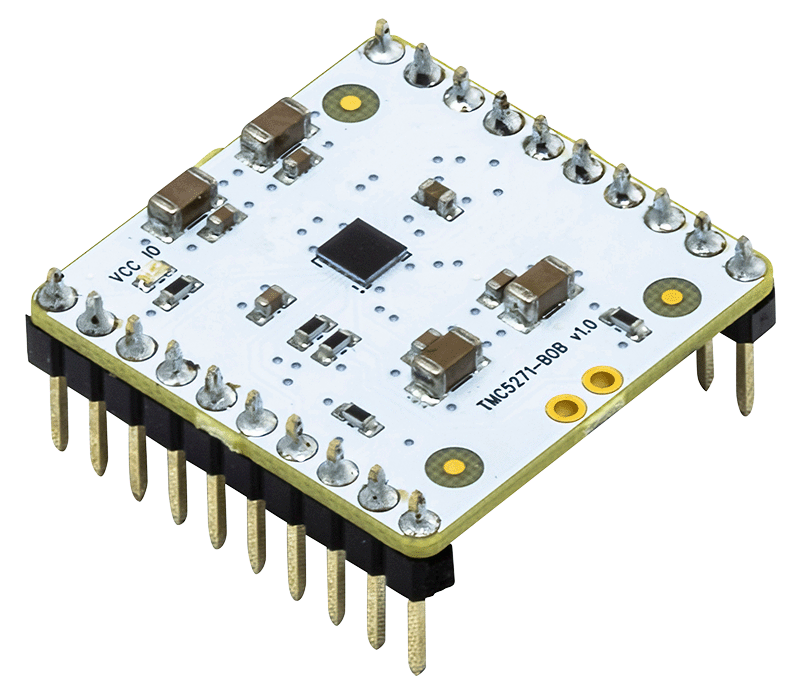

TMC5271-BOB

TMC5271 Evaluation Board

zoom

TMC5271-BOB

TMC5271 Evaluation Board

TMC5271 Evaluation Board

Features and Benefits

  • TMC5271 Stepper Motor Driver & Controller
  • Supply Voltage 2.1V to 20V DC
  • Iphase up to 1.6ARMS
  • StealthChop2 Silent PWM Mode
  • StallGuard4 Sensorless Motor Load Detection
  • TriCoder Sensorless Standstill Steploss Detection and Full Step Encoder
  • Board Width 1.0", Board Height 1.0"
  • 2 x 10 Pin 0.1" Header Rows for Connectors
