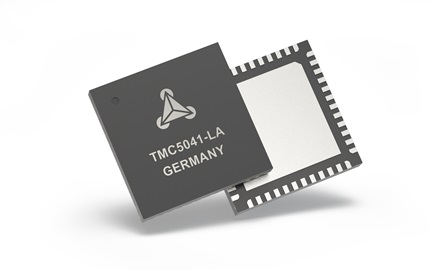

TMC5041 Data Sheet (Rev. 1.16)2/22/2023
Features and Benefits
- Two 2-phase stepper motors
- Drive Capability up to 2x 1.1A coil current (2x 1.5A peak)
- Motion Controller with SixPoint™ ramp
- Voltage Range 4.75 to 26V DC
- SPI Interface
- Highest Resolution up to 256 microsteps per full step
- StealthChop™ for extremely quiet operation and smooth motion
- 2x Ref.-Switch input per axis
- SpreadCycle™ highly dynamic motor control chopper
- StallGuard2™ high precision sensorless motor load detection
- CoolStep™ current control for energy savings up to 75%
- Passive Braking and freewheeling mode
- Full Protection & Diagnostics
- Compact Size 7x7mm2 QFN48 package
The TMC5041 cDriver™ is an integrated motor driver and motion controller solution for CCTV cameras, pumps and other automated equipment applications. The device has two integrated SixPoint™ ramp controllers, microstepping indexers, the sensorless stall detection technology StallGuard2™ and the completely noiseless current control mode StealthChop™ and is intended to drive two bipolar stepper motor. The output driver blocks consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC5041 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC5041 is designed for a supply voltage of 5 to 28V. The device provides a SPI interface for configuration and diagnostics and a step and direction interface.
- CCTV, Security
- Office Automation
- Antenna Positioning
- Battery powered applications
- ATM, Cash recycler, POS
- Lab Automation
- Liquid Handling
- Printer and Scanner
- Pumps and Valves
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)

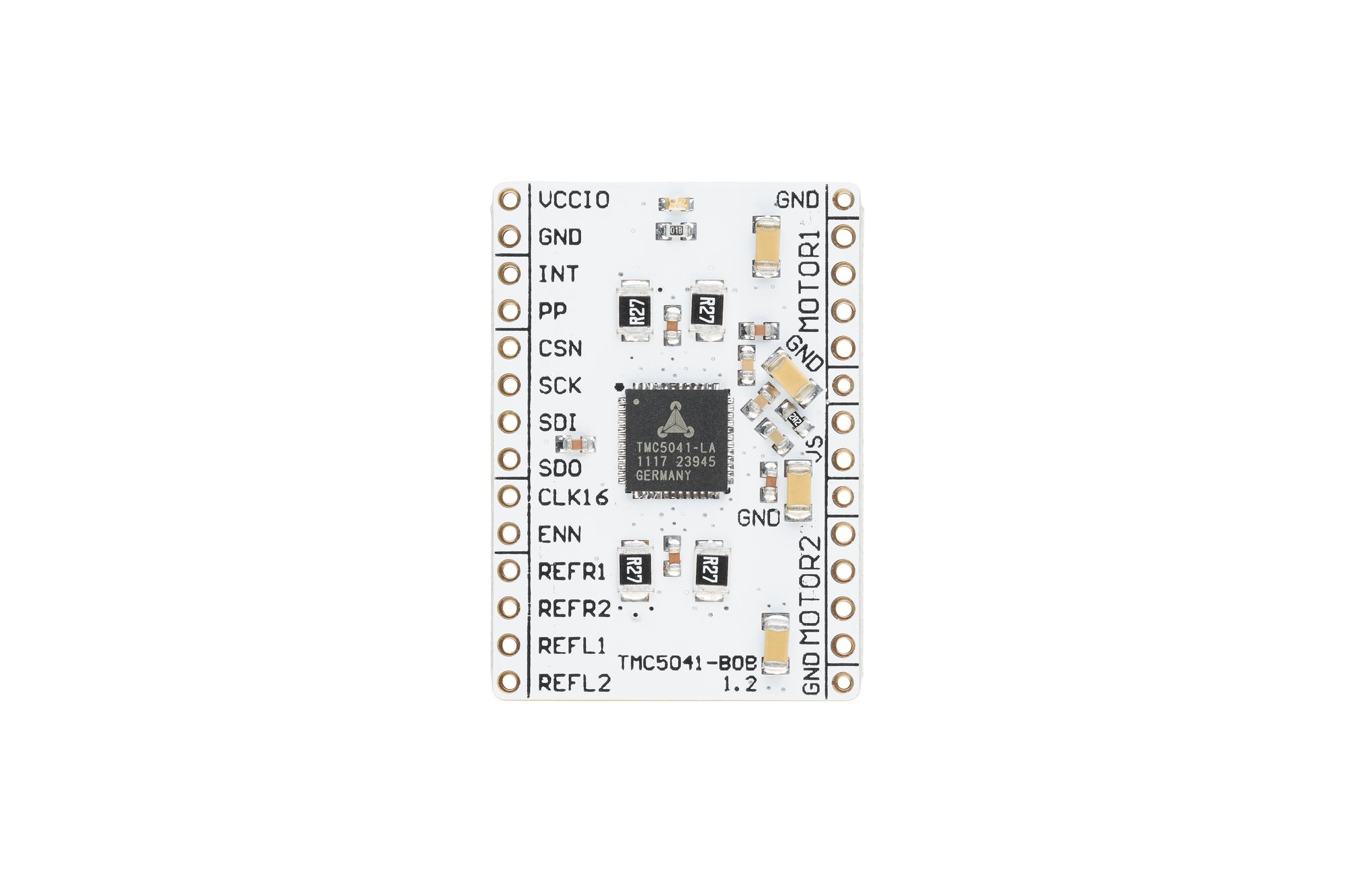

The TMC5041 breakout board is a development board with the dedicated TMC5041-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
Features & Benefits
- TMC5041-LA dual stepper driver and controller
- Supply voltage 5-26V, Iphase,RMS up to 2x1.1A
- Configuration and control via SPI
- Use off-board electrolyte cap with your supply
- 1x incremental encoder input per motor axis
- Board width 1.0", board height 1.4"
- 2x14 pin 0.1" header rows for pins/connectors

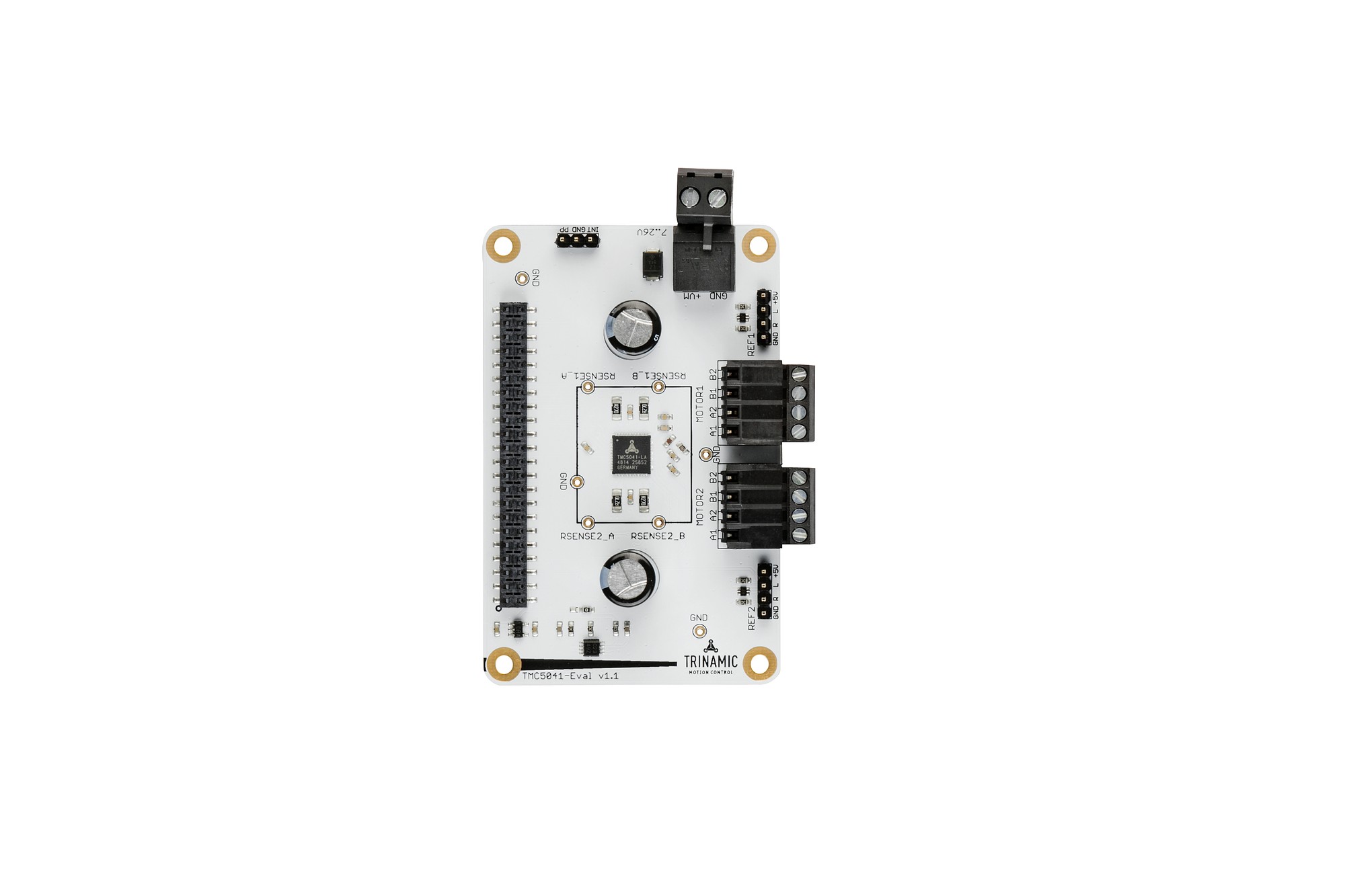

The TMC5041-EVAL allows you to explore all functions of the TMC5041-LA.
The TMC5041-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC5041-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC5041 are accessible with probes on the Eselsbruecke bridge board. To simplify the transfer to your own processor platform the MCU board can be disconnected.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|TMC5041-LA||Material Declaration||Reliability Data||48-LFCSP-7X7X0.9|
|TMC5041-LA-T||Material Declaration||Reliability Data||48-LFCSP-7X7X0.9|
|Wafer Fabrication Data|
