Overview
Features and Benefits
- Initial Accuracy: ±2 mV Max
- Temperature Coefficient: 5 ppm/°C Max
- Low Supply Current: 45 µA Max
- Sleep Mode: 15 µA Max
- Low Dropout Voltage
- Load Regulation: 4 ppm/mA
- Line Regulation: 4 ppm/V
- High Output Current: 30 mA
- Short-Circuit Protection
Product Details
The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy.
The REF19x series is made up of micropower, low dropout voltage (LDV) devices, providing stable output voltage from supplies as low as 100 mV above the output voltage and consuming less than 45 μA of supply current. In sleep mode, which is enabled by applying a low TTL or CMOS level to the SLEEP pin, the output is turned off, and supply current is further reduced to less than 15 µA.
The REF19x series references are specified over the extended industrial temperature range (−40°C to +85°C), with typical performance specifications over −40°C to +125°C for applications such as automotive.

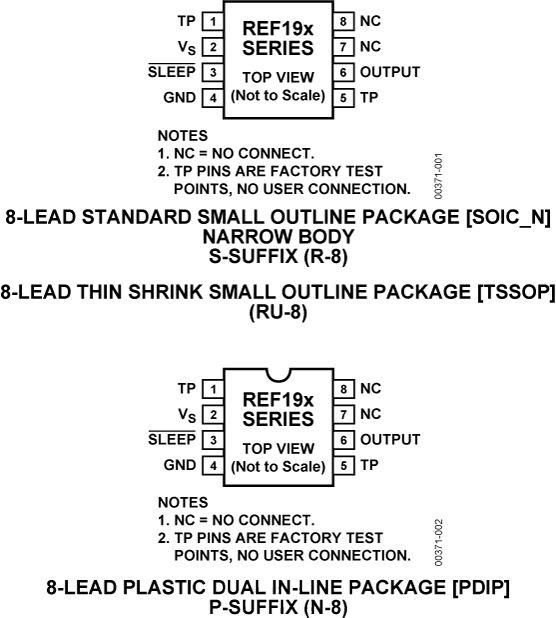

All electrical grades are available in an 8-lead SOIC_N package; the PDIP and TSSOP packages are available only in the lowest electrical grade. Products are also available in die form.
APPLICATIONS
- Portable instruments
- ADCs and DACs
- Smart sensors
- Solar-powered applications
- Loop current-powered instruments
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
Tools & Simulations
SPICE Model
REF192 SPICE Macro Model
Reference Designs (1)
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| REF192ESZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192ESZ-REEL | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192ESZ-REEL7 | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192FSZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192FSZ-REEL | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192FSZ-REEL7 | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192GPZ | Material Declaration | Reliability Data | 8-Lead PDIP | |
| REF192GRUZ | Material Declaration | Reliability Data | 8-Lead TSSOP | |
| REF192GRUZ-REEL7 | Material Declaration | Reliability Data | 8-Lead TSSOP | |
| REF192GSZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192GSZ-REEL | Material Declaration | Reliability Data | 8-Lead SOIC | |
| REF192GSZ-REEL7 | Material Declaration | Reliability Data | 8-Lead SOIC | |
| Wafer Fabrication Data |
