REF05S
PRODUCTIONAerospace +5V Precision Voltage Reference
- Part Models
- 4
- 1ku List Price
- price unavailable
Part Details
|
|
The REF05 precision voltage reference provides a stable +5V output which can be adjusted over a ±6% range with minimal effect on temperature stability. Long-term drift is guaranteed at 100ppm/1000 hours maximum. Single-supply operation over an input voltage range of 7V to 40V, low current drain of 1mA, and excellent temperature stability are achieved with an improved bandgap design. Low noise and low power make the REF05 an excellent choice whenever a stable voltage reference is required. Applications include D/A and A/D converters, portable instrumentation, and digital voltmeters. The versatility of the REF05 is enhanced by its use as a monolithic temperature transducer.
Documentation
Data Sheet 1
Frequently Asked Question 1
Low Dose Rate Radiation Reports 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|

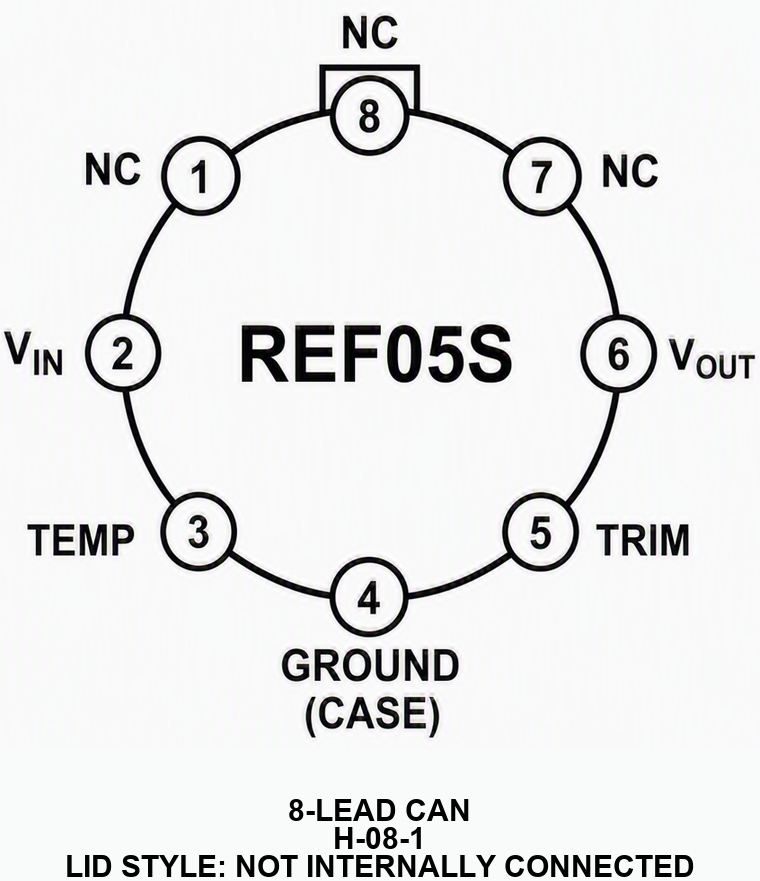

| 5962L0051602VHA | 10-Lead FlatPack | ||
| 5962R0051601VGA | 8 ld Header | ||

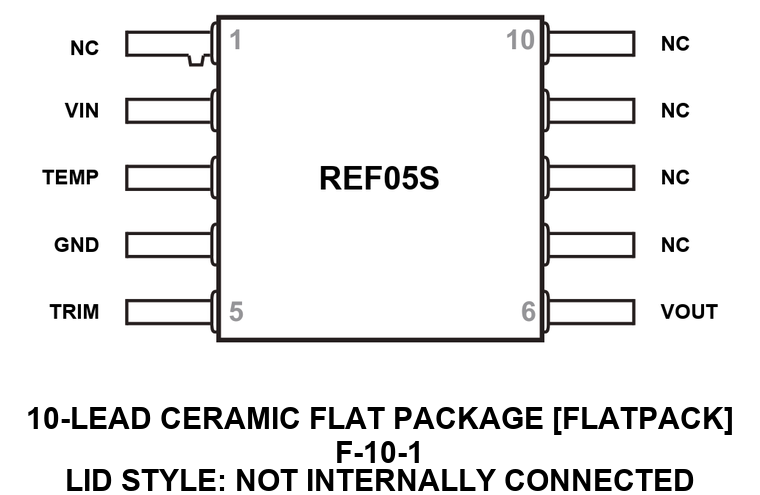

| 5962R0051601VHA | 10-Lead FlatPack | ||

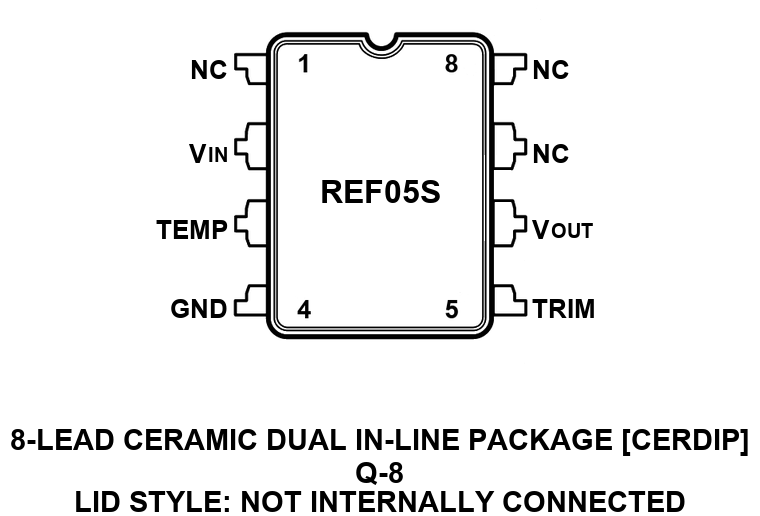

| 5962R0051601VPA | 8-Lead CerDIP |
