OP37S

PRODUCTION

OP37S

Aerospace Low Noise Precision High Speed Op Amp

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price

price unavailable

Features

Low Noise
Low Drift: 0.2 µV/°C typical
High Speed: 17 V/µs Slew Rate 63 MHz Gain Bandwidth

Low Input Offset Voltage: 10 µV typical
Excellent CMRR: 126 dB
(Common-Voltage @ 11 V)
High Open-Loop Gain: 1.8 Million

Additional Details

The OP37 provides the same high performance as the OP-27, but the design is optimized for circuits with gains greater than five. This design change increases slew rate to 17V/µsec and gain-bandwidth product to 63MHz.

The OP37 provides the low offset and drift of the OP07 plus higher speed and lower noise. Offsets down to 25µV and drift of 0.6µV/°C maximum make the OP37 ideal for precision instrumentation applications. Exceptionally low noise, a low 1/f noise corner frequency , and the high gain of 1.8 million, allow accurate high-gain amplification of low-level signals.

The low input bias current of ±10nA and offset current of 7nA are achieved by using a bias-current-cancellation circuit.

The output stage has good load driving capability. A guaranteed swing of ±10V into 600 Ohm and low output distortion make the OP37 an excellent choice for audio applications.

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price

price unavailable

Technical Documents 1

OP37S: Military Data Sheet 05/13/2008

Design Resources 3

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

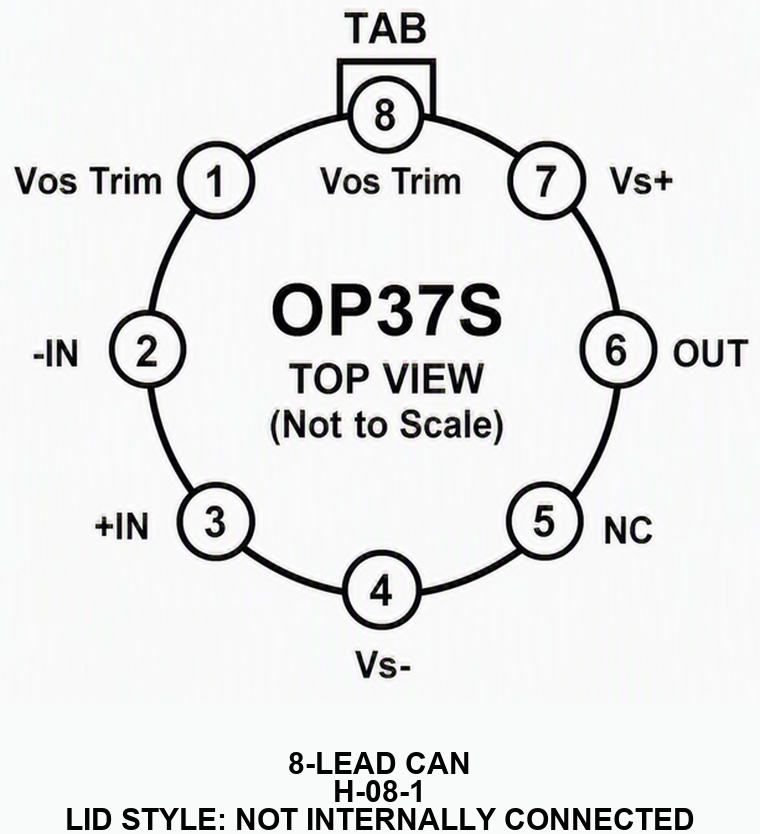

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
5962-8853701VGA	20 ld LCC	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

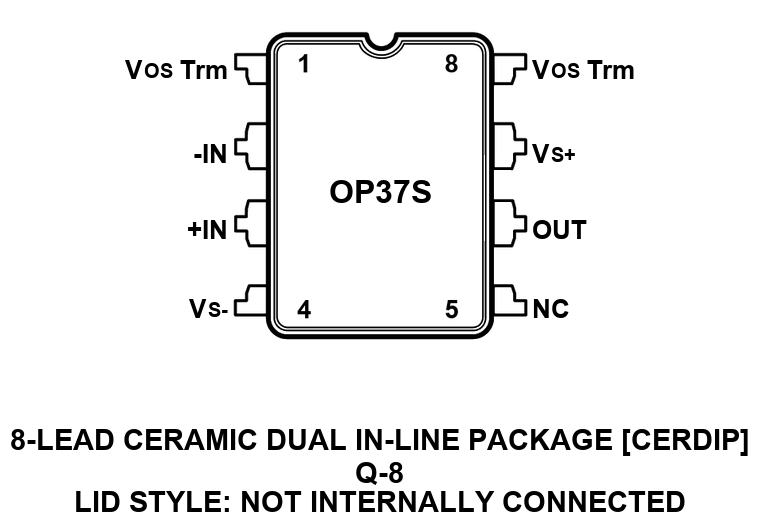

5962-8853701VPA	8-Lead CerDIP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
OP37-207C	CHIPS OR DIE	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

5962-8853701VGA
Pin/Package Drawing
20 ld LCC
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

5962-8853701VPA
Pin/Package Drawing
8-Lead CerDIP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

OP37-207C
Pin/Package Drawing
CHIPS OR DIE
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys
