OP296

Micropower, RRIO Dual Op Amp

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.E)
Documentation View All Documentation
SPICE Model OP296 SPICE Macro Model Rev. A, 5/95 Download 2.27 K SPICE Model OP296G SPICE Macro Model Rev. A, 6/95 Download 2.56 K LTspice OP296 - Operational Amplifiers (Op Amps) Download 1.41 KB
Part Models 4
1ku List Price Starting From $2.18
Features
  • Rail-to-Rail Input and Output Swing
  • Low Power: 60 µA/Amplifier
  • Gain Bandwidth Product: 450 kHz
  • Single-Supply Operation: 3 V to 12 V
  • Low Offset Voltage: 300 µV max
  • High Open-Loop Gain: 500 V/mV
  • Unity-Gain Stable
  • No Phase Reversal
Additional Details
show more Icon

The OP196 family of CBCMOS operational amplifiers features micropower operation and rail-to-rail input and output ranges.

The extremely low power requirements and guaranteed operation from +3 V to +12 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. Their dynamic performance, including 26 nV/(root)Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.

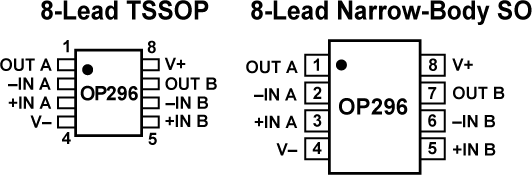

The OP196/OP296/OP496 are specified over the HOT extended industrial (-40°C to +125°C) temperature range. +3 V operation is specified over the 0°C to +125°C temperature range. The single OP196 and the dual OP296 are available in 8-pin plastic DIP and SO-8 surface mount packages. The quad OP496 is available in 14-pin plastic DIP and narrow SO-14 surface mount packages. Check factory for availability of the OP296 and OP496 in the TSSOP package.

Show More Arrow image
file View Data Sheet (Rev.E)
Documentation View All Documentation
SPICE Model OP296 SPICE Macro Model Rev. A, 5/95 Download 2.27 K SPICE Model OP296G SPICE Macro Model Rev. A, 6/95 Download 2.56 K LTspice OP296 - Operational Amplifiers (Op Amps) Download 1.41 KB
Part Models 4
1ku List Price Starting From $2.18
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

OP296

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

pdf

UPDATED 10/10/2002
English

OP196/OP296/OP496: Micropower, Rail-to-Rail Input and Output Operational Amplifiers Data Sheet (Rev.E)

Open PDF File

redirect
287 kB
download

Download PDF

Application Note

4

PDF Vector

pdf

UPDATED 02/14/2015
English
AN-106: A Collection of Amp Applications redirect icon

1094 kB

download

Download PDF

PDF Vector

HTML

UPDATED 10/28/2020
English
AN-106F: Instrumentation Circuitry Using RMS-to-DC Converters redirect icon

PDF Vector

HTML

UPDATED 09/14/2023
English
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications redirect icon

PDF Vector

HTML

UPDATED 09/14/2023
Japanese
AN-581: 単電源アプリケーションでのオペアンプのバイアスとデカップリング redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
OP296GSZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
OP296GSZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
OP296GSZ-REEL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
OP296HRUZ-REEL 8-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 10, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

OP296HRUZ-REEL

PRODUCTION

pdf

PCN21_0035_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

OP296HRUZ-REEL

PRODUCTION

pdf

PCN10_0005_Form

external-icon

xls

Material_Report

Download

pdf

Reliability Report

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 10, 2021

- 21_0035

arrow down

Amkor Philippines as an Alternate Site for TSSOP_4.4

OP296HRUZ-REEL

PRODUCTION

pdf

PCN21_0035_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon
Feb 11, 2011

- 10_0005

arrow down

Halogen Free Material Change for TSSOP Products Assembled at Amkor

OP296HRUZ-REEL

PRODUCTION

pdf

PCN10_0005_Form

external-icon

xls

Material_Report

Download

pdf

Reliability Report

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description
ADA4096-2
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Dual Op Amplifier

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

zoom

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

download icon

Download

 print icon

Print
EVAL-OPAMP-2
EVAL-OPAMP-2 Evaluation Board
Buy Now View Details

Product Detail

The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.

  • EVAL-PRAOPAMP-2CPZ (dual 8-lead LFCSP) CP-8
  • EVAL-PRAOPAMP-2RMZ (dual 8-lead MSOP) RM-8
  • EVAL-PRAOPAMP-2RZ (dual 8-lead SOIC) R-8

Evaluation Kits1

evaluation kit item images

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board
Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

OP296 - Operational Amplifiers (Op Amps) Download

1.41 K
