OP07

NOT RECOMMENDED FOR NEW DESIGNS

Ultralow Offset Voltage Op Amp

Data Sheet (Rev. G) Product Selection Table

Part Models: 5
1ku List Price: Starting From $0.74

Viewing:

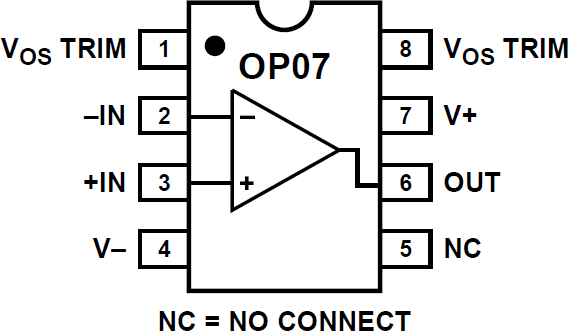

Overview

Low V_OS: 75 µV Max
Low V_OS Drift: 1.3 µV/°C Max
Ultrastable vs. Time: 1.5 µV/Month Max
Low Noise: 0.6 µV p-p Max
Wide Input Voltage Range: ±14 V
Wide Supply Voltage Range: ±3 V to ±18 V
Fits 725, 108A/308A, 741,
AD510 Sockets
125°C Temperature-Tested Dice

The OP07 has very low input offset voltage (75 µV max for OP07E) that is obtained by trimming at the wafer stage. These low offset voltages generally eliminate any need for external nulling. The OP07 also features low input bias current (±4 nA for the OP07E) and high open-loop gain (200 V/mV for the OP07E).The low offsets and high open-loop gain make the OP07 particularly useful for high gain instrumentation applications.

The wide input voltage range of ±13 V minimum combined with a high CMRR of 106 dB (OP07E) and high input impedance provide high accuracy in the noninverting circuit configuration. Excellent linearity and gain accuracy can be maintained even at high closed-loop gains. Stability of offsets and gain with time or variations in temperature is excellent. The accuracy and stability of the OP07, even at high gain, combined with the freedom from external nulling have made the OP07 an industry standard for instrumentation applications.

The OP07 is available in two standard performance grades. The OP07E is specified for operation over the 0°C to 70°C range, and the OP07C is specified over the –40°C to +85°C temperature range.

The OP07 is available in epoxy 8-lead PDIP and 8-lead SOIC. It is a direct replacement for 725, 108A, and OP05 amplifiers; 741 types may be directly replaced by removing the 741’s nulling potentiometer. For improved specifications, see the OP177 or OP1177. For ceramic DIP and TO-99 packages and standard micro circuit (SMD) versions, see the OP77.

Part Models: 5
1ku List Price: Starting From $0.74

Documentation

Data Sheet 3

OP07: Ultralow Offset Voltage Operational Amplifier Data Sheet (Rev.G) 10/10/2002

OP07: Precision Op Amp Data Sheet (Rev.0) 01/01/1996

OP07 10/10/2022

Frequently Asked Question 1

FAQ 12/07/2014

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
OP07CPZ	8-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
OP07CSZ	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
OP07CSZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
OP07CSZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
OP07EPZ	8-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 11, 2025 - 25_0151 Qualification of Wafer Fabrication Site Analog Devices, Inc. Camas WA for (6um Bipolar) Products
		PCN25_0151_Form Material_Report Qualification Results Summary
OP07CPZ	PRODUCTION
OP07CSZ	PRODUCTION
OP07CSZ-REEL	PRODUCTION
OP07CSZ-REEL7	PRODUCTION
OP07EPZ	PRODUCTION
Nov 7, 2011 - 11_0189 OP07 and OP177 Redesign of Vos Trims
		PCN11_0189_Form Material_Report Qualification Plan Summary
OP07CPZ	PRODUCTION
OP07CSZ	PRODUCTION
OP07CSZ-REEL	PRODUCTION
OP07CSZ-REEL7	PRODUCTION
OP07EPZ	PRODUCTION
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
OP07CPZ	PRODUCTION
OP07EPZ	PRODUCTION
Dec 13, 2021 - 20_0223 CANCELLED: OP07 Die Revision, Wafer Fabrication Site Transfer & Process Change
		PCN20_0223_Form Material_Report Qualification Results Summary
OP07CSZ	PRODUCTION
OP07CSZ-REEL	PRODUCTION
OP07CSZ-REEL7	PRODUCTION
Jul 20, 2012 - 12_0105 Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor
		PCN12_0105_Form Material_Report Qualification Report Summary
OP07CSZ	PRODUCTION
OP07CSZ-REEL	PRODUCTION
OP07CSZ-REEL7	PRODUCTION
Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
OP07EPZ	PRODUCTION	PCN11_0182_Form Material_Report

This is the most up-to-date revision of the Data Sheet.
