MAX96793

RECOMMENDED FOR NEW DESIGNS

CSI-2 to GMSL3/2 Serializer

Single CSI-2 to GMSL3 Serializer

Data Sheet (Rev. 3) Product Selection Table
Viewing:

Part Details

  • Automotive Grade High Speed Link
    • -18db at 3GHz (12Gbps) Max Insertion Loss
    • -21.0dB at 3GHz (6Gbps) Max Insertion Loss
    • -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
    • Auto Adapt for Changes in Channel Conditions
    • Operates at -40°C to +105°C Ambient
  • MIPI CSI-2 v1.3 Input Port
    • MIPI D-PHY v1.2 rated at 2.5Gbps/Lane (up to 4Lanes)
    • MIPI C-PHY v1.0 rated at 3.42Gbps/Lane (up to 2Lanes)
    • Polarity Flip and Data Lane Reassignment
    • Supports 16 Virtual Channels
  • Single GMSL3 Output
    • 12Gbps GMSL3 Forward Link Rate
    • GMSL2 Backward Compatible 6Gbps / 3Gbps Link-Rates
    • 187.5Mbps Reverse Link Rate
  • Bidirectional Control-Channel Supports
    • 11 Configurable GPIO
    • 1 x I2C/UART Port up to 1MHz
    • 2x Pass Through Ports
      • Up to 2M Baud as UART
      • Up to 1Mb/s as I2Ct
    • 1x SPI Port, up to 25MHz
  • Reduce BOM and Space Savings
    • Tiny 5x5mm TQFN
    • RoR for Crystal-Free Operation on Serializers
    • Industry’s Smallest Power over Coax (PoC)
  • Onboard Temperature Monitoring, ±2.5°C accuracy
  • Safety Ready
    • ASIL-B Compliant
  • ASIL-D Decomposition Compliant
MAX96793
CSI-2 to GMSL3/2 Serializer

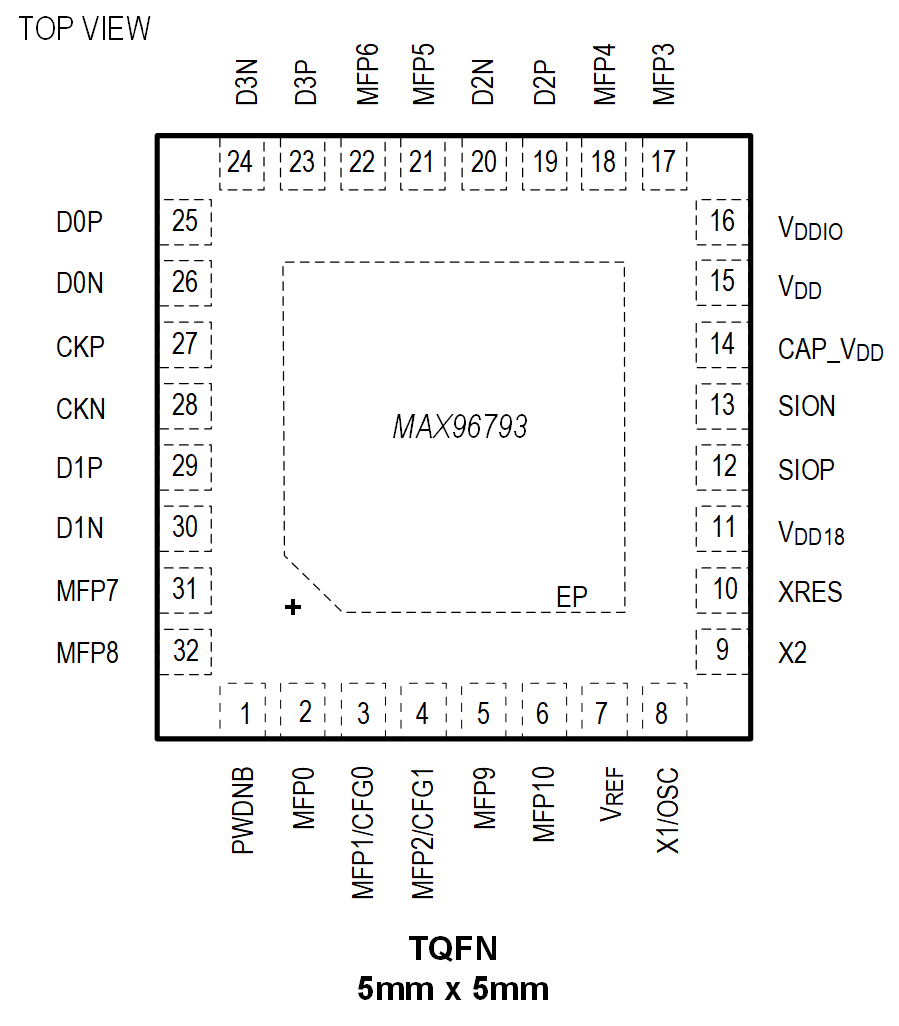

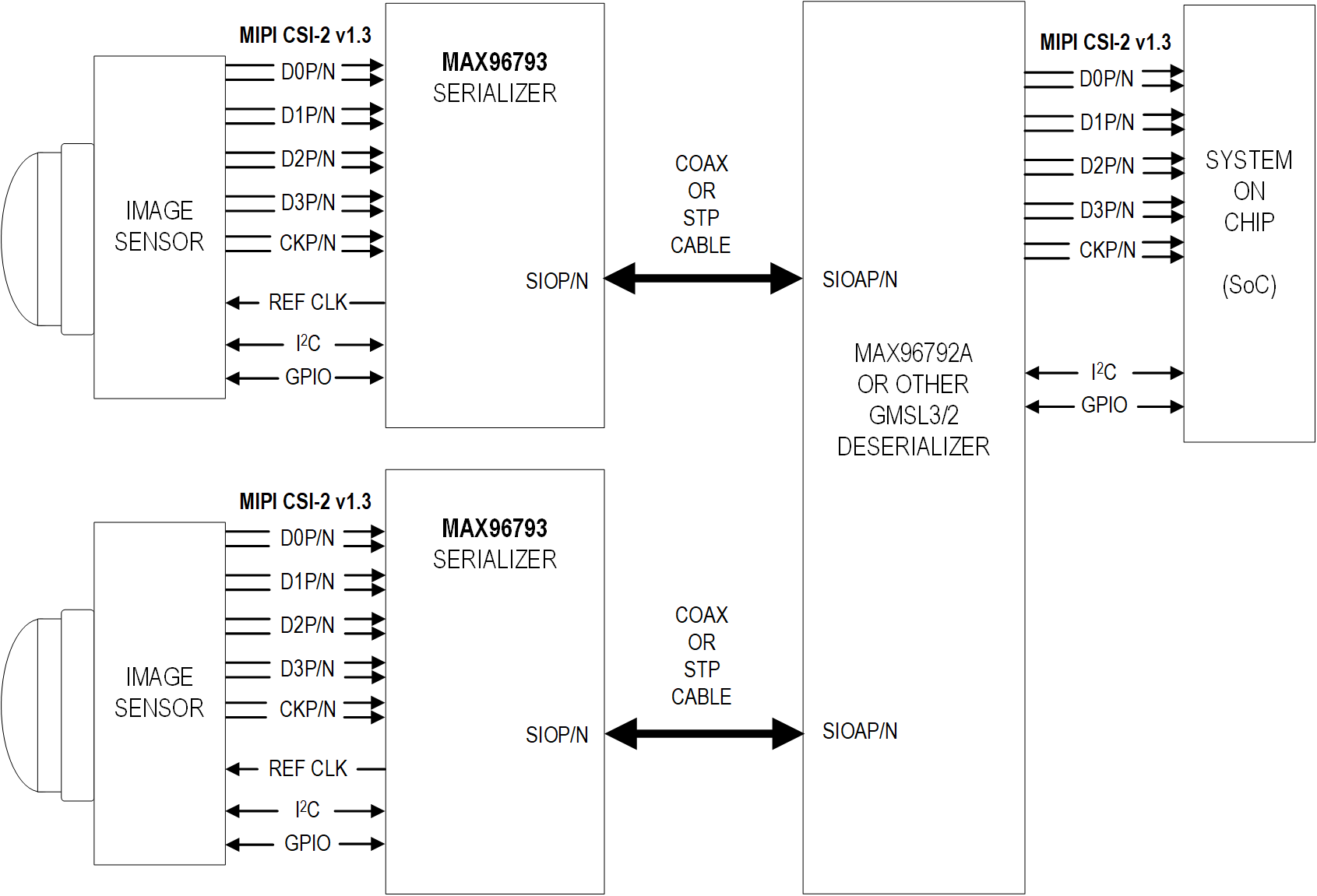

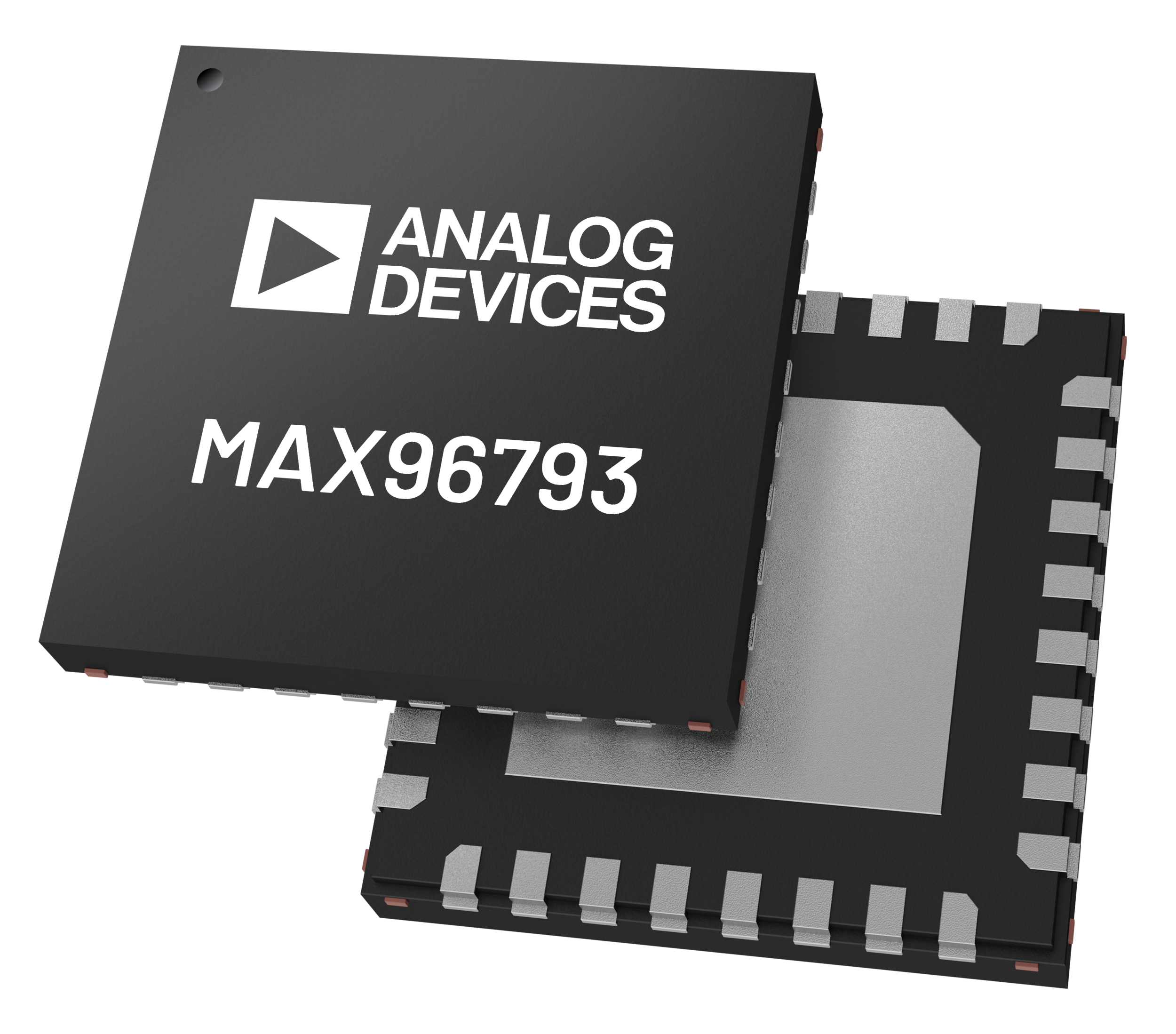

MAX96793 Simplified Application Circuit MAX96793 Pin Configuration MAX96793 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 3

Application Note 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Device Drivers 1

Hardware Ecosystem

Parts Product Life Cycle Description
Internal Power Switch Buck Regulators 2
MAX20019
PRODUCTION 3.2MHz, 500mA Dual Step-Down Converters for Automotive Cameras
MAX16922
PRODUCTION 2.2MHz, Dual, Step-Down DC-DC Converters, Dual LDOs, and Active-Low RESET
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

Software Development 2

IBIS Model 1

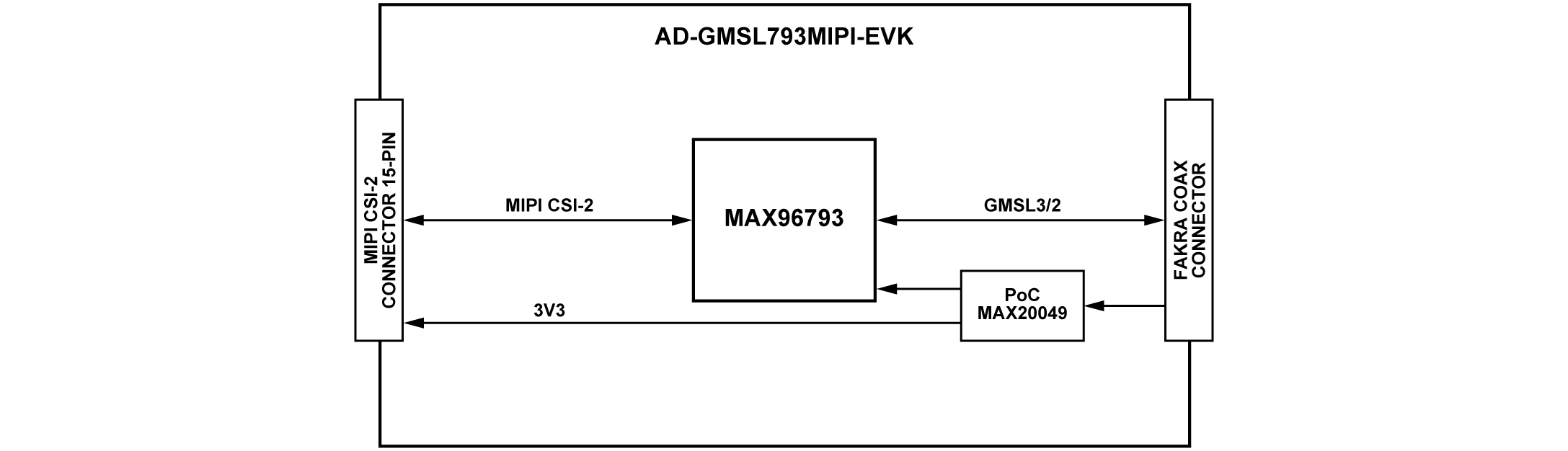

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
MAX96717/F/R and MAX96793 EVKit

Evaluation Kit for the MAX96717, MAX96717F, MAX96717R and MAX96793

Buy Now View Details

Features and Benefits

  • Ability for Serializer to send GMSL data to Deserializer, converting it into MIPI CSI-2
  • Windows 10 or Higher Compatible Software Support
  • USB Controlled Interface (Cable Included)
  • Powerful and Simple GUI for Comprehensive Device Feature Evaluation
  • Board Powered by USB, 12V Wall Adapter or External Power Supply
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The MAX96717 DPHY evaluation kit (EV kit) provides a proven design to evaluate the MAX96717 high-bandwidth gigabit multimedia serial link (GMSL) serializer with spread spectrum and full-duplex control channel using a standard FAKRA coaxial (Coax) or HMTD cable. The EV kit also includes Windows® 7 and Windows® 10 software that provides a simple graphical user interface (GUI) for exercising features of the device. The EV kit comes with a MAX96717, MAX96717F, MAX96717R, or MAX96793 IC installed..

For complete GMSL evaluation using a standard FAKRA coaxial cable or HMTD cable, order the MAX96717 Coax EV kit and a companion deserializer board (MAX96716 Coax EV kit referenced in the data sheet).
MAX96717/F/R and MAX96793 EVKit
Evaluation Kit for the MAX96717, MAX96717F, MAX96717R and MAX96793
MAX96717EVKIT Board Photo Angle View MAX96717EVKIT Board Photo Top View MAX96717EVKIT Board Photo Bottom View MAX96717 DPHY EV Kit Block Diagram
