Low-Dropout, 300mA Linear Regulators in SOT23

Highest-Power, 300mA, Low-Dropout Linear Regulator in Thin-SOT23

PRODUCTION

Part Details

MAX8887, MAX8888: Typical Operating Circuit slide

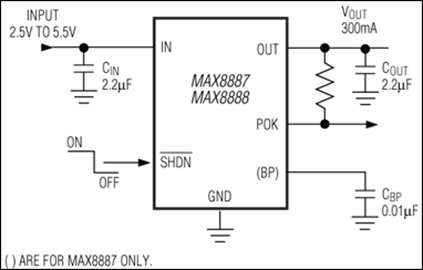

MAX8887, MAX8888: Typical Operating Circuit

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 8

1ku List Price Starting From $1.00

Features

Guaranteed 300mA Output Current (500mA for Pulsed Loads)
Low 100mV Dropout at 200mA Load
POK Output (MAX8888)
42µV_RMS Output Noise (MAX8887)
Preset Output Voltages (1.5V, 1.8V, 2.85V, and 3.3V)
55µA No-Load Supply Current
Thermal-Overload and Short-Circuit Protection
Foldback Output Current-Limit Protection
60dB PSRR at 1kHz
0.1µA Shutdown Current
Thin 5-Pin SOT23 Package, 1mm High

Additional Details

The MAX8887/MAX8888 low-dropout linear regulators operate from a 2.5V to 5.5V input and deliver up to 300mA continuous (500mA pulsed) current. The MAX8887 is optimized for low-noise operation, while the MAX8888 includes an open-drain power-OK (POK) ouput flag. Both regulators feature exceptionally low 100mV dropout at 200mA. These devices are available in a variety of preset output voltages in the 1.5V to 3.3V range.

An internal PMOS pass transistor allows the low 55µA supply current to remain independent of load, making these devices ideal for portable battery-powered equipment such as personal digital assistants (PDAs), cellular phones, cordless phones, and notebook computers. Other features include a micropower shutdown mode, short-circuit protection, thermal shutdown protection, and an active-low open-drain POK output that indicates when the output is out of regulation. The MAX8887/MAX8888 are available in a thin 5-pin SOT23 package that is only 1mm high.

Applications

Digital Still Cameras
Handheld Instruments (PDAs, Palmtops)
Notebook Computers
PCMCIA Cards
PDAs and Palmtop Computers
Wireless Handsets
