MAX8712

The MAX8710/MAX8711/MAX8712 offer complete linear-regulator power-supply solutions for thin-film transistor (TFT) liquid-crystal-display (LCD) panels used in LCD monitors and LCD TVs. All three devices include a high-performance AV_DD linear regulator, a positive charge-pump regulator, a negative charge-pump regulator, and built-in power-up sequence control. The MAX8710 and MAX8711 also include a high-current operational amplifier. Additionally, the MAX8710 provides logic-controlled high-voltage switches to control the positive charge-pump output.

The linear regulator directly steps down the input voltage to generate the supply voltage for the source-driver ICs (AV_DD). The two built-in charge-pump regulators are used to generate the TFT gate-on and gate-off supplies. The high-current operational amplifier is typically used to drive the LCD backplane (VCOM) and features high output current (150mA), fast slew rate (12V/µs), and wide bandwidth (12MHz). Its rail-to-rail inputs and output maximize flexibility.

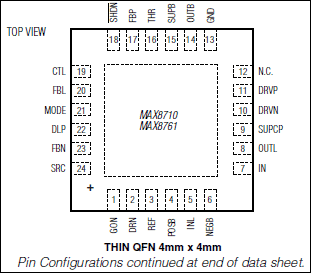

The MAX8710 is available in a 24-pin thin QFN package, the MAX8711 is available in a 16-pin thin QFN package, and the MAX8712 is available in a 12-pin thin QFN package. All three packages are 4mm x 4mm with a maximum thickness of 0.8mm for ultra-thin LCD panel design. They operate over the -40°C to +100°C temperature range.

Applications

• LCD Monitor Panel Modules
• LCD TV Panel Modules
