Overview
Features and Benefits
- Guaranteed 200mA Output Current
- Low 100mV (typ) Dropout at 100mA
- Low 40µVRMS Output Noise
- Low 80µA Operating Supply Current
- 62dB PSRR
- < 1µA Shutdown Current
- Thermal-Overload and Short-Circuit Protection
- Output Current Limit
- Tiny 1.16mm x 1.57mm x 0.66mm UCSP (3 x 2 Grid)

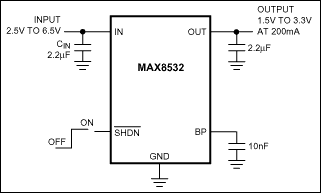

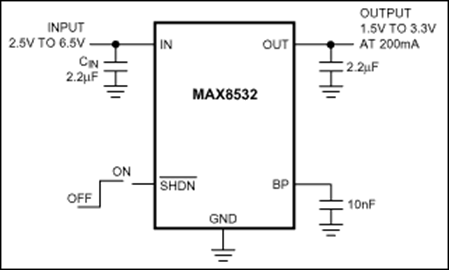

Product Details
The MAX8532 offers the benefits of low-dropout voltage and ultra-low power regulation in a subminiaturized UCSP, making it ideal for space-restricted portable equipment. The device operates from a 2.5V to 6.5V input and delivers up to 200mA, with low dropout of 100mV (typ) at 100mA. Designed with an internal P-channel MOSFET pass transistor, the supply current is kept at a low 80µA, independent of the load current and dropout voltage. Other features include short-circuit protection and thermal-shutdown protection.
The MAX8532 includes a reference bypass pin for low output noise (40µVRMS) and a logic-controlled shutdown input. The device is available in a tiny 6-pin UCSP.
Applications
- Cell Phones/Cordless Phones
- Digital Cameras
- Handheld Instruments (PDAs, Palmtops)
- Notebook Computers
- PCMCIA Cards
- PDAs and Palmtop Computers
- Wireless Local Area Networks (WLANs)
