MAX7705: µP Power Supply Monitor with Reset Data Sheet (Rev. 0)6/1/1993PDF69K
Overview
Features and Benefits
- No External Components
- Low Cost
- Precise Reset Threshold
- 280ms Power-On Reset Delay
- 8-Pin DIP and SO Packages
Product Details

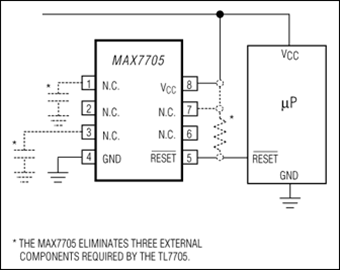

In applications with microprocessors (µPs) that have a RESET input, the MAX7705 is functionally and socket compatible with the TL7705, but requires no external components. It provides power-supply glitch immunity and a guaranteed power-up reset delay, while typically consuming 1/27th the power from a +5V supply.
The MAX7705 monitors the power supply in µP and digital systems. The RESET output is valid for VCC down to 1V. The device offers excellent circuit reliability and low cost by eliminating external components and adjustments.
A system reset is provided during power-up, power-down, and brownout conditions. When VCC is below the reset threshold, RESET is low and holds the µP in reset. RESET will go high 280ms after VCC rises above the reset threshold. The MAX7705 is available in 8-pin DIP and SO packages.
Applications
- Minimum Component Count Low-Cost Processor Systems
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
