MAX7310
2-Wire-Interfaced 8-Bit I/O Port Expander with Reset
Show More
2-Wire-Interfaced 8-Bit I/O Port Expander with Reset can Sink Up to 30mA per Port for SMBus™-Compatible and I²C-Compatible Applications
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 400kHz 2-Wire Interface
- 2.3V to 5.5V Operation
- Low Standby Current (1.7µA typ)
- Bus Timeout for Lock-Up-Free Operation
- 56 Slave ID Addresses
- Polarity Inversion
- Eight I/O Pins that Default to Inputs on Power-Up
- 5V Tolerant Open-Drain Output on I/O0
- 4mm x 4mm, 0.8mm Thin QFN Package
- -40°C to +125°C Operation
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

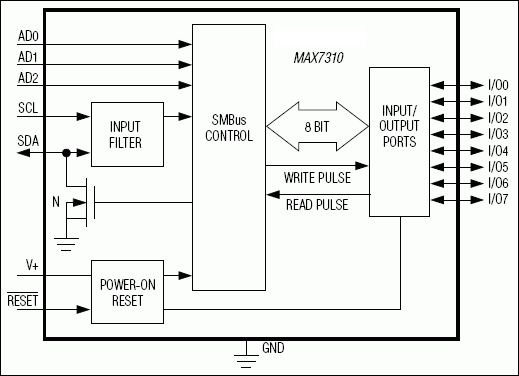

The MAX7310 provides 8-bit parallel input/output port expansion for SMBus™-compatible and I²C-compatible applications. The MAX7310 consists of an input port register, an output port register, a polarity inversion register, a configuration register, a bus timeout register, and an SMBus/I²C-compatible serial interface. The system master can invert the MAX7310 input data by writing to the active-high polarity inversion register. The system master can enable or disable bus timeout by writing to the bus timeout register.
Any of the eight I/O ports can be configured as input or output. An active-low reset input sets the eight I/Os as inputs. Three address-select pins configure one of 56 slave ID addresses.
The MAX7310 is available in 16-pin thin QFN, TSSOP, and QSOP packages and is specified over the -40°C to +125°C automotive temperature range.
Applications
- Cellular Handsets
- Desktop Computers: Motherboards
- GPIO
- Industrial Control
- Industrial Displays
- Instrumentation and Test Measurement
- Medical Equipment
- RAID Systems
- Servers
- White LED Drivers
