MAX6133

3ppm/°C, Low-Power, Low-Dropout Voltage Reference

Show More showmore-icon

Low-Power, Low-Dropout Voltage Reference has 3ppm/°C Drift and Fits in Tiny µMAX® Package

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 18
1ku List Price Starting From $4.97
Features
  • Low Temperature Coefficient
    • 3ppm/°C (max), SO
    • 5ppm/°C (max), µMAX
  • Tiny 5mm x 3mm µMAX Package
  • Low 200mV (max) Dropout Voltage
  • Low 40µA Quiescent Current
  • ±0.04% (max) Initial Accuracy
  • Low 16µVP-P Noise (0.1Hz to 10Hz) (2.5V Output)
  • 15mA Output Source-Current Capability
  • Wide 2.7V to 12.6V Supply Voltage
  • Excellent Line (30µV/V, max) and Load (0.05mV/mA, max) Regulation

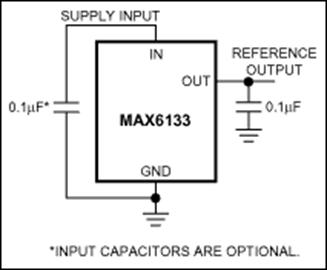

Additional Details
show more Icon

The MAX6133 high-precision, low-power, low-dropout voltage reference features a low 3ppm/°C (max) temperature coefficient and a low dropout voltage (200mV, max). This series-mode device features bandgap technology for low-noise performance and excellent accuracy. Load regulation specifications are guaranteed for source currents up to 15mA. The laser-trimmed, high-stability thin-film resistors, together with post-package trimming, guarantee an excellent initial accuracy specification (0.04%, max). The MAX6133 is a series voltage reference and consumes only 40µA of supply current (virtually independent of supply voltage). Series-mode references save system power and use minimal external components compared to 2-terminal shunt references.

The MAX6133 is available in 8-pin µMAX and SO packages. The unique blend of tiny packaging and excellent precision performance make these parts ideally suited for portable and communication applications.

Applications

  • A/D and D/A Converters
  • Handheld Instruments (PDAs, Palmtops)
  • High-Accuracy Industrial and Process Control
  • Power Supplies
  • Precision Regulators
Show More Arrow image
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 18
1ku List Price Starting From $4.97
