MAX4491
Low-Cost, High-Slew-Rate, Rail-to-Rail I/O Op Amps in SC70
10MHz Op Amp Comes in Ultra-Small SC70 Package and Drives 2kΩ Loads
Top
Overview
Features and Benefits
- +2.7V to +5.5V Single-Supply Operation
- 10V/µs Slew Rate
- Rail-to-Rail Input Common-Mode Voltage Range
- Rail-to-Rail Output Voltage Swing
- 10MHz Gain-Bandwidth Product
- Unity-Gain Stable with Capacitive Loads Up to 300pF
- 50pA Input Bias Current
- Ultra-Small, 5-Pin SC70 Package (MAX4490)
Product Details
The MAX4490/MAX4491/MAX4492 single/dual/quad, low-cost CMOS op amps feature rail-to-rail input and output capability from either a single +2.7V to +5.5V supply or dual ±1.35V to ±2.75V supplies. These amplifiers exhibit a high slew rate of 10V/µs and a gain-bandwidth product of 10MHz. They can drive 2kΩ resistive loads to within 55mV of either supply rail and remain unity-gain stable with capacitive loads up to 300pF.
The MAX4490 is offered in the ultra-small, 5-pin SC70 package, which is 50% smaller than the standard 5-pin SOT23 package. Specifications for all parts are guaranteed over the automotive (-40°C to +125°C) temperature range.
Applications
- Audio Signal Conditioning
- Automotive Sensors
- Base Station/Wireless Infrastructure
- Battery-Powered Applications
- Cellular Handsets
- Computers: Desktops, Workstations, and Servers
- Computers: Motherboards
- Computers: Notebook
- GPS Solutions
- High-Side/Low-Side Current Sensors
- Low-Power, Low-Voltage Applications
- Portable Equipment
- RF Power Amplifier Control
- Sensor Amplifiers
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
Product Recommendations
MAX4491 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

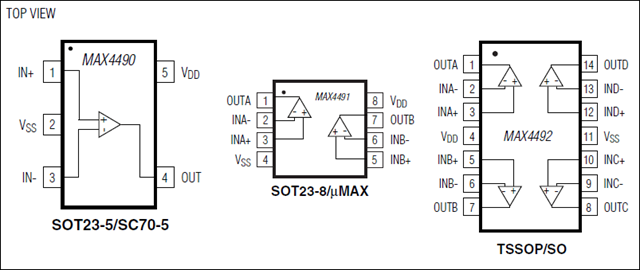

| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX4491AKA+ | Material Declaration | Reliability Data | 8-SOT_23-N/A | |
| MAX4491AKA+T | Material Declaration | Reliability Data | 8-SOT_23-N/A | |
| MAX4491AUA+ | Material Declaration | Reliability Data | Micro-MAX, Thin Shrink Small-Outline | |
| MAX4491AUA+T | Material Declaration | Reliability Data | Micro-MAX, Thin Shrink Small-Outline | |
| Wafer Fabrication Data |
