Overview

Features and Benefits

  • 2.7V to 20V Single Supply or ±1.35V to ±10V Dual Supplies
  • 0.5pA (max) Input Bias Current
  • 5nV/ Input Voltage Noise
  • 10MHz Bandwidth
  • 8V/µs Slew Rate
  • Rail-to-Rail Output
  • Integrated EMI Filters
  • 1.2mA Supply Current per Amplifier

Product Details

The MAX44242 provides a combination of high voltage, low noise, low input bias current in a dual channel and features rail-to-rail at the output.

This dual amplifier operates over a wide supply voltage range from a single 2.7V to 20V supply or split ±1.35V to ±10V supplies and consumes only 1.2mA quiescent supply current per channel.

The MAX44242 is a unity-gain stable amplifier with a gain-bandwidth product of 10MHz. The device outputs drive up to 200pF load capacitor without any external isolation resistor compensation.

The MAX44242 is available in 8-pin SOT23 and µMAX® packages and is rated for operation over the -40°C to +125°C automotive temperature range.

Design Solution: The Incredible Shrinking Encoder ›

Applications

  • Chemical Sensor Interface
  • Industrial: Process and Control
  • Medical Pulse Oximetry

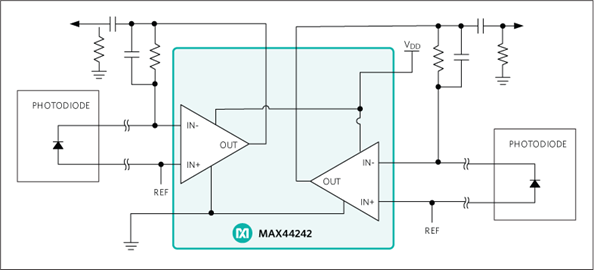

  • Photodiode Sensor Interface
  • Precision Instrumentation

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX44242AKA+ Material Declaration Reliability Data 8-SOT_23-N/A
MAX44242AKA+T Material Declaration Reliability Data 8-SOT_23-N/A
MAX44242AUA+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
MAX44242AUA+T Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
Wafer Fabrication Data MAX44242 Reliability Data
