Features and Benefits
- Ultra-Low Voltage Operation: Guaranteed Specifications from 1.0V to 5.5V
- Input Common-Mode Range: 0 to (VCC - 0.2V)
- Ultra-Low Power Consumption: 9µA Supply Current (typ)
- Optimized for Operation from Single-Cell Battery-Powered Systems
- Compatible with 3.0V and 5.0V Single-Supply Systems
- Low Offset Voltage: 0.2mV
- Low Input Bias Current: 5nA
- High Open-Loop Voltage Gain: 90dB
- Rail-to-Rail Output Stage Drives 5kΩ Load
- No Output Phase Reversal for Overdriven Inputs

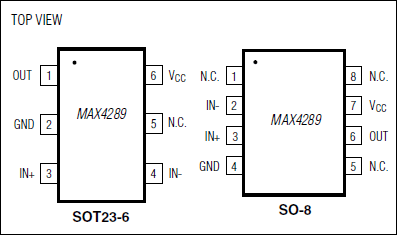

- Available in a Tiny 6-Pin SOT23 (3mm x 3mm)
The MAX4289 micropower, operational amplifier is optimized for ultra-low supply voltage operation. The amplifier consumes only 9µA of quiescent supply current and is fully specified for operation from a single 1.0V to 5.5V power supply. This ultra-low voltage operation together with the low quiescent current consumption make the MAX4289 ideal for use in battery-powered systems operated from as little as a single alkaline cell. The MAX4289 also features a wide input common-mode range that includes the ground, and an output voltage swing that is virtually rail-to-rail, allowing almost all of the power supply to be used for signal voltage.
The low input offset voltage and low input bias current specifications along with the high open-loop gain make the MAX4289 well-suited to applications requiring a high degree of precision.
The MAX4289 is available in a tiny 6-pin SOT23 package. All specifications are guaranteed over the extended temperature range of -40°C to +85°C.
- Air Battery
- Battery-Powered Instrumentation
- Cellular Handsets
- Cellular Phones
- Digital Cameras (DIGICAMs)
- Glucose Meters
- GPS Solutions
- Hearing Aids Using Zinc
- IP Camera
- MP3 and Portable Media Players
- Notebook Computers
- Portable Communication Devices
- Portable Electronic Equipment
- Sensor Amplifiers
- Single-Cell Systems
- Strain Gauges
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
Tools & Simulations
MAX4289 Companion Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|MAX4289ESA+||Material Declaration||Reliability Data||Small-Outline IC, Narrow (0.15in)|
|MAX4289ESA+T||Material Declaration||Reliability Data||Small-Outline IC, Narrow (0.15in)|
|MAX4289EUT+||Material Declaration||Reliability Data||Small-Outline Transistor Package|
|MAX4289EUT+T||Material Declaration||Reliability Data||Small-Outline Transistor Package|
|Wafer Fabrication Data|
