MAX40007
nanoPower Op Amp in Ultra-Tiny WLP and SOT23 Packages
Saves Power and Board Space in Mobile Devices—Op Amp Consumes Only 750nA in Tiny, 1.1mm x 0.76mm WLP
Top
Overview
Features and Benefits
- Ultra-Low Power Preserves Battery Life
- 700nA Typical Supply Current
- Single 1.7V to 5.5V Supply Voltage Range
- Amplifier Can be Powered From the Same 1.8V/2.5V/3.3V/5V System Rails
- Tiny Packages Save Board Space
- 1.1mm x 0.76mm WLP-6 with 0.35mm Bump Pitch
- SOT23-6 Package
- Precision Specifications for Buffer/Filter/Gain Stages
- Low 300µV Input Offset Voltage
- Rail-to-Rail Output Voltage
- 20kHz BW
- Low 40pA Input Bias Current
- Unity-Gain Stable
- -40°C to 125°C Temperature Range
Product Details

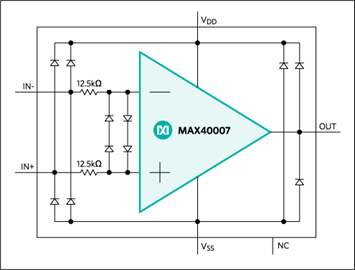

The MAX40007 is a single operational amplifier that provides a maximized ratio of gain bandwidth (GBW) to supply current and is ideal for battery-powered applications such as portable instrumentation, portable medical equipment, and wireless handsets.
This CMOS op amp features an ultra-low supply current of only 700nA (typ), ground-sensing inputs, and rail-to-rail outputs; operating from a single 1.7V to 5.5V supply, allowing the amplifier to be powered by the same 1.8V, 2.5V, or 3.3V nominal supply that powers the microcontroller. The MAX40007 amplifier is unity-gain stable with a 20kHz GBW product.
The ultra-low supply current, low operating voltage, and rail-to-rail output capabilities make this operational amplifier ideal for use in single lithium ion (Li+), two-cell NiCd or alkaline battery systems.
The MAX40007 is available in a 6-pin SOT23 package and an ultra-tiny 6-bump, 1.1mm x 0.76mm wafer-level package (WLP) with a bump pitch of 0.35mm. The amplifier is specified over the -40°C to 125°C operating temperature range.
Applications
- Fitness wearables
- Mobile Phones
- Notebook and Tablet Computers
- Portable Instrumentation
- Portable Medical Devices
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)
Documentation & Resources
Tools & Simulations
SPICE Model
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX40007ANT+ | Material Declaration | Reliability Data | 6-WLCSP-N/A | |
| MAX40007ANT+T | Material Declaration | Reliability Data | 6-WLCSP-N/A | |
| MAX40007AUT+ | Material Declaration | Reliability Data | 6-SOT_23-N/A | |
| MAX40007AUT+T | Material Declaration | Reliability Data | 6-SOT_23-N/A | |
| Wafer Fabrication Data |
