MAX31826

1-Wire Digital Temperature Sensor with 1Kb Lockable EEPROM

Show More showmore-icon

Digital Temperature Sensor with 1Kb of EEPROM Saves Space and Eases Design of Multisensor Systems

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $2.55
Features
  • Unique 1-Wire Interface Requires Only One Port Pin for Communication
  • Integrated Temperature Sensor and EEPROM Reduce Component Count
    • Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
    • ±0.5°C Accuracy from -10°C to +85°C
    • 12-Bit Temperature Resolution (0.0625°C)
    • 1Kb EEPROM Can Be Locked to Prevent Further Writes
  • Multidrop Capability Simplifies Multisensor Systems
    • Each Device Has a Unique 64-Bit Serial Code Stored in On-Board ROM
    • Four Pin-Programmable Bits to Uniquely Identify Up to 16 Sensor Locations on a Bus
  • Can Be Powered from Data Line (3.0V to 3.7V Power-Supply Range)
  • 8-Pin µMAX® and TDFN Packages
Additional Details
show more Icon

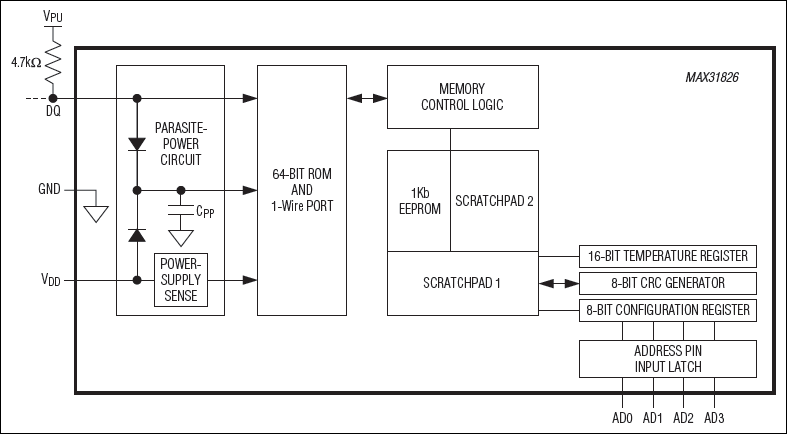

The MAX31826 digital thermometer provides 12-bit temperature measurements and communicates over a 1-Wire® bus that by definition requires only one data line (and ground) for communication with a central microcontroller. It has a -55°C to +125°C operating temperature range and is accurate to ±0.5°C over the -10°C to +85°C range. In addition, the device can derive power directly from the data line ("parasite power"), eliminating the need for an external power supply.

Each device has a unique 64-bit serial code, which allows multiple devices to function on the same 1-Wire bus. Therefore, it is simple to use one microcontroller (the master device) to control many devices distributed over a large area. The device includes 128 bytes (1Kb) of EEPROM for storage of system data. The EEPROM can be locked to permanently prevent any further data writes. Four location address inputs simplify mapping of individual devices to specific locations.

Applications

  • Building Automation
  • Consumer Equipment
  • Industrial Systems
  • Module Identification
  • System Calibration
Show More Arrow image
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $2.55
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX31826

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • Design Note
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 03/17/2021
English

MAX31826: 1-Wire Digital Temperature Sensor with 1Kb Lockable EEPROM Data Sheet (Rev.1)

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 07/10/2013
Chinese

MAX31826: 带有1Kb可锁存EEPROM的1-Wire数字温度传感器 Data Sheet (Rev.0)

Open PDF File

redirect
688.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 01/12/2023
English
MAX31826 Reliability Data redirect icon

19.18K

download

Download PDF

Design Note

1

PDF Vector

HTML

UPDATED 03/23/2006
English
Single-Wire Serial Bus Carries Isolated Power and Data redirect icon

Application Note

3

PDF Vector

HTML

UPDATED 03/28/2002
English
1-Wire Search Algorithm redirect icon

PDF Vector

HTML

UPDATED 12/05/2003
Chinese
1-Wire搜索算法 redirect icon

PDF Vector

HTML

UPDATED 08/16/2002
Japanese
1-Wire 検索アルゴリズム redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX31826MTA+ Thin Dual Flatpack No Leads, Exposed Pad external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX31826MTA+T Thin Dual Flatpack No Leads, Exposed Pad external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX31826MUA+ Micro-MAX, Thin Shrink Small-Outline external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX31826MUA+T Micro-MAX, Thin Shrink Small-Outline external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 19, 2018

- 1753N

ASSEMBLY

MAX31826MUA+

PRODUCTION

MAX31826MUA+T

PRODUCTION

pdf

pcn_1753n

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 19, 2018

- 1753N

arrow down

ASSEMBLY

MAX31826MUA+

PRODUCTION

MAX31826MUA+T

PRODUCTION

pdf

pcn_1753n

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

1-Wire Temperature Sensors2
DS1825
popup image
Cart

PRODUCTION

Programmable Resolution 1-Wire Digital Thermometer With 4-Bit ID

DS18B20
popup image
Cart

PRODUCTION

Programmable Resolution 1-Wire Digital Thermometer

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

MAX31826EVKIT

Evaluation Kit for the MAX31826

zoom

MAX31826EVKIT

Evaluation Kit for the MAX31826

download icon

Download

 print icon

Print
MAX31826EVKIT
Evaluation Kit for the MAX31826

Features and Benefits

  • On-Board I2C to 1-Wire Converter (DS2482)
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows XP®, Windows 7/8/8.1/10-Compatible Software
Buy Now View Details

Product Detail

The MAX31826 evaluation system (EV system) demonstrates the MAX31826 1-Wire® digital temperature sensor with 1kB lockable electrically erasable programmable read-only memory (EEPROM). The MAX31826 EV system includes the MAX31826 evaluation kit (EV kit) and the USB2PMB2 module. Windows® 7/8/8.1/10-compatible software provides a user-friendly interface that demonstrates the features of the MAX31826.

The MAX31826 EV kit contains an on-board DS2482 I2C to 1-Wire converter and comes with the 8-pin µMAX® MAX31826MUA+ installed.

Applications

  • Building Automation
  • Consumer Equipment
  • Industrial Systems
  • Module Identification
  • System Calibration

MAX31826EVSYS1

Evaluation Kit for the MAX31826

zoom

MAX31826EVSYS1

Evaluation Kit for the MAX31826

download icon

Download

 print icon

Print
MAX31826EVSYS1
Evaluation Kit for the MAX31826

Features and Benefits

  • On-Board I2C to 1-Wire Converter (DS2482)
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows XP®, Windows 7/8/8.1/10-Compatible Software
Buy Now View Details

Product Detail

The MAX31826 evaluation system (EV system) demonstrates the MAX31826 1-Wire® digital temperature sensor with 1kB lockable electrically erasable programmable read-only memory (EEPROM). The MAX31826 EV system includes the MAX31826 evaluation kit (EV kit) and the USB2PMB2 module. Windows® 7/8/8.1/10-compatible software provides a user-friendly interface that demonstrates the features of the MAX31826.

The MAX31826 EV kit contains an on-board DS2482 I2C to 1-Wire converter and comes with the 8-pin µMAX® MAX31826MUA+ installed.

Applications

  • Building Automation
  • Consumer Equipment
  • Industrial Systems
  • Module Identification
  • System Calibration

Evaluation Kits2

MAX31826EVKIT

Evaluation Kit for the MAX31826

MAX31826EVSYS1

Evaluation Kit for the MAX31826
